Technics RS-TR474 Service Manual

RS-TR474 |

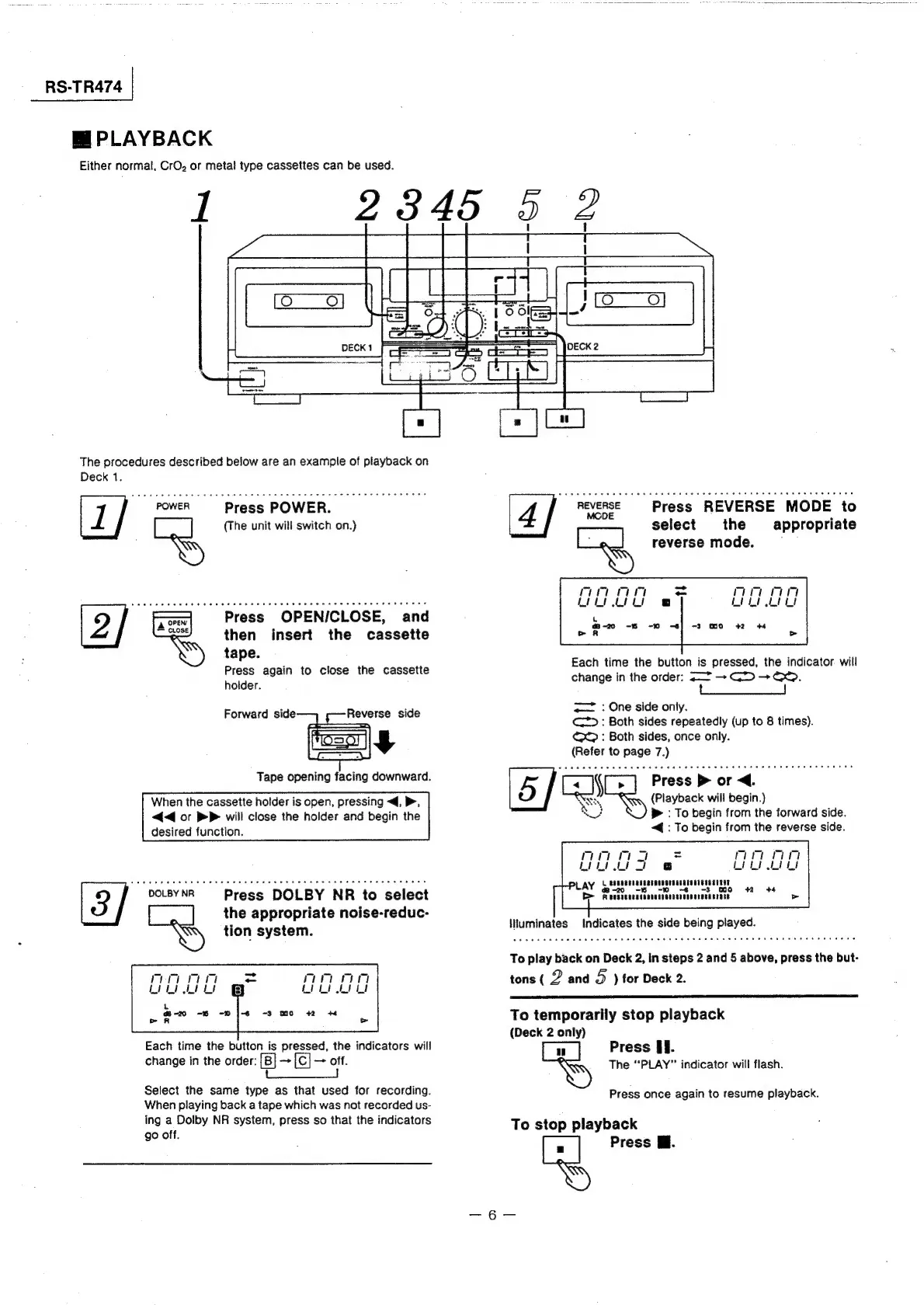

PLAYBACK
Either normal, CrO. or metal type cassettes can be used.
Deck 1.
1 POWER Press POWER.
Re (The unit will switch on.)
"==
""""'press
OPEN/CLOSE,
and
then
insert
the
cassette
SS
tape.
Press again to close the cassette
holder.
Forward side p—Reverse side
fea]
e
Tape opening facing downward.
When the cassette holder is open, pressing <q, >,
<q of DP will close the holder and begin the
desired function.
“"pogynk- Press DOLBY NR to select
the appropriate noise-reduc-
tion system.
Each time the button is pressed, the indicators will
change in the order: [B] — [C] — off.
tS
Select the same type as that used for recording.
When playing back a tape which was not recorded us-
ing a Dolby NR system, press so that the indicators
go off.
4 REVERSE Press REVERSE MODE to
MCDE *
select the appropriate
reverse mode.
Each time the button is pressed, the indicator will
change in the order: <7 +> GD + Gx.
rs
= : One side only.
C2> : Both sides repeatedly (up to 8 times).
&xX> : Both sides, once only.
(Refer to page 7.)
[< ff Press > or <.
NE (Playback will begin.)
QU > : To begin from the forward side.
<q : To begin from the reverse side.
mr
Lt
~~ fone ea)
may
Ah
CAUORENQOESERRSOEREGRESOTSIRCTROT
“6 -0 -6€ -3 WS +2 +4
ROSDERSAGSODUQDODSDOSbacecaEsatE >
\Huminates Indicates the side being played.
To play back on Deck 2, in steps 2 and 5 above, press the but-
tons ( 2 and D ) for Deck 2.
To temporarily stop playback
(Deck 2 only)
Press ff.
The “PLAY” indicator will flash.
Press once again to resume playback.
To stop playback
Press .

Technics RS-TR474 Specifications

General

Track System	4-track, 2-channel stereo
Tape Speed	4.8 cm/s
Frequency Response	20Hz to 17kHz (Metal tape)
Type	Cassette Deck
Heads	1 x Record/Playback, 1 x Erase
Motor	DC motor
Output	400mV (Line)
Dimensions	430 x 125 x 290mm
Power Supply	220-240V AC, 50Hz
