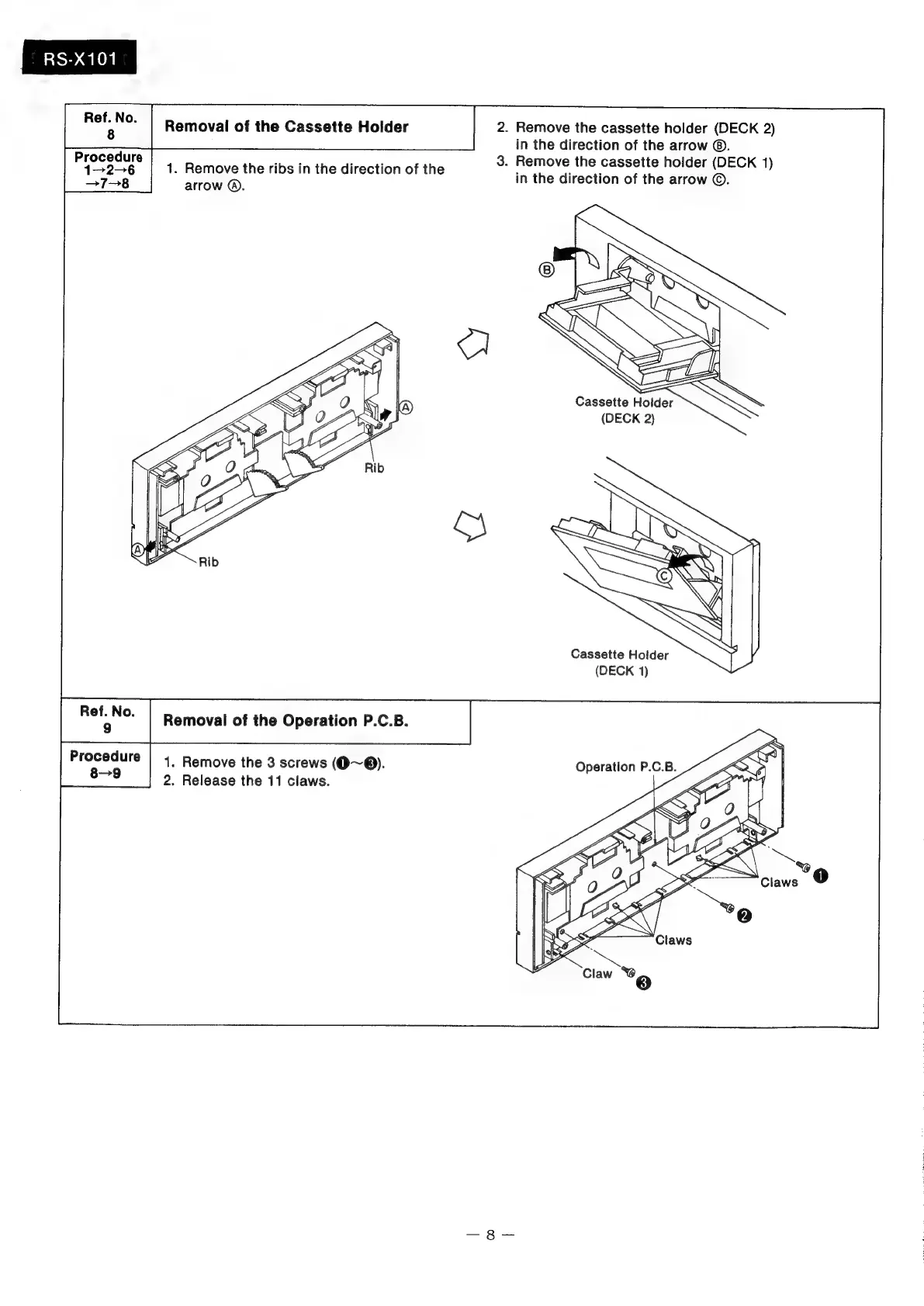

Technics RS-X101 Service Manual

RS-X101
Removal
of
the
Cassette
Holder
Procedure
1-2-6 1. Remove the ribs in the direction of the
—7-8 arrow @®.
2. Remove the cassette holder (DECK 2)
in the direction of the arrow ©.
3. Remove the cassette holder (DECK 1)
in the direction of the arrow ©.
Cassette Hoider
(DECK 2)
Cassette Holder
(DECK 1)
dias
Removal
of
the
Operation
P.C.B.
ieee
1.
Remove
the
3
screws
(O~®).
2. Release the 11 claws.

Technics RS-X101 Specifications

General

Brand	Technics
Model	RS-X101
Category	Cassette Player
Language	English
