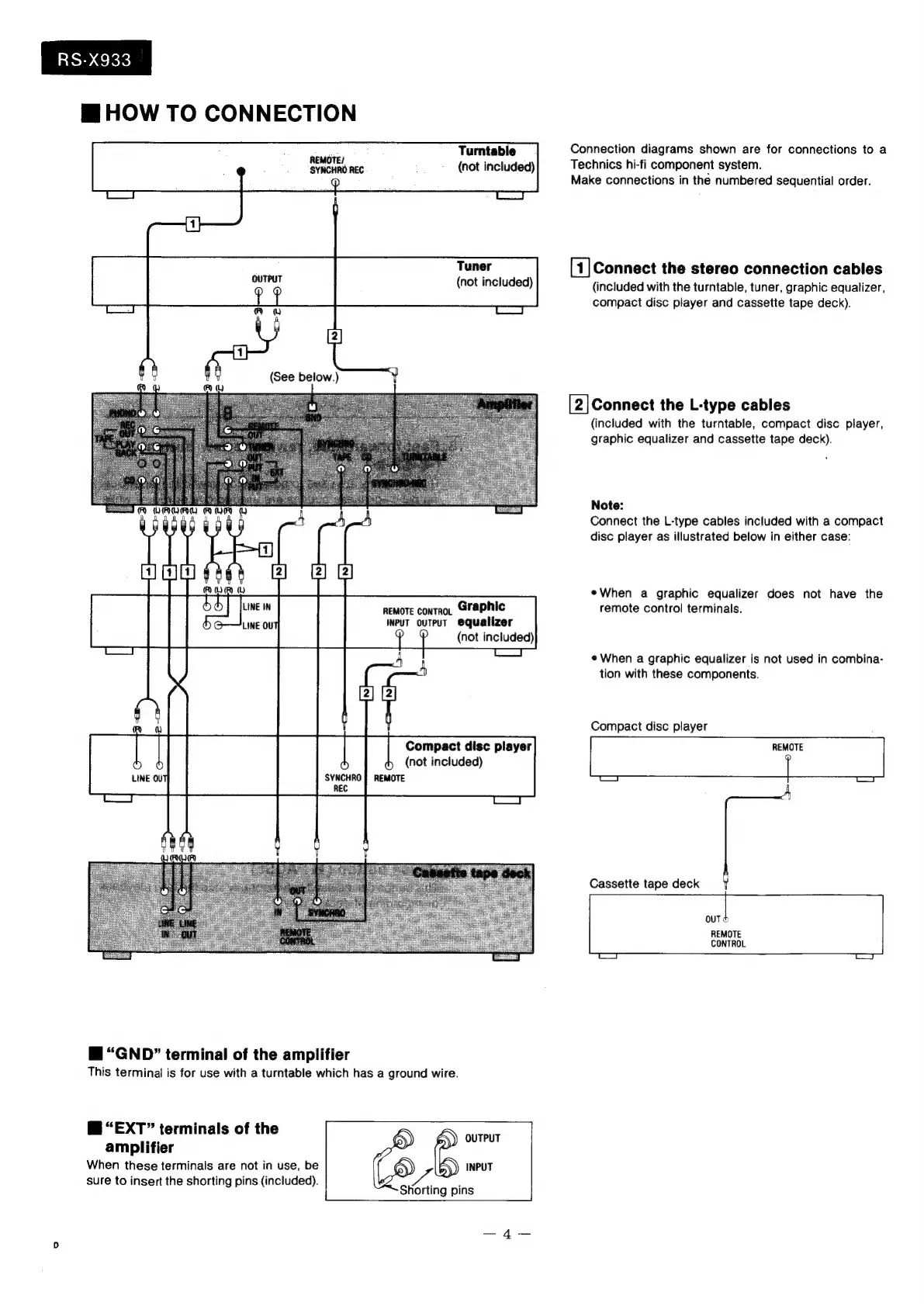

Mi HOW TO CONNECTION
Turntable
REMOTE/
syncurorecc §=—s(€“<S<sé‘ité‘é‘*é«sK Rt incl)
Tuner
(not included)
RH OMHURY AOR Y
goed n a
REmoTE contro. Graphic
INPUT OUTPUT equalizer
©) ‘0
(not included)
@ “GND?” terminal of the amplifier
This terminal is for use with a turntable which has a ground wire.
@ “EXT” terminals of the
amplifier
When these terminals are not in use, be INPUT
sure to insert the shorting pins (included).
OUTPUT
Shorting pins
Connection diagrams shown are for connections to a
Technics hi-fi component system.
Make connections in the numbered sequential order.
[1]Connect the stereo connection cables
(included with the turntable, tuner, graphic equalizer,
compact disc player and cassette tape deck).
[2]Connect the L-type cables
(included with the turntable, compact disc player,
graphic equalizer and cassette tape deck).
Note:
Connect the L-type cables included with a compact
disc player as illustrated below in either case:
eWhen a graphic equalizer does not have the
remote control terminals.
When a graphic equalizer is not used in combina-
tion with these components.
Compact disc player
REMOTE
17)
Cassette tape deck
OUT
REMOTE
CONTROL
