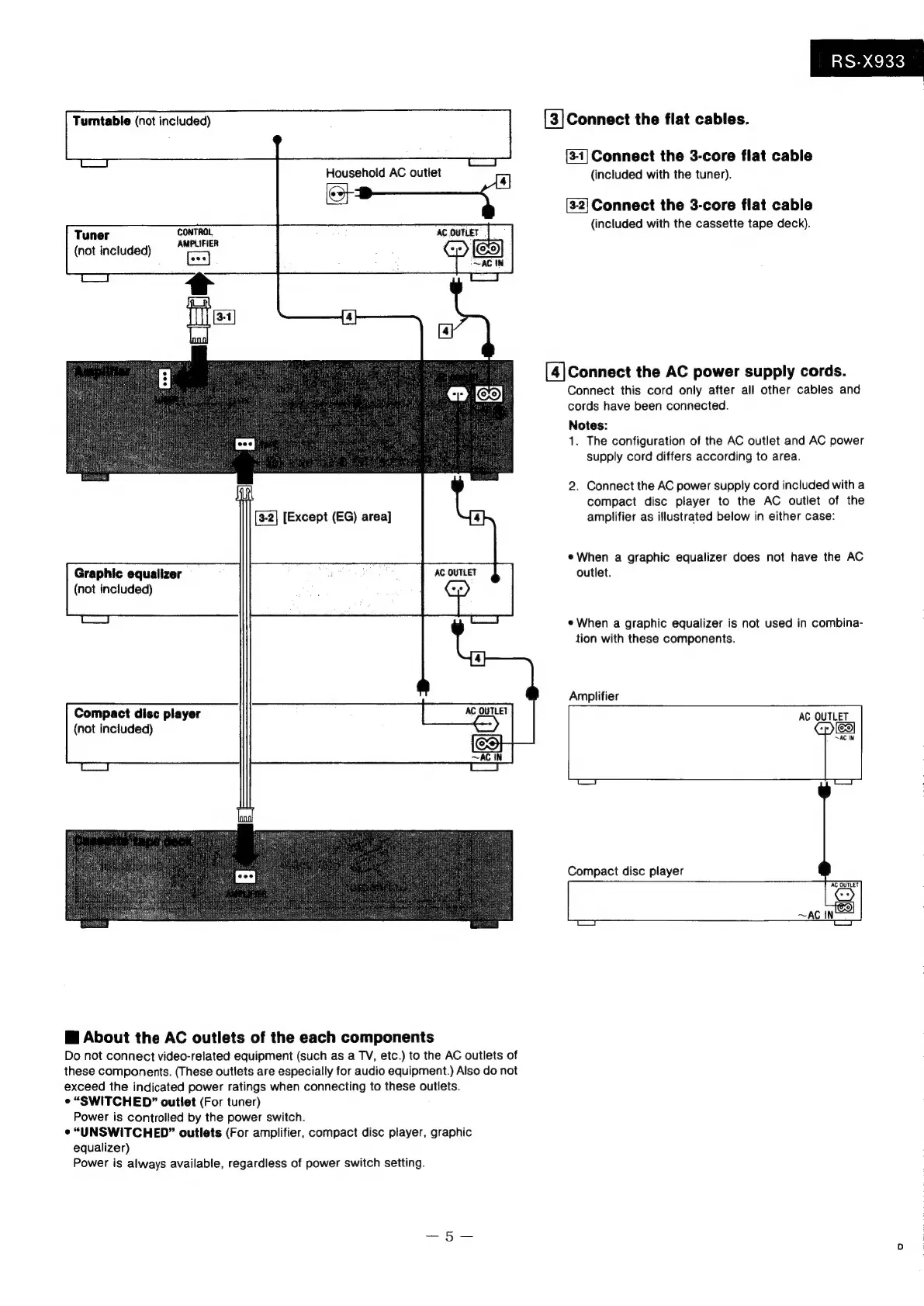

Technics RS-X933 User Manual

Turntable (not included)
Household AC outlet a]
AC OUTLET
CONTROL
AMPLIFIER
(e23]
fe
Tuner
(not included)
oXo)
~AC IN
[3-2] [Except (EG) area]
AC OUTLET
ee
Graphic equalizer
(not included)
Compact disc player
(not included)
AC OUTLET
°
@ About the AC outlets of the each components
Do not connect video-related equipment (such as a TV, etc.) to the AC outlets of
these components. (These outlets are especially for audio equipment.) Also do not
exceed the indicated power ratings when connecting to these outlets.
¢ “SWITCHED?” outlet (For tuner)
Power is controlled by the power switch.
¢ “UNSWITCHED” outlets (For amplifier, compact disc player, graphic
equalizer)
Power is always available, regardless of power switch setting.
RS-X933
[3-1] Connect the 3-core flat cable
(included with the tuner).
[3]Connect the flat cables.
[3-2] Connect the 3-core flat cable
{included with the cassette tape deck).
[4]Connect the AC power supply cords.
Connect this cord only after all other cables and
cords have been connected.
Notes:
1. The configuration of the AC outlet and AC power
supply cord differs according to area.
2. Connect the AC power supply cord included with a
compact disc player to the AC outlet of the
amplifier as illustrated below in either case:
When a graphic equalizer does not have the AC
outlet.
e When a graphic equalizer is not used in combina-
tion with these components.
Amplifier
AC OUTLET
~AC IN
Compact disc player
AC OUTLET
