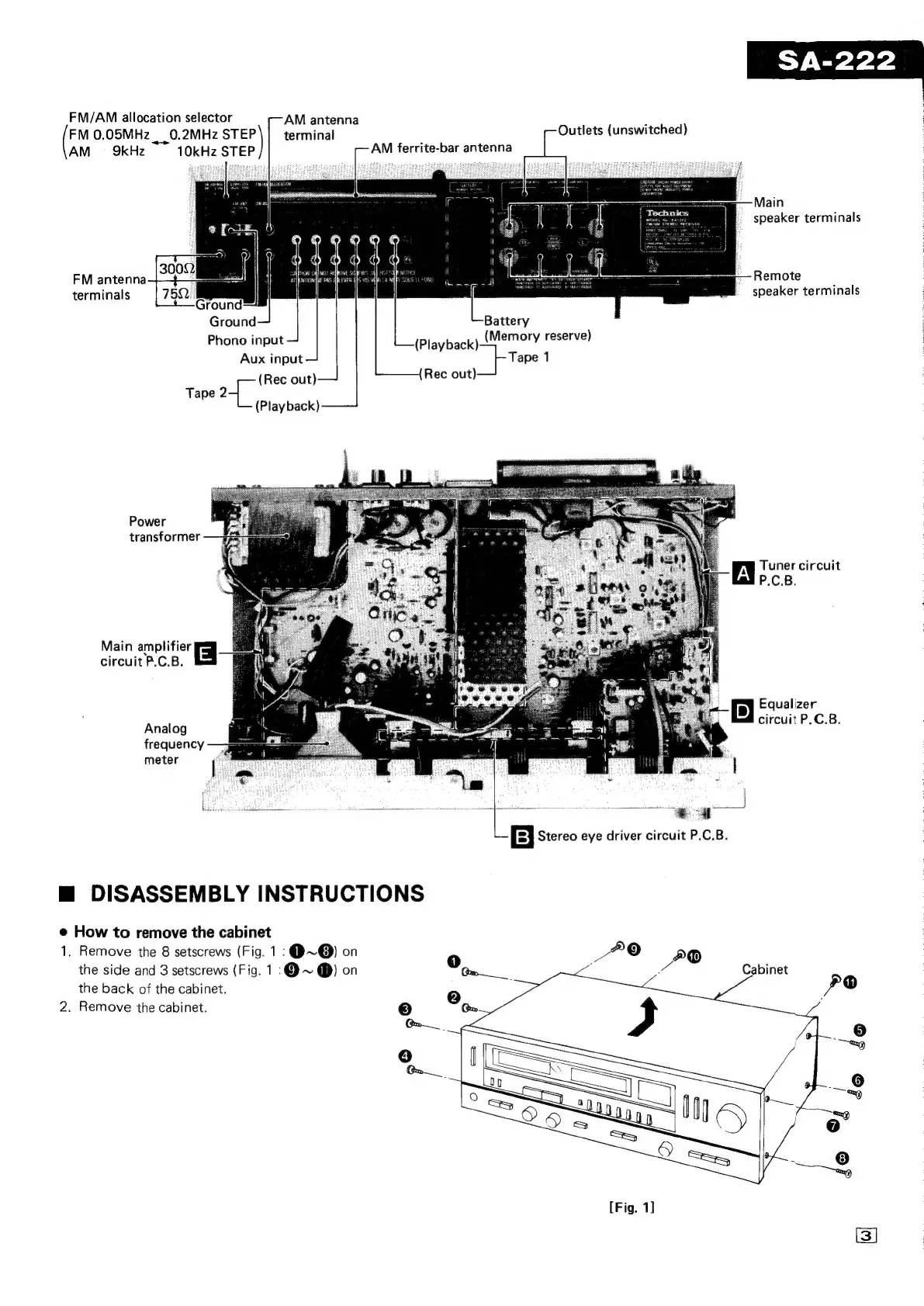

Technics SA-222 M Service Manual

FM/AM allocation selector AM antenna
FM 0.05MHz | 0.2MHz STEP terminal
AM = 9kHz 10kHz STEP
Outlets (unswitched)
AM ferrite-bar antenna
ep
m
-
ee
vain
speaker
terminals
FM
antenna
aw
Oe
qe
g
é
=
Remote
-
speaker
terminals
inals 75Q.
termina —
Ground
Battery
Phono
input
(Playback)
(Memory
reserve)
Aux
input
(Rec out)
Tape 24
(Playback)
Tape 1
(Rec out)
Power
transformer
Tuner circuit
P.C.B.
Main amplifier pk
circuitP.C.B. La
Equalizer
circuit P.C.B.
Analog
frequency
meter
ao
fz} Stereo eye driver circuit P.C.B.
m@ DISASSEMBLY INSTRUCTIONS
e How to remove the cabinet
1. Remove the 8 setscrews (Fig. 1: @~@®) on
the side and 3 setscrews (Fig. 1: @~ @) on
the back of the cabinet.
2. Remove the cabinet.
(Fig. 1]
