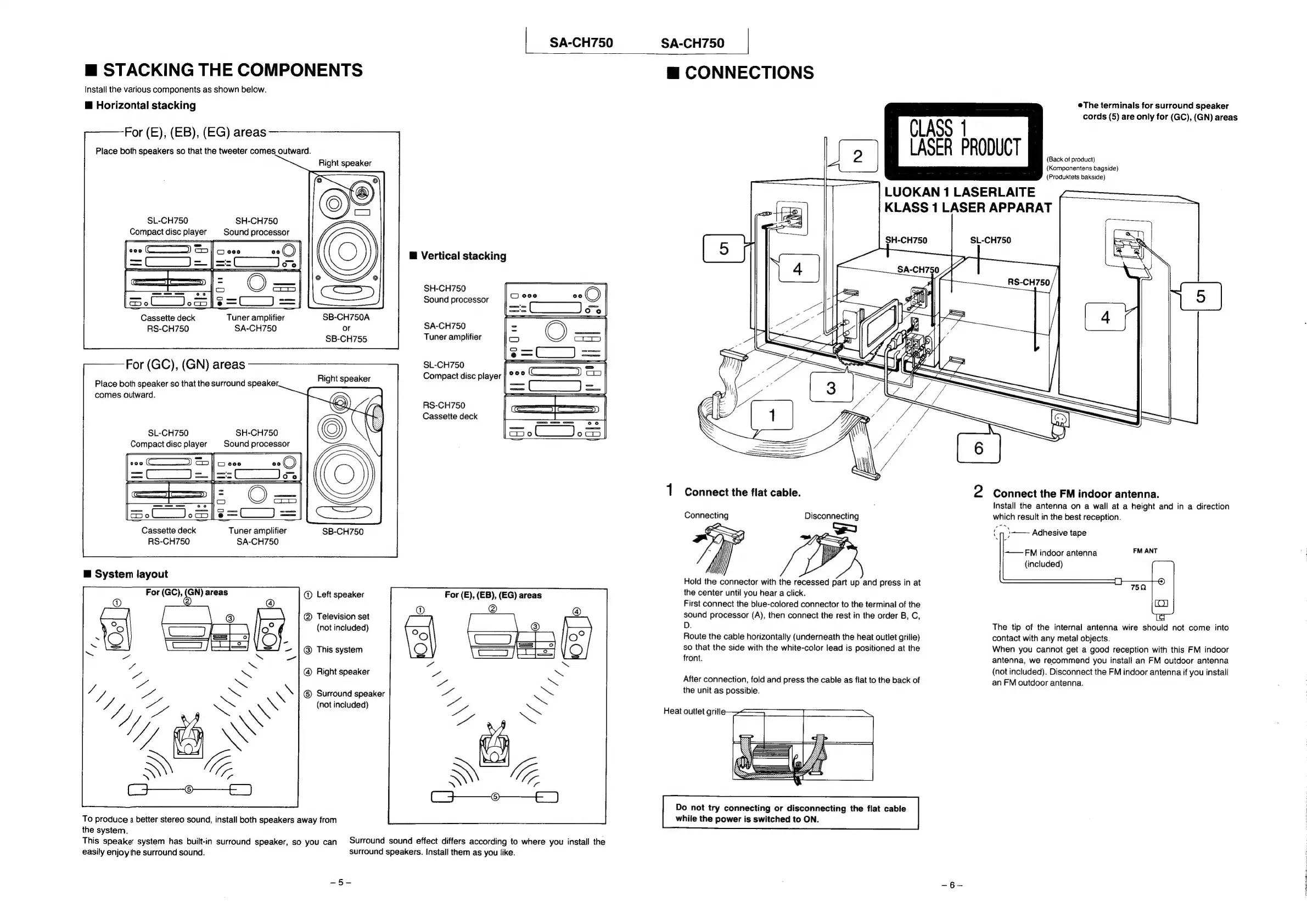

m CONNECTIONS
m STACKING THE COMPONENTS
Install the various components as shown below.
@ Horizontal stacking ©The terminals for surround speaker
cords (5) are only for (GC), (GN) areas
For (E), (EB), (EG) areas
Place both speakers so that the tweeter comes outward.
(Back of product)
{Komponentens bagside)
(Produktets bakside)
CLASS 1
[fa | LASER PRODUCT
T_] LUOKAN 14 LASERLAITE
KLASS 1 LASER APPARAT
Right speaker
SL-CH750
Compact disc player
SH-CH750
Sound processor
SH-CH750 SL-CH750 Bs
@ Vertical stacking
SH-CH750
Sound processor
Cassette deck Tuner amplifier SB-CH750A
RS-CH750 SA-CH750 or
SB-CH755
SA-CH750
Tuner amplifier
SL-CH750
Compact disc player
For (GC), (GN) areas
Place both speaker so that the surround speaker.
comes outward.
Right speaker
RS-CH750
Cassette deck
SL-CH750 SH-CH750
Compact disc player Sound processor
© eoo
= = | |S
1
Connect
the
fiat
cable.
2
Connect
the
FM
indoor
antenna.
Install the antenna on a wall at a height and in a direction
Connecting Disconnecting which result in the best reception.
Cassette
deck
Tuner
amplifier
SB-CH750
a
oa
=)
:
=
Adhesive
tape
RS-CH750 SA-CH750
—— FM indoor antenna PANT,
(included)
Hold the connector with the recessed part up and press in at
@ Left speaker For (E), (EB), (EG) areas the center until you hear a click.
First connect the blue-colored connector to the terminal of the
@ Television set
(not included)
® This system
sound processor (A), then connect the rest in the order B, C,
D.
Route the cable horizontally (underneath the heat outlet grille)
so that the side with the white-color lead is positioned at the
front.
After connection, fold and press the cable as flat to the back of
the unit as possible.
Led
The tip of the internal antenna wire should not come into
contact with any metal objects.
When you cannot get a good reception with this FM indoor
antenna, we recommend you install an FM outdoor antenna
(not included). Disconnect the FM indoor antenna if you install
an FM outdoor antenna.
Heat outlet grille
Do not try connecting or disconnecting the flat cable
while the power is switched to ON.
To produce a better stereo sound, install both speakers away from
the system. ;
This speaker system has built-in surround speaker, so you can Surround sound effect differs according to where you install the
easily enjoy the surround sound. surround speakers. Install them as you like.
