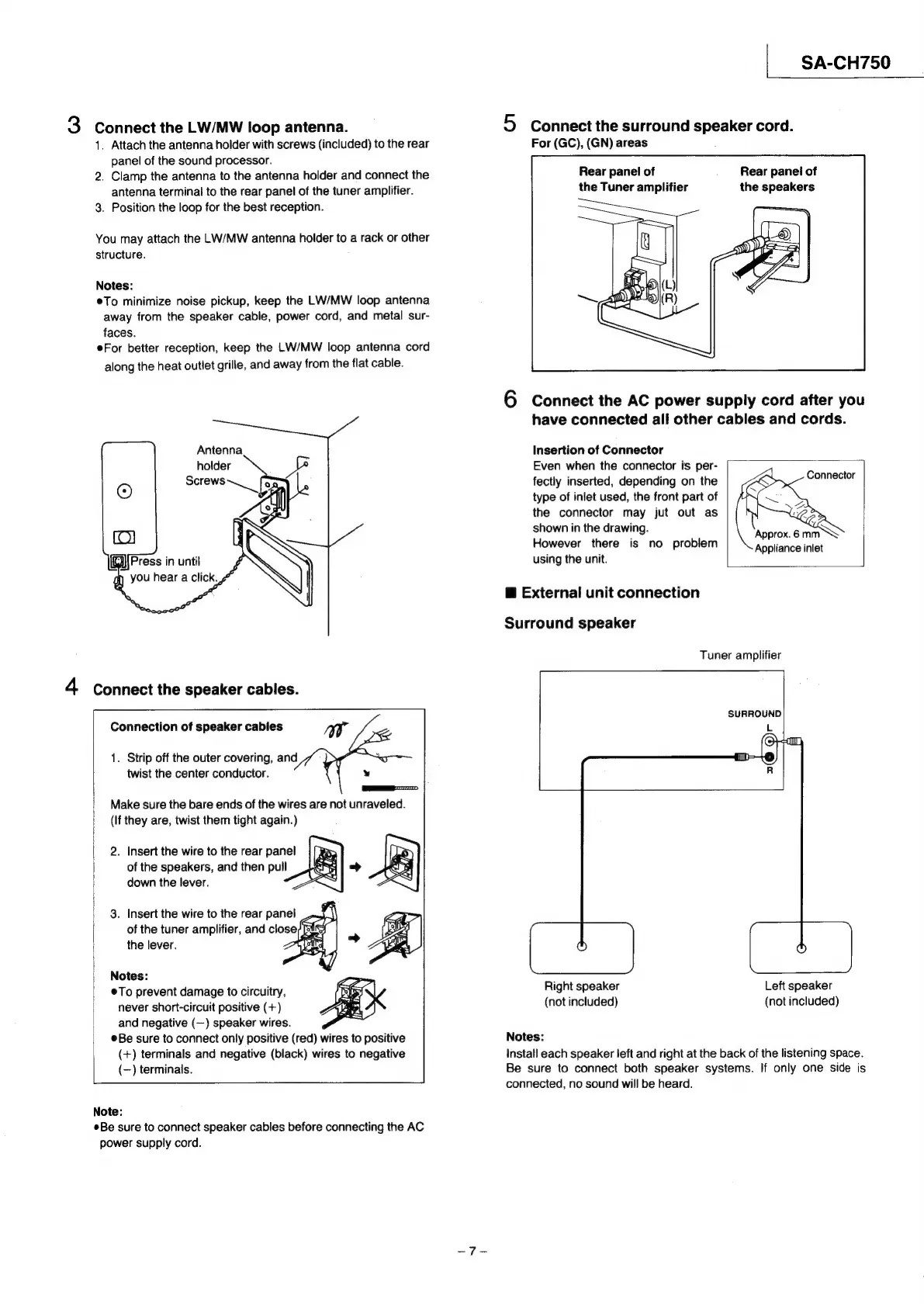

3
Connect
the
LW/MW
loop
antenna.
1.
Attach
the
antenna
holder
with
screws
(included)
to
the
rear
panel
of
the
sound
processor.
2.
Clamp
the
antenna
to
the
antenna
holder
and
connect
the
antenna
terminal
to
the
rear
panel
of
the
tuner
amplifier.
3.
Position
the
loop
for
the
best
reception.
You
may
attach
the
LW/MW
antenna
holder
to
a
rack
or
other
structure.
Notes:
To
minimize
noise
pickup,
keep
the
LW/MW
loop
antenna
away
from
the
speaker
cable,
power
cord,
and
metal
sur-
faces.
For
better
reception,
keep
the
LW/MW
loop
antenna
cord
along
the
heat
outlet
grille,
and
away
from
the
flat
cable.
Antenna
Connection
of
speaker
cables
1.
Strip
off
the
outer
covering,
and
twist
the
center
conductor.
Make
sure
the
bare
ends
of
the
wires
are
not
unraveled.
(If
they
are,
twist
them
tight
again.)
3.
Insert
the
wire
to
the
rear
panel
of
the
tuner
amplifier,
and
close
the
lever.
Notes:
©To
prevent
damage
to
circuitry,
never
short-circuit
positive
(+)
and
negative
(—)
speaker
wires.
eBe
sure
to
connect
only
positive
(red)
wires
to
positive
(+)
terminals
and
negative
(black)
wires
to
negative
(—)
terminals.
Note:
Be
sure
to
connect
speaker
cables
before
connecting
the
AC
power
supply
cord.
2.
Insert
the
wire
to
the
rear
panel
of
the
speakers,
and
then
pull
»>
down
the
lever.
SA-CH750
5
Connect
the
surround
speaker
cord.
For
(GC),
(GN)
areas
Rear
panel
of
Rear
panel
of
the
Tuner
amplifier
the
speakers
6
Connect
the
AC
power
supply
cord
after
you
have
connected
all
other
cables
and
cords.
Insertion
of
Connector
Even
when
the
connector
is
per-
fectly
inserted,
depending
on
the
type
of
inlet
used,
the
front
part
of
the
connector
may
jut
out
as
shown
in
the
drawing.
However
there
is
no
problem
using
the
unit.
Connector
Approx.
6
mm
Appliance
inlet
@
External
unit
connection
Surround
speaker
Tuner
amplifier
Right
speaker
Left
speaker
(not
included)
(not
included)
Notes:
Install
each
speaker
left
and
right
at
the
back
of
the
listening
space.
Be
sure
to
connect
both
speaker
systems.
If
only
one
side
is
connected,
no
sound
will
be
heard.
