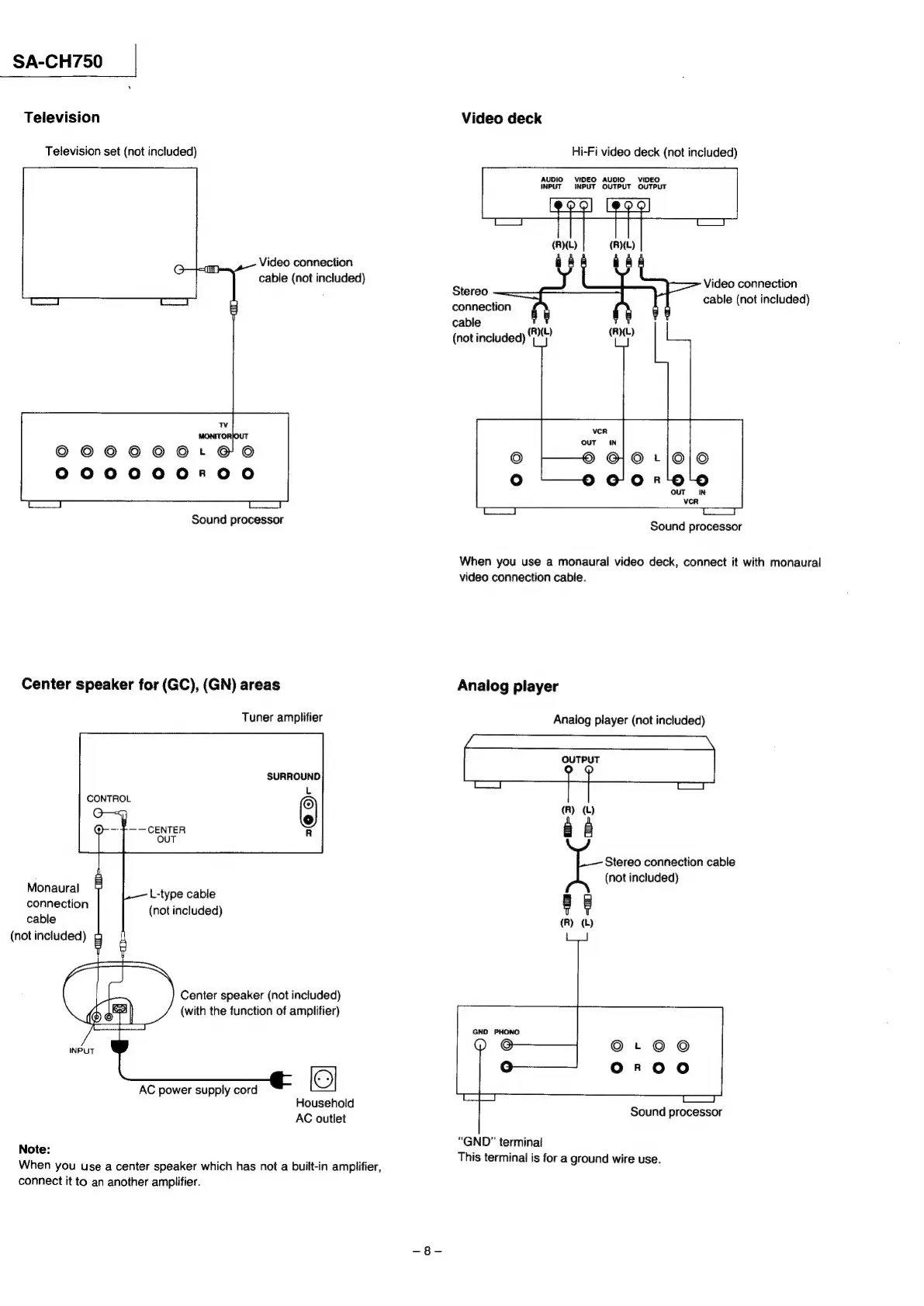

SA-CH750
Television
Television set (not included)
Video connection
cable (not included)
Sound processor
Center speaker for (GC), (GN) areas
Tuner amplifier
CONTROL
Monaural
L-type
cable
connection
(not
included)
cable
(not included)
Center speaker (not included)
(with the function of amplifier)
Household
AC outlet
AC power supply cord
Note:
When you use a center speaker which has not a built-in amplifier,
connect it to an another amplifier.
Video deck
Hi-Fi video deck (not included)
AUDIO VIDEO AUDIO VIDEO
INPUT =INPUT OUTPUT OUTPUT
(R)(L) (R)(L)
a6 ba
St
Video
connection
peaeags
cable
(not
included)
cable
Al
8
(R)(L) (R(L)
(not included)
Sound processor
When you use a monaural video deck, connect it with monaural
video connection cable.
Analog player
Analog player (not included)
OUTPUT
=
R) (L)
Stereo connection cable
(not included)
) 3
(L)
Sound processor
“GND” terminal
This terminal is for a ground wire use.
