Technics SA-CH750

SA-CH750 |

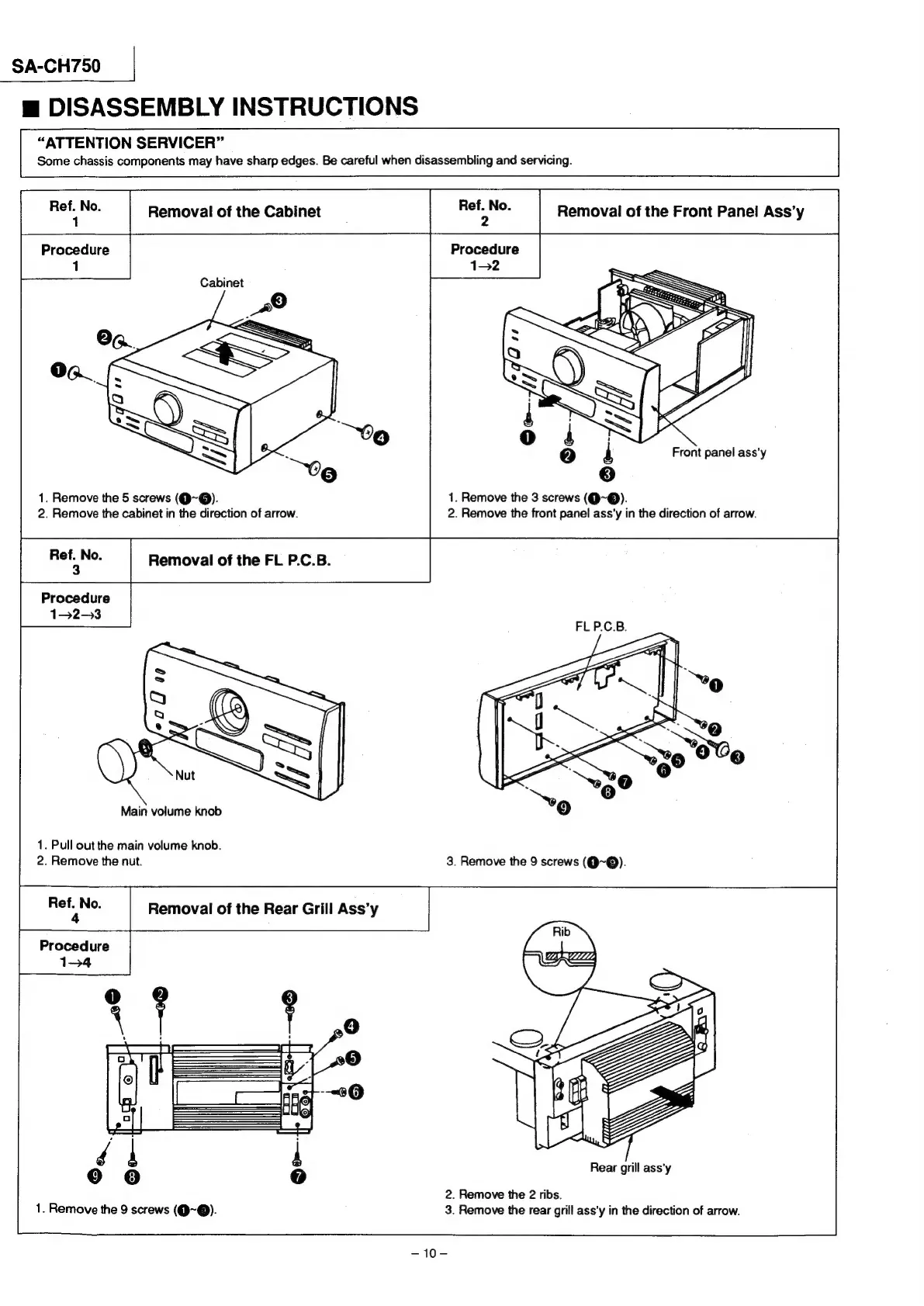

m@ DISASSEMBLY INSTRUCTIONS
“ATTENTION SERVICER”
Some chassis components may have sharp edges. Be careful when disassembling and servicing.
Removal of the Cabinet Ec Removal of the Front Panel Ass’y
1
Cabinet
1. Remove the 5 screws (@~@). 1. Remove the 3 screws (@~@).
2. Remove the cabinet in the direction of arrow. 2. Remove the front panel ass’y in the direction of arrow.
Main volume knob
1. Pull out the main volume knob.
2. Remove the nut.
Removal of the Rear Grill Ass’y
Procedure
154
Rear grill ass'y
2. Remove the 2 ribs.
1. Remove the 9 screws (@~@). 3. Remove the rear grill ass’y in the direction of arrow.
