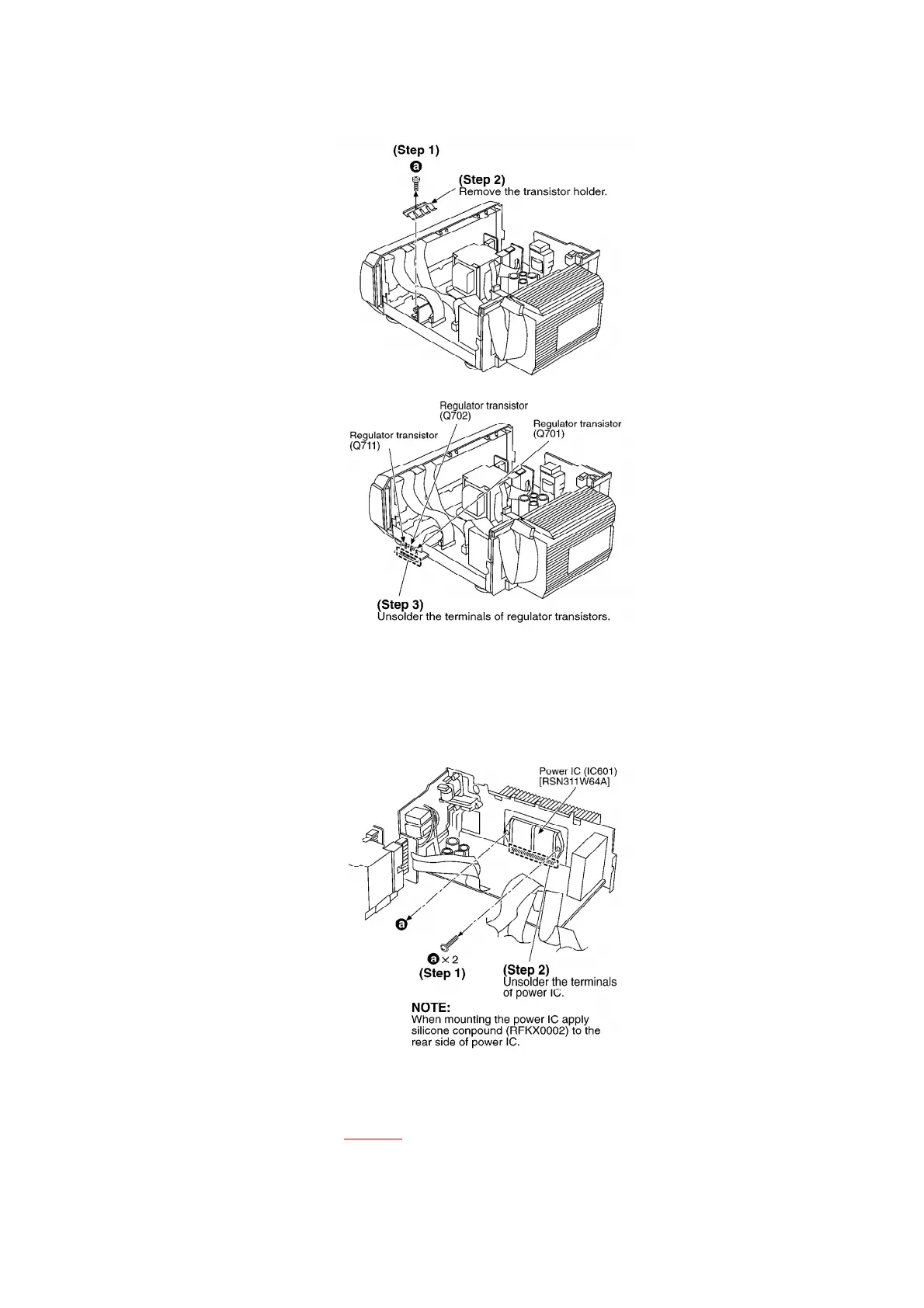

5.5. Replacement for the power IC
- Follow the (Step 1) - (Step 3) of item 5.1.
- Follow the (Step 1) - (Step 6) of item 5.2.
- Follow the (Step 1) - (Step 10) of item 5.3.
6. To Supply Power Source
This unit SA-EH670 is designed to operate on power supplied from system connected. / For
system connection, refer to Fig. 6-1.
Fig. 6-1.
8
