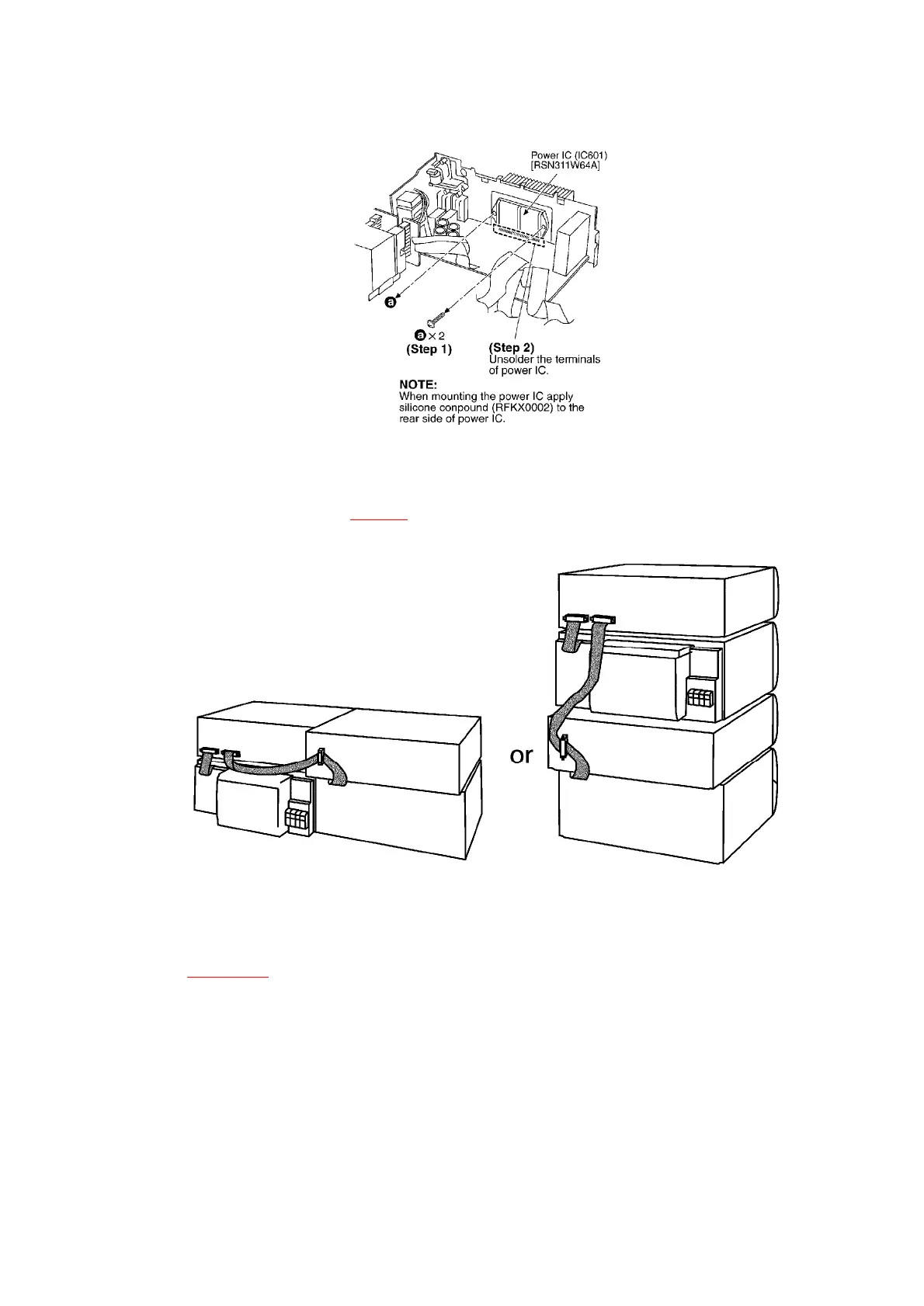

6. To Supply Power Source
This unit SA-EH760 is designed to operate on power supplied form system connected. / For
system connections, refer to Fig. 6-1.
Fig. 6-1.
When the unit SA-EH760 has to test and service alone, use the following method to supply power
source.
1. Short the section between W902A Pin 3 and C740 (-) (GND). Refer
to Fig. 6-2.
2. Connect this unit to an AC power supply cord. / (This unit come to
stand-by mode.)
3. Turn the unit ON.
Fig. 6-2.
10
