Notes:

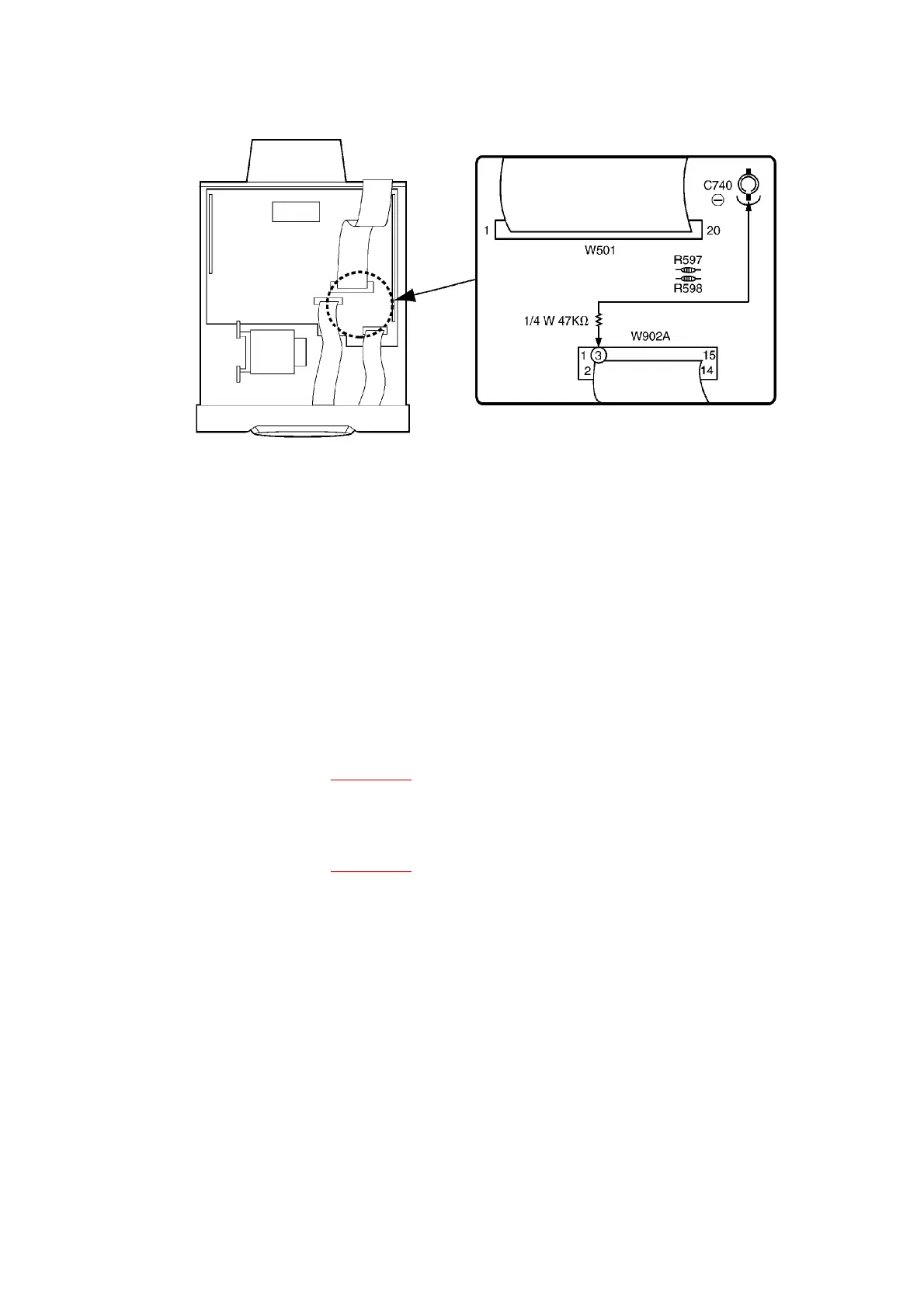

Use only this method when checking the voltage etc.. / In case of
checking operations, use the system connections to supply power
source.
7. Self-Diagnostic Function
This unit is equipped with a self-diagnostic function which, in the event of a malfunction,
automatically displays a code indicating the nature of the malfunction.
Use this self-diagnostic function when servicing the unit.
7.1. To display the malfunction code
U70 CD: / U70 DECK:
Automatically displays on the tuner/amplifier when a malfunction
occurs. Refer to Fig. 7-1.
F61:
Automatically displays on the tuner/amplifier when a malfunction
occurs. Refer to Fig. 7-1.
Fig. 7-1.
11
