Technics SA-EH790E - Replacement for the Power IC; To Supply Power Source

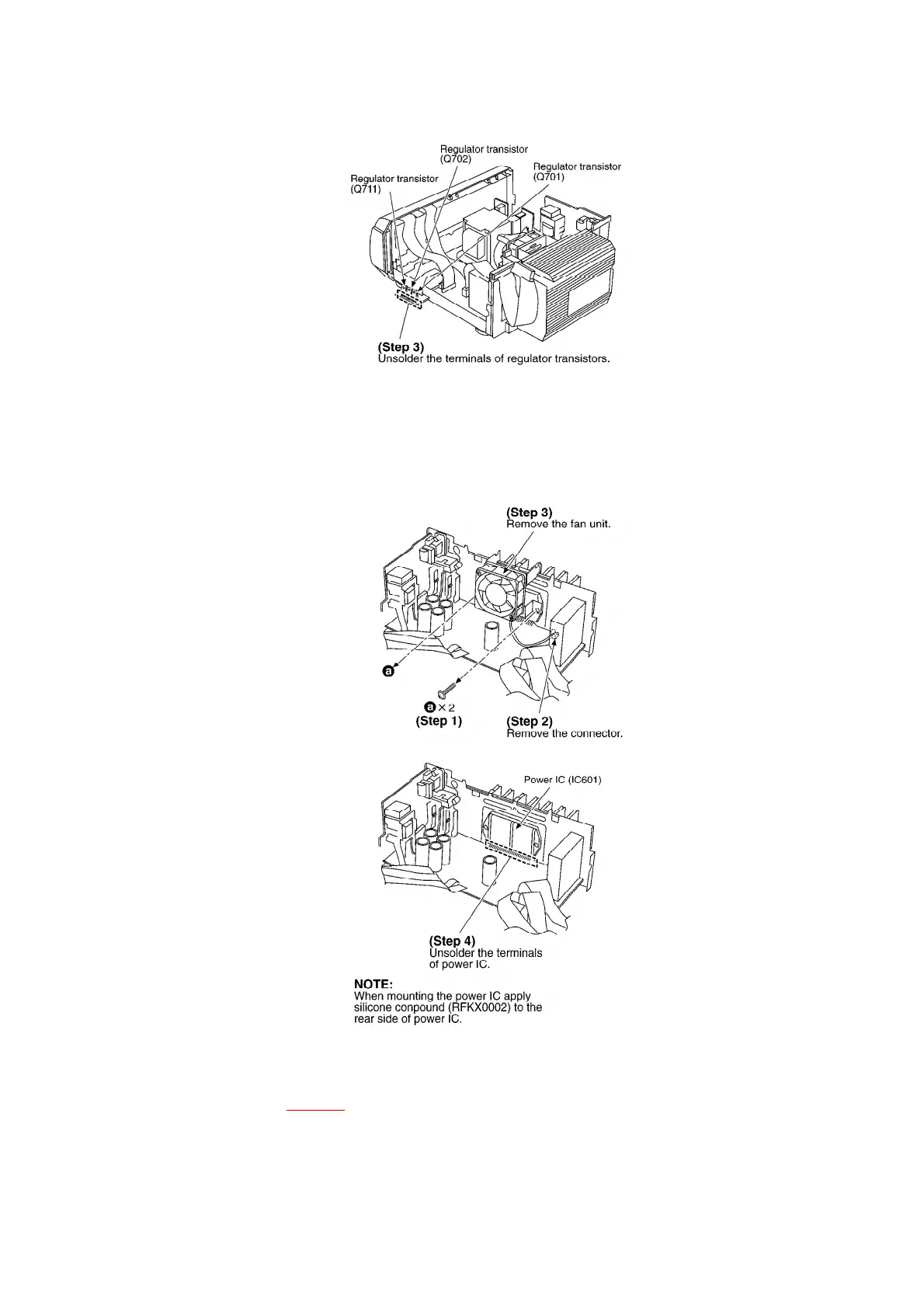

6.5. Replacement for the power IC
- Follow the (Step 1) - (Step 3) of item 6.1.
- Follow the (Step 1) - (Step 6) of item 6.2.
- Follow the (Step 1) - (Step 10) of item 6.3.
7. To Supply Power Source
This unit is designed to operate on power supplied from system connected. / For system
connection, refer to Fig. 7-1.
Fig. 7-1.
12
