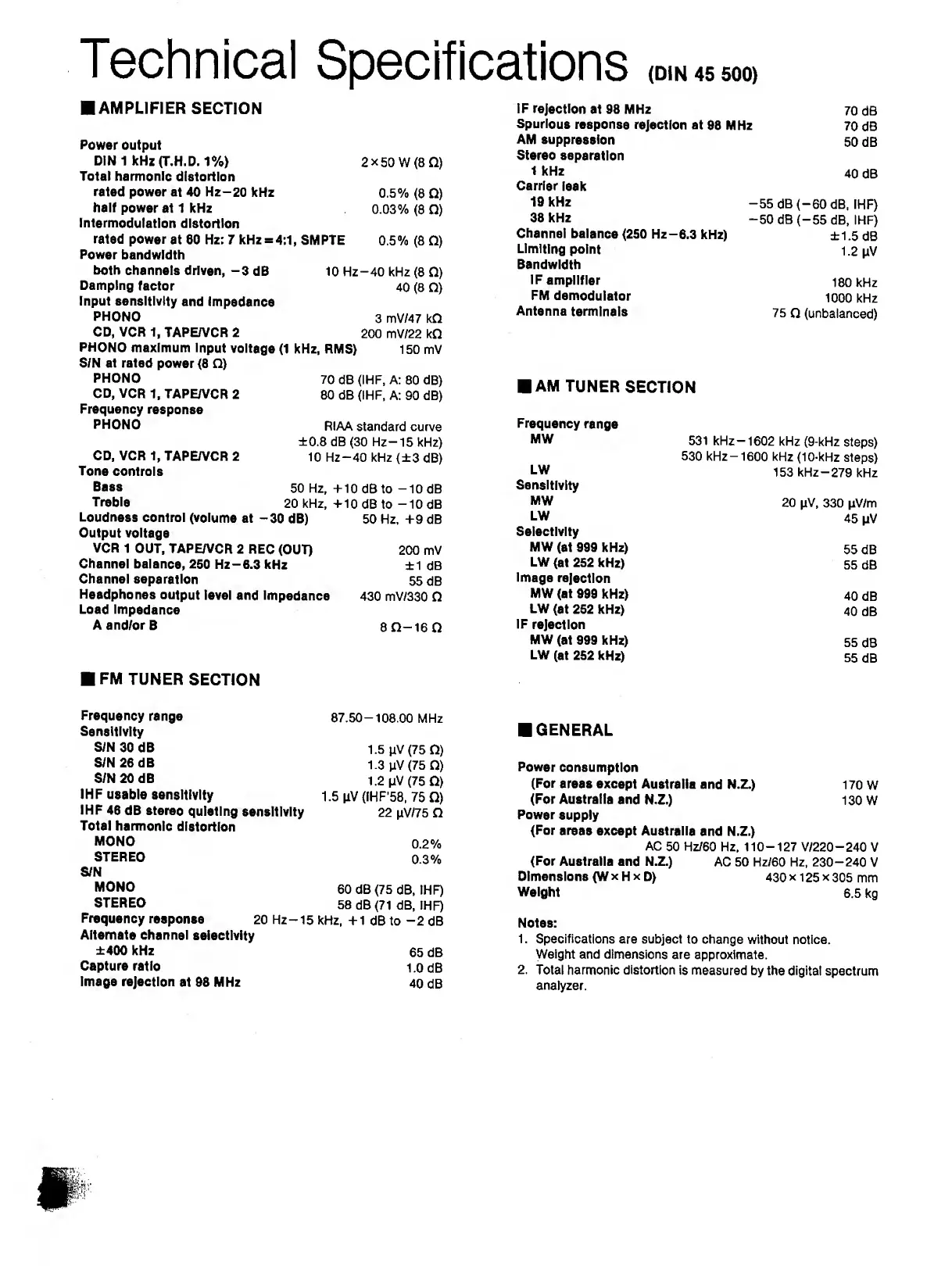

Technics SA-GX130D User Manual

Technical Specifications (DIN 45 500)
AMPLIFIER SECTION
Power output
DIN 1 kHz (T.H.D. 1 %) 2 x 50 W (8 ft)
Total harmonic distortion
rated power at 40 Hz-20 kHz 0.5% (8 ft)
half power at 1 kHz 0.03% (8 ft)
Intermodulation distortion
rated power at 60 Hz: 7 kHz = 4:1, SMPTE 0.5 % (8 ft)
Power bandwidth
both channels driven, -3 dB 10 Hz-40 kHz (8 ft)
Damping factor 40 {8 ft)
Input sensitivity and impedance
PHONO 3 mV/47 kft
CD, VCR 1, TAPE/VCR 2 200 mV/22 kft
PHONO maximum input voltage (1 kHz, RMS) 150 mV
S/N at rated power (8 ft)
PHONO
CD, VCR 1, TAPE/VCR 2
Frequency response
PHONO
•30 dB)
CD, VCR 1, TAPE/VCR 2
Tone controls
Bass
Treble
Loudness control (volume at
Output voltage
VCR 1 OUT, TAPE/VCR 2 REC (OUT)
Channel balance, 250 Hz-6.3 kHz
Channel separation
Headphones output level and impedance
Load Impedance
A and/or B
70 dB (1HF, A: 80 dB)
80 dB (IHF, A: 90 dB)
RIAA standard curve
±0.8 dB (30 Hz-15 kHz)
10 Hz-40 kHz (±3 dB)
50 Hz, ±10 dB to -10 dB
20 kHz, ±10 dB to -10 dB
50 Hz, ±9 dB
200 mV
±1 dB
55 dB
430 mV/330 ft
8 ft —16 ft
■ FM TUNER SECTION
IF rejection at 98 MHz
70 dB
Spurious response rejection at 98 MHz
70 dB
AM suppression
50 dB
Stereo separation
1 kHz
40 dB
Carrier leak
19 kHz
•55 dB (—60 dB, IHF)
38 kHz
■ 5 0 dB (-55 dB, IHF)
Channel balance (250 Hz-6.3 kHz)
±1.5 dB
Limiting point
1.2 pV
Bandwidth
IF amplifier
180 kHz
FM demodulator
1000 kHz
Antenna terminals
75 ft (unbalanced)
■ AM TUNER SECTION
Frequency range
MW
LW
Sensitivity
MW
LW
Selectivity
MW (at 999 kHz)
LW (at 252 kHz)
Image rejection
MW (at 999 kHz)
LW (at 252 kHz)
IF rejection
MW (at 999 kHz)
LW (at 252 kHz)
531 kHz-1602 kHz (9-kHz steps)
530 kHz-1600 kHz (10-kHz steps)
153 kHz-279 kHz
20 pV, 330 pV/m
45 pV
55 dB
55 dB
40 dB
40 dB
55 dB
55 dB
Frequency range
87.50-108.00 MHz
Sensitivity
S/N 30 dB
1.5 pV (75 ft)
S/N 26 dB
1.3 pV (75 ft)
S/N 20 dB
1.2 pV (75 ft)
IHF usable sensitivity
1.5 pV (IHF'58, 75 ft)
IHF 46 dB stereo quieting sensitivity
22 pV/75 ft
Total harmonic distortion
MONO
0.2%
STEREO
0.3%
S/N
MONO
60 dB (75 dB, IHF)
STEREO
58 dB (71 dB, IHF)
Frequency response 20 Hz -15 kHz, ± 1 dB to -2 dB
Alternate channel selectivity
±400 kHz
65 dB
Capture ratio
1.0 dB
Image rejection at 98 MHz
40 dB
■ GENERAL
Power consumption
(For areas except Australia and N.Z.) 170 W
(For Australia and N.Z.) 1 30 W
Power supply
(For areas except Australia and N.Z.)
AC 50 Hz/60 Hz, 110-127 V/220-240 V
(For Australia and N.Z.) AC 50 Hz/60 Hz, 230-240 V
Dimensions (WxHxD) 430x 125x305 mm
Weight 6.5 kg
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.

Technics SA-GX130D Specifications

General

Brand	Technics
Model	SA-GX130D
Category	Stereo Receiver
Language	English
