Connections
(continued)

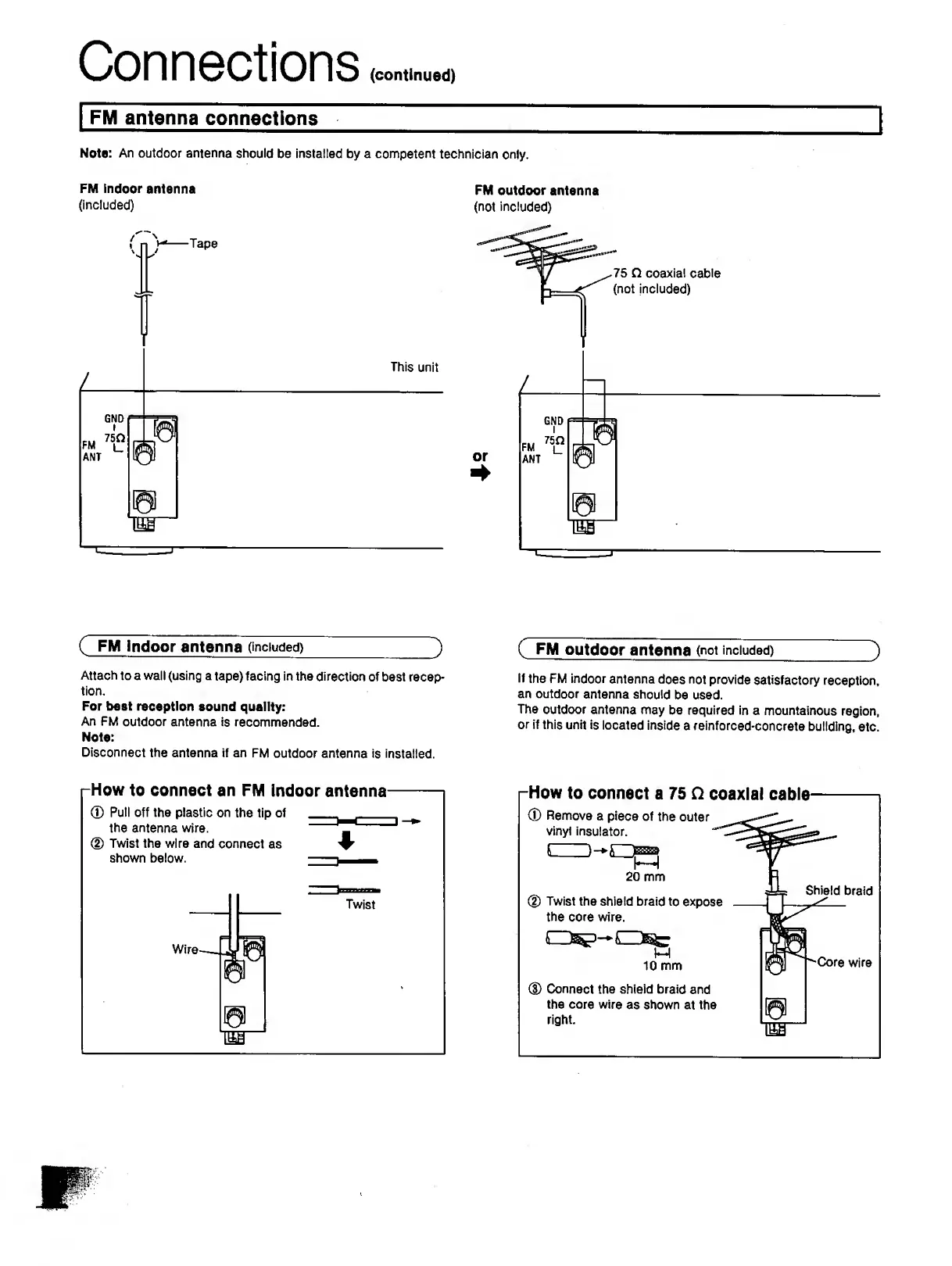

FM antenna connections
Not®: An outdoor antenna should be installed by a competent technician only.
FM indoor antenna
(included)
FM outdoor antenna
(not included)
75 O coaxial cable
(not included)
This unit
GND
FM
ANT
Attach to a wall (using a tape) facing in the direction of best recep¬
tion.
For best reception sound quality:
An FM outdoor antenna is recommended.
Note:
Disconnect the antenna if an FM outdoor antenna is installed.
If the FM indoor antenna does not provide satisfactory reception,
an outdoor antenna should be used.
The outdoor antenna may be required in a mountainous region,
or if this unit is located inside a reinforced-concrete building, etc.
-How to connect an FM indoor antenna
(D Puli off the plastic on the tip of
the antenna wire. “
(D Twist the wire and connect as ▼
shown below. -
-How to connect a 75 Q coaxial cable-
(D Remove a piece of the outer ^.
vinyl insulator.
Twist the shield braid to expose
the core wire.
(D Connect the shield braid and
the core wire as shown at the
right.
Shield braid
Core wire
