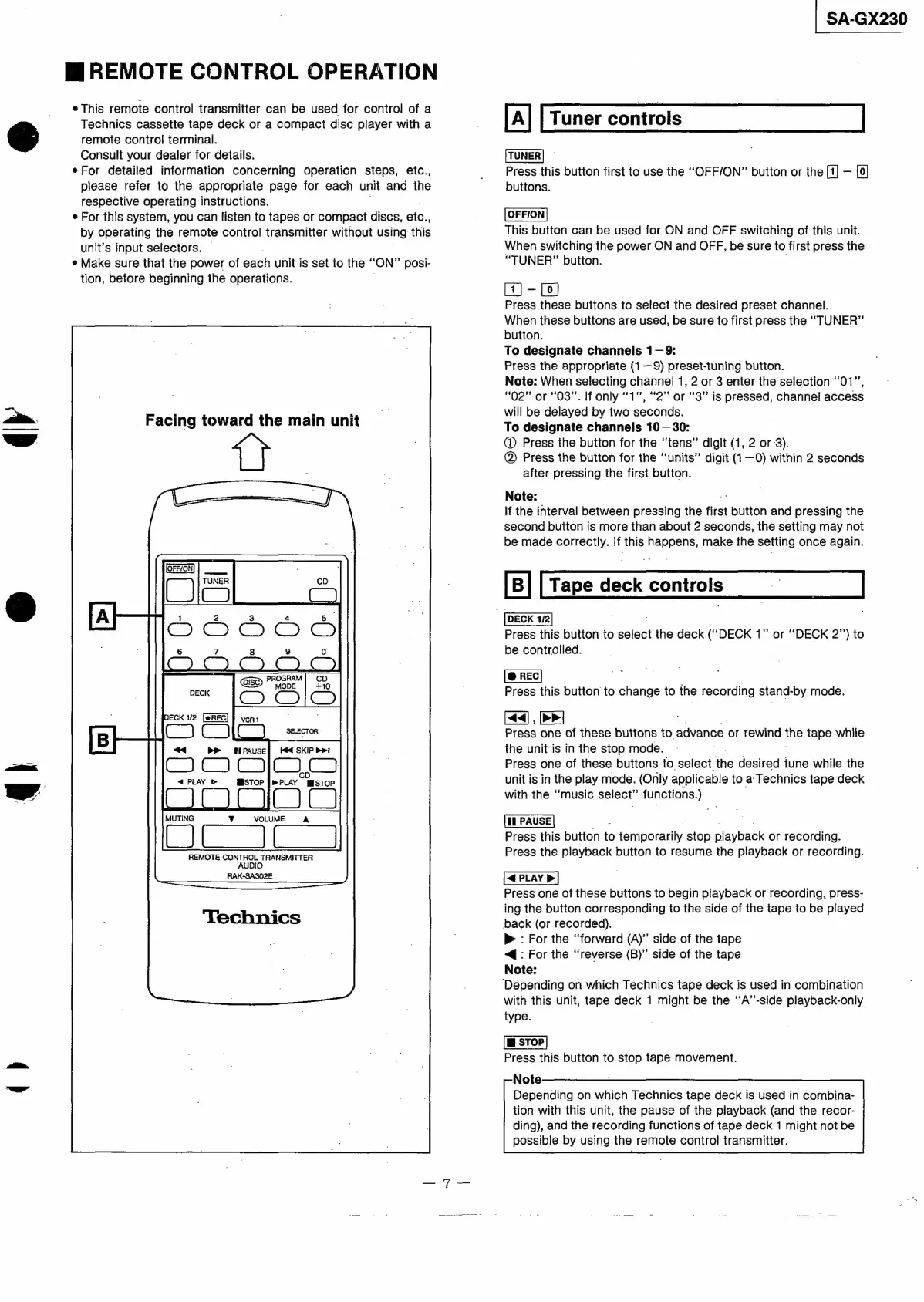

Ш REMOTE CONTROL OPERATION
* This remote control transmitter can be used for control of a
Technics cassette tape deck or a compact disc player with a
remote control terminal.
Consult your dealer for details.
e For detailed information concerning operation steps, etc.,
please refer to the appropriate page for each unit and the
respective operating instructions.
® For this system, you can listen to tapes or compact discs, etc.,
by operating the remote control transmitter without using this
unit's input selectors. -
* Make sure that the power of each unit is set to the "ON" posi-
tion, before beginning the operations.
. Facing toward the main unit
TUNER CD
Bias E
1 5
ЕСЕН
с»
BE
REMOTE CONTROL TRANSMITTER
AUDIO
RAK-SA302E
Technics
| SA-GX230
[A][Tunercontrols ^ ^ ^ 1—
|
Press
this
button
first
to
use the
"OFF/ON"
button
or
the
[1]
—
[o]
buttons.
This button can be used for ON and OFF switching of this unit.
When switching the power ON and OFF, be sure to first press the
“TUNER” button.
[1] — [0]
Press these buttons to select the desired preset channel.
When these buttons are used, be sure to first press the "TUNER"
button.
To designate channels 1—9:
Press the appropriate (1—9) preset-tuning button.
Note: When selecting channel 1, 2 or 3 enter the selection "O1",
“02” or “03”. If only “1”, "2" or "3" is pressed, channel access
will be delayed by two seconds.
To designate channels 10—30:
(D Press the button for the “tens” digit (1, 2 or 3).
@ Press the button for the "units" digit (1-0) within 2 seconds
after pressing the first button.
Note:
If the interval between pressing the first button and pressing the
second button is more than about 2 seconds, the setting may not
be made correctly. n this Шы make the setting once again.
[B] [Tape deck controls ( Tape deck controls
|
Press this button to select the deck ("DECK 1” or "DECK 2") to
be controlled.
Press this button to change to the recording stand-by mode.
[<<], [>>].
Press one of these buttons to. advance. or rewind the tape while
the unit is in the stop mode.
Press one of these buttons to select the desired tune while the
unit is in the play mode. (Only applicable to a Technics tape deck
with the “music select” functions.)
Press this button to temporarily stop playback or recording.
Press the playback button to resume the playback or recording.
Press one of these buttons to begin playback or recording, press-
ing the button corresponding to the side of the tape to be played
back (or recorded).
> : For the “forward (А)" side of the tape
«4 : For the “reverse (В)” side of the tape
Note:
Depending on which Technics tape deck is used in combination
with this unit, tape deck 1 might be the "A"-side playback-only
type.
Press this button to stop tape movement.
Note
Depending on which Technics tape deck is used in combina-
tion with this unit, the pause of the playback (and the recor-
ding), and the recording functions of tape deck 1 might not be
possible by using the remote control transmitter.
