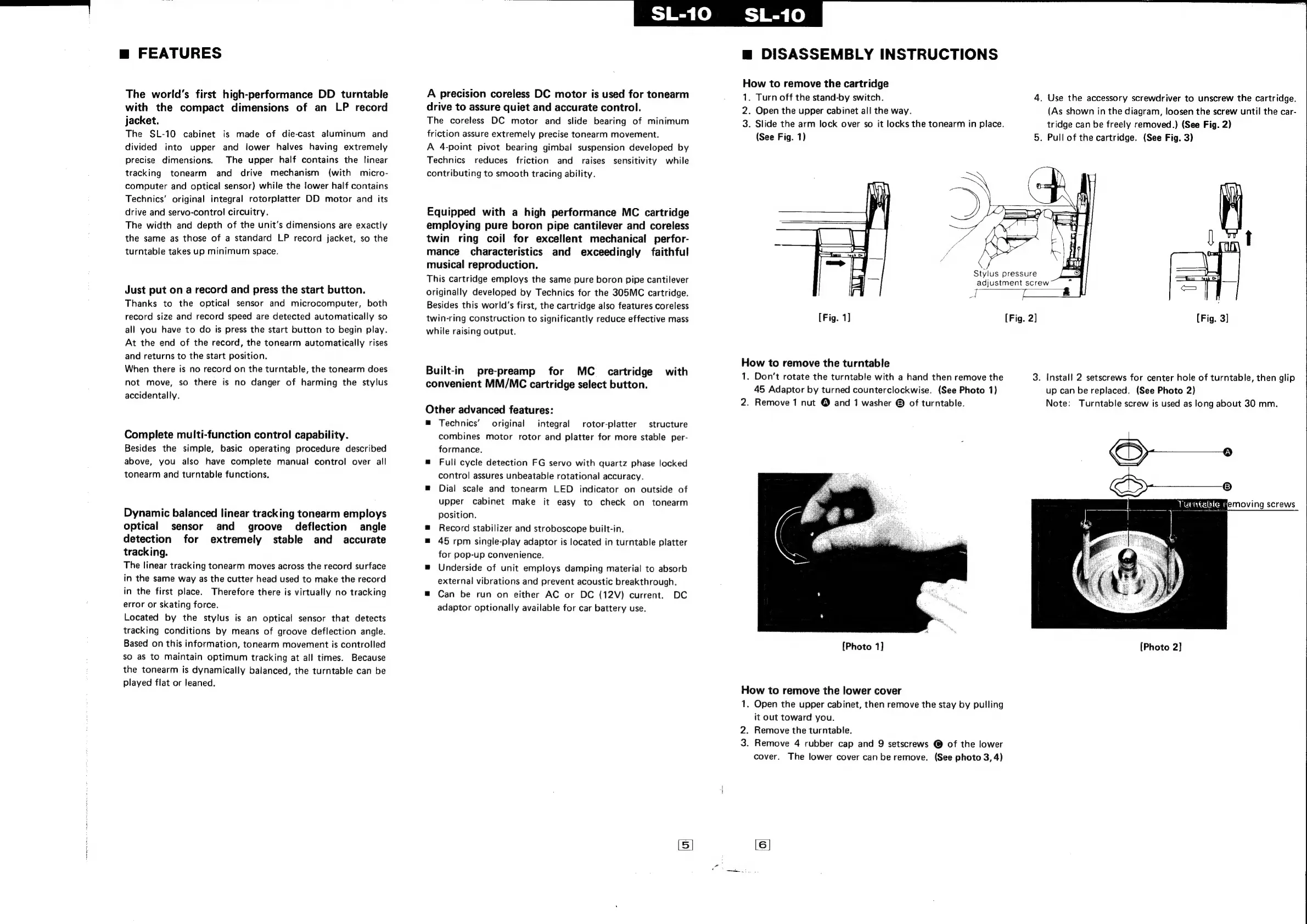

m FEATURES
The world’s first high-performance DD turntable
with the compact dimensions of an LP record
jacket.
The SL-10 cabinet is made of die-cast aluminum and
divided into upper and lower halves having extremely
precise dimensions. The upper half contains the linear
tracking tonearm and drive mechanism (with micro-
computer and optical sensor) while the lower half contains
Technics’ original integral rotorplatter DD motor and its
drive and servo-control circuitry.
The width and depth of the unit’s dimensions are exactly
the same as those of a standard LP record jacket, so the
turntable takes up minimum space.
Just put on a record and press the start button.
Thanks to the optical sensor and microcomputer, both
record size and record speed are detected automatically so
all you have to do is press the start button to begin play.
At the end of the record, the tonearm automatically rises
and returns to the start position.
When there is no record on the turntable, the tonearm does
not move, so there is no danger of harming the stylus
accidentally.
Complete multi-function control capability.
Besides the simple, basic operating procedure described
above, you also have complete manual control over all
tonearm and turntable functions.
Dynamic balanced linear tracking tonearm employs
optical sensor and groove deflection angle
detection for extremely stable and accurate
tracking.
The linear tracking tonearm moves across the record surface
in the same way as the cutter head used to make the record
in the first place. Therefore there is virtually no tracking
error or skating force.
Located by the stylus is an optical sensor that detects
tracking conditions by means of groove deflection angle.
Based on this information, tonearm movement is controlled
so as to maintain optimum tracking at all times. Because
the tonearm is dynamically balanced, the turntable can be
played flat or leaned.
A precision coreless DC motor is used for tonearm
drive to assure quiet and accurate control.
The coreless DC motor and slide bearing of minimum
friction assure extremely precise tonearm movement.
A 4-point pivot bearing gimbal suspension developed by
Technics reduces friction and raises sensitivity while
contributing to smooth tracing ability.
Equipped with a high performance MC cartridge
employing pure boron pipe cantilever and coreless
twin ring coil for excellent mechanical perfor-
mance characteristics and exceedingly faithful
musical reproduction.
This cartridge employs the same pure boron pipe cantilever
originally developed by Technics for the 305MC cartridge.
Besides this world’s first, the cartridge also features coreless
twin-ring construction to significantly reduce effective mass
while raising output.
Built-in pre-preamp for MC _ cartridge with
convenient MM/MC cartridge select button.
Other advanced features:
™ Technics’ original integral rotor-platter structure
combines motor rotor and platter for more stable per-
formance.
= Full cycle detection FG servo with quartz phase locked
control assures unbeatable rotational accuracy.
® Dial scale and tonearm LED indicator on outside of
upper cabinet make it easy to check on tonearm
position.
™ Record stabilizer and stroboscope built-in.
m= 45 rpm single-play adaptor is located in turntable platter
for pop-up convenience.
@ Underside of unit employs damping material to absorb
external vibrations and prevent acoustic breakthrough.
™ Can be run on either AC or DC (12V) current. DC
adaptor optionally available for car battery use.
m@ DISASSEMBLY INSTRUCTIONS
How to remove the cartridge
1. Turn off the stand-by switch. 4. Use the accessory screwdriver to unscrew the cartridge.
2. Open the upper cabinet all the way. (As shown in the diagram, loosen the screw until the car-
3. Slide the arm lock over so it locks the tonearm in place. tridge can be freely removed.) (See Fig. 2)
(See Fig. 1) 5. Pull of the cartridge. (See Fig. 3)
Stylus pressure
adjustment screw
=
[Fig. 2]
How to remove the turntable
1. Don’t rotate the turntable with a hand then remove the 3. Install 2 setscrews for center hole of turntable, then glip
45 Adaptor by turned counterclockwise. (See Photo 1) up can be replaced. (See Photo 2)
2. Remove 1 nut @ and 1 washer © of turntable. Note: Turntable screw is used as long about 30 mm.
[Photo 1] [Photo 2]
How to remove the lower cover
1. Open the upper cabinet, then remove the stay by pulling
it out toward you.
2. Remove the turntable.
3. Remove 4 rubber cap and 9 setscrews @ of the lower
cover. The lower cover can be remove. (See photo 3, 4)
