7] Be [e)

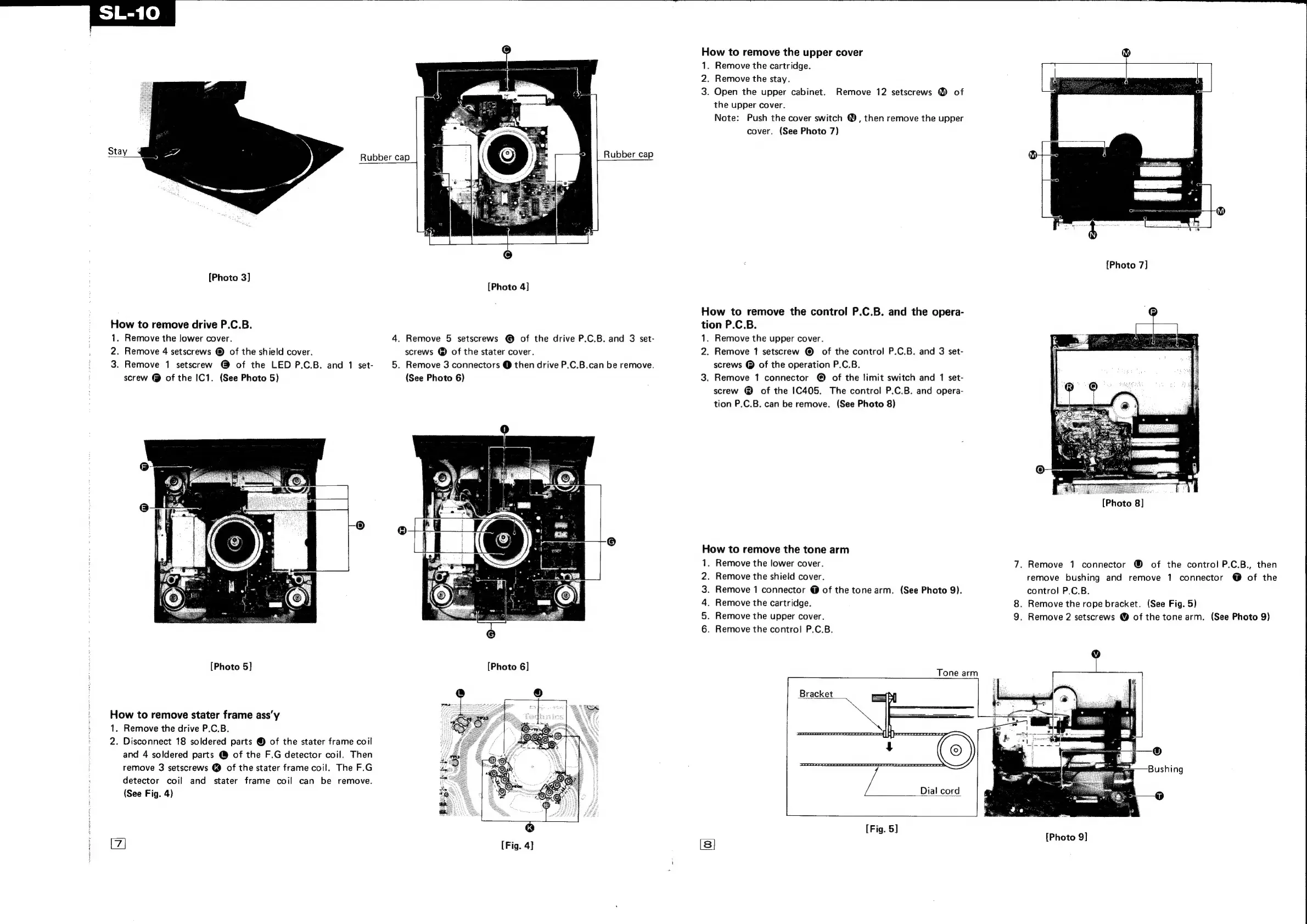

[Photo 3]
How to remove drive P.C.B.
1. Remove the lower cover.
2. Remove 4 setscrews ® of the shield cover.
3. Remove 1 setscrew @ of the LED P.C.B. and 1 set-
screw @ of the IC1. (See Photo 5)
Rubber cap
So et
sess
Rubber cap
[Photo 4]
4. Remove 5 setscrews © of the drive P.C.B. and 3 set-
screws @ of the stater cover.
5. Remove 3 connectors @ then drive P.C.B.can be remove.
(See Photo 6)
[Photo 5]
How to remove stater frame ass’y
1. Remove the drive P.C.B.
2. Disconnect 18 soldered parts ® of the stater frame coil
and 4 soldered parts @ of the F.G detector coil. Then
remove 3 setscrews @ of the stater frame coil. The F.G
detector coil and stater frame coil can be remove.
(See Fig. 4)
[Photo 6]
@ ®
How to remove the upper cover
1. Remove the cartridge.
2. Remove the stay.
3. Open the upper cabinet. Remove 12 setscrews @ of
the upper cover.
Note: Push the cover switch @, then remove the upper
cover. (See Photo 7)
How to remove the control P.C.B. and the opera-
tion P.C.B.
1. Remove the upper cover.
2. Remove 1 setscrew © of the control P.C.B. and 3 set-
screws @ of the operation P.C.B.
3. Remove 1 connector @ of the limit switch and 1 set-
screw @ of the 1C405. The control P.C.B. and opera-
tion P.C.B. can be remove. (See Photo 8)
How to remove the tone arm
Remove the lower cover.
Remove the shield cover.
Remove 1 connector @ of the tone arm. (See Photo 9).
Remove the cartridge.
Remove the upper cover.
Remove the control P.C.B.
OS PONS
Tone arm
my
rc
Bracket
Vi Dial cord
[Fig. 5]
[Photo 7]
[Photo 8]
. Remove 1 connector @© of the control P.C.B., then
remove bushing and remove 1 connector @ of the
control P.C.B.
. Remove the rope bracket. (See Fig. 5)
. Remove 2 setscrews @ of the tone arm. (See Photo 9)
©
Bushing
o
[Photo 9]
