Technics SL-10 User Manual

ed

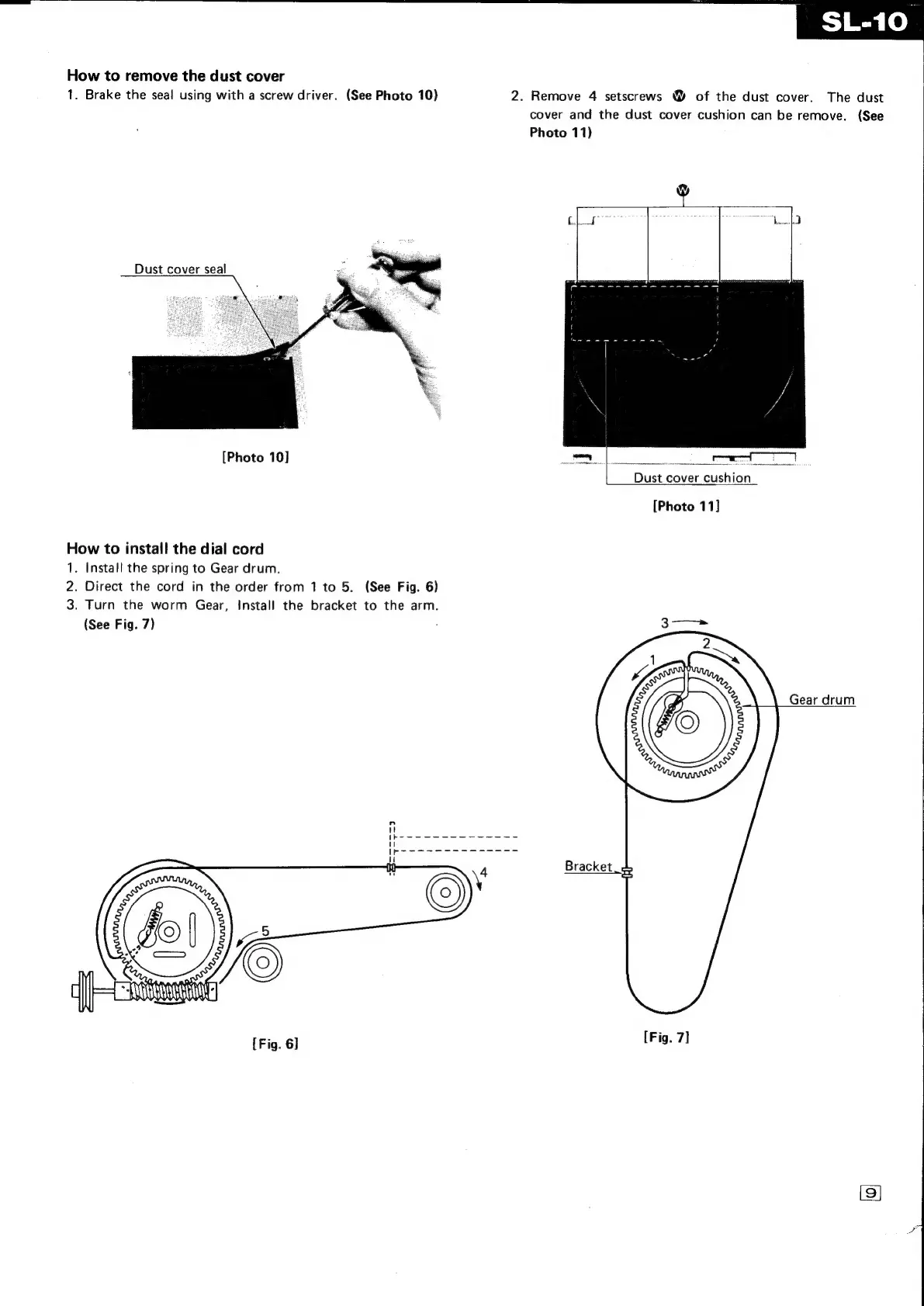

How to remove the dust cover
1. Brake the seal using with a screw driver. (See Photo 10)
Dust cover seal
[Photo 10]
How to install the dial cord
1. Install the spring to Gear drum.
2. Direct the cord in the order from 1 to 5. (See Fig. 6)
3. Turn the worm Gear, Install the bracket to the arm.
(See Fig. 7)
[Fig. 6]
2. Remove 4 setscrews @ of the dust cover. The dust
cover and the dust cover cushion can be remove. (See
Photo 11)
be
ee ee ee
Dust cover cushion
[Photo 11]
Gear drum
[Fig. 7]
