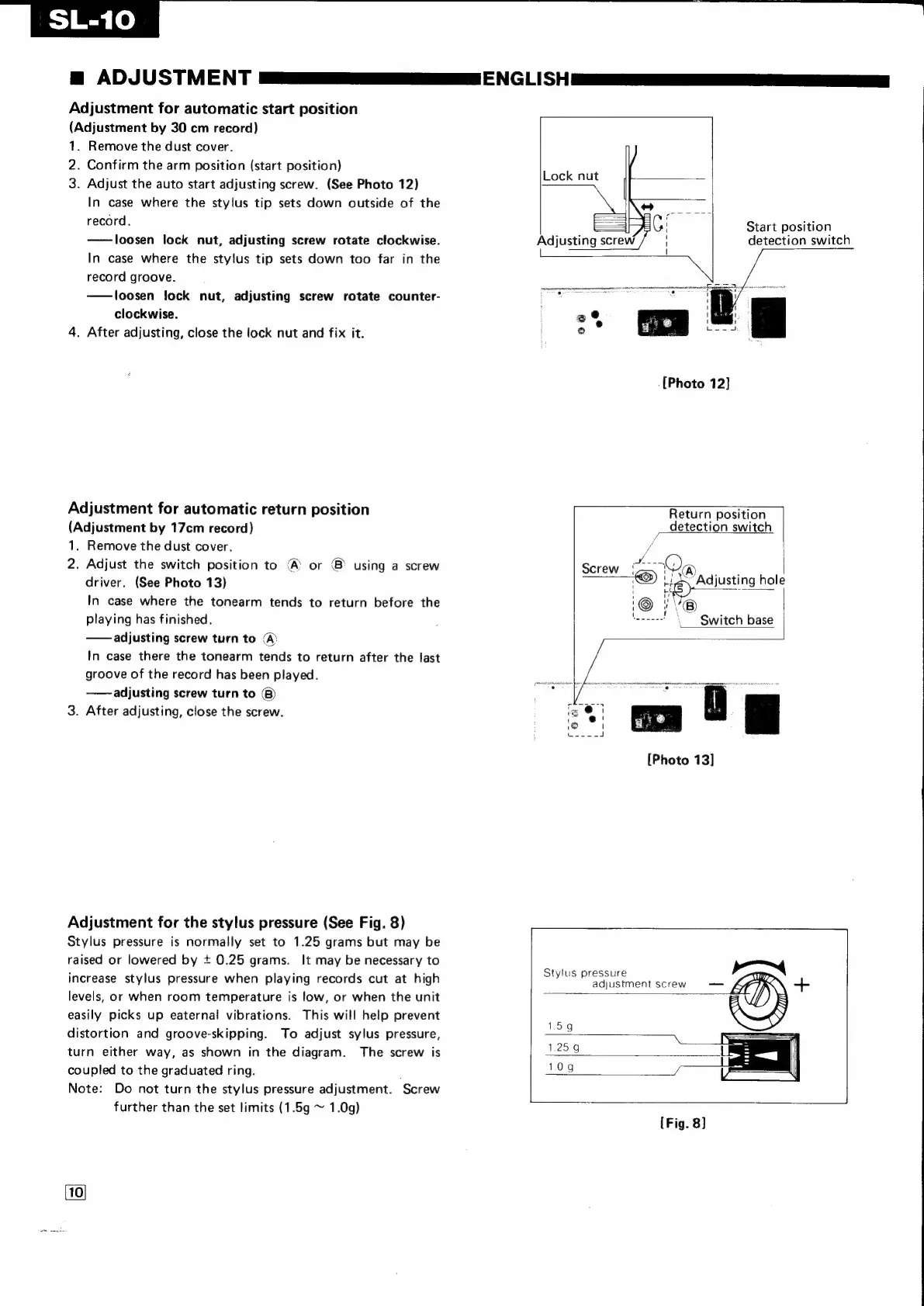

@ ADJUSTMENT Ss ENGL! SH Se
Adjustment for automatic start position
(Adjustment by 30 cm record)
1. Remove the dust cover.
2. Confirm the arm position (start position)
3. Adjust the auto start adjusting screw. (See Photo 12)
In case where the stylus tip sets down outside of the
record,
——loosen lock nut, adjusting screw rotate clockwise.
In case where the stylus tip sets down too far in the
record groove.
— loosen flock nut, adjusting screw rotate counter-
clockwise.
4. After adjusting, close the lock nut and fix it.
Adjustment for automatic return position
(Adjustment by 17cm record)
1. Remove the dust cover.
2. Adjust the switch position to @ or ® using a screw
driver. (See Photo 13)
In case where the tonearm tends to return before the
playing has finished.
—— adjusting screw turn to @
In case there the tonearm tends to return after the last
groove of the record has been played.
—— adjusting screw turn to @
3. After adjusting, close the screw.
Adjustment for the stylus pressure (See Fig. 8)
Stylus pressure is normally set to 1.25 grams but may be
raised or lowered by + 0.25 grams. It may be necessary to
increase stylus pressure when playing records cut at high
levels, or when room temperature is low, or when the unit
easily picks up eaternal vibrations. This will help prevent
distortion and groove-skipping. To adjust sylus pressure,
turn either way, as shown in the diagram. The screw is
coupled to the graduated ring.
Note: Do not turn the stylus pressure adjustment. Screw
further than the set limits (1.5g ~ 1.0g)
Lock nut
Start position
detection switch
[Photo 12]
Return position
detection switch
/
ais
1B
'
beenees
"
\___
Switch
base
a
Screw ‘ WR) ;
———@) a ‘Adjusting hole
1 i \ ®
[Photo 13]
Stylus pressure , 4
adjustment screw = +
15g
1.259
10g
Fig. 8]
