12
English
(12)

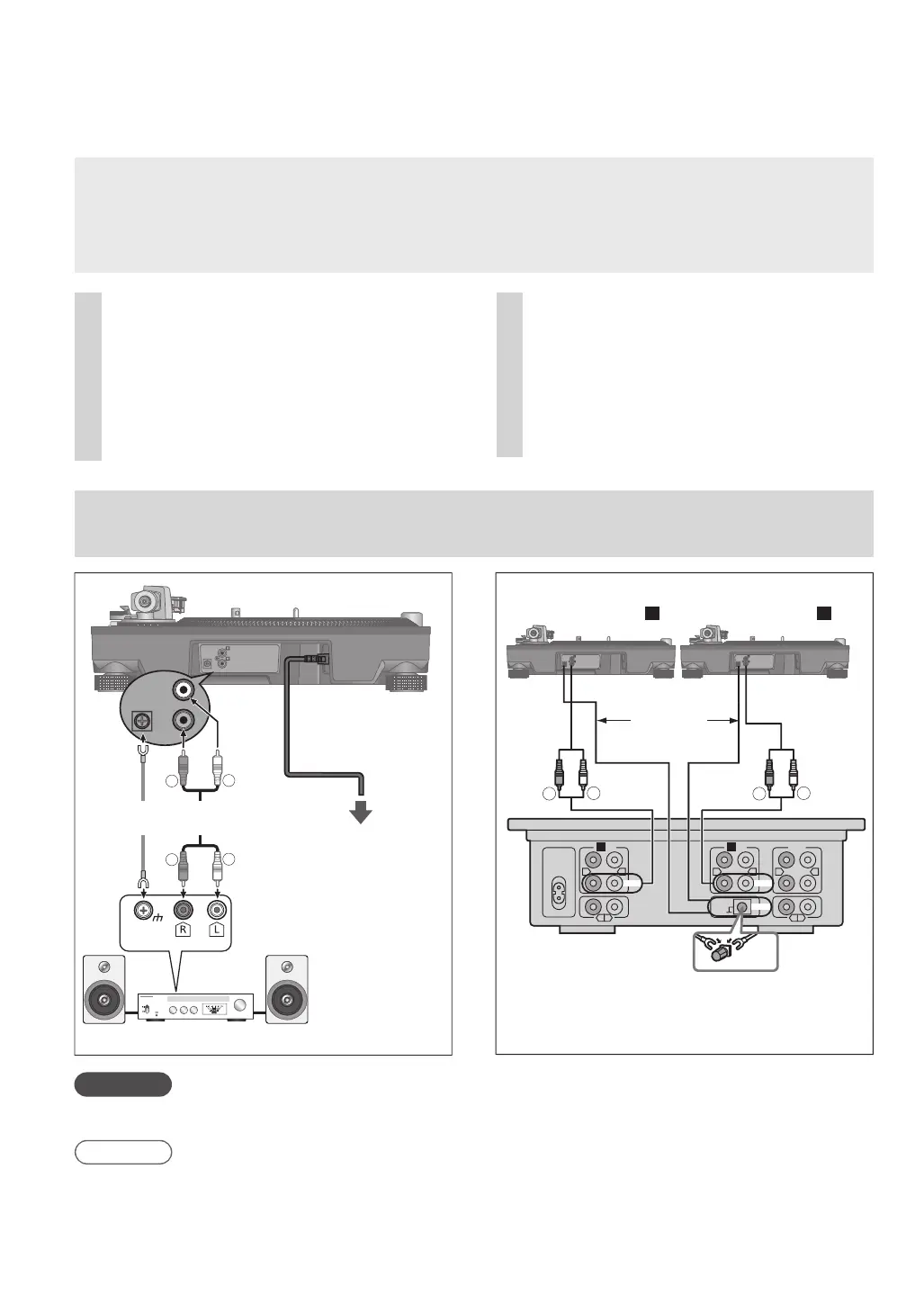

Connecting to a pre-main amplifier or component system /
Connecting to a mixer
Connections and installation
Turn off all units and disconnect the AC power supply cord from the socket before making any
connections.
Connect the AC power supply cord only after all other connections are completed.
Be sure to connect the PHONO earth lead. Otherwise mains hum may occur.
Refer also to the instruction manual of the connected device.
1
Connect the PHONO cable and
PHONO earth lead to the PHONO
input terminals of the connected
equipment.
You will not have adequate volume or
sound quality if the connected amplifier
has no PHONO input terminals.
2
Connect the AC power supply
cord.
Confirm the wattage of the AC outlet on
the connected equipment before using it
for this unit.
For the power consumption of this unit,
see the specifications. (
23)
Note
PHONO
EARTH
PHONO OUT
L
R
PHONO
PHONO
EARTH
R
L
R
L
PHONO
EARTH
PHONO OUT
L
R
PHONO
EARTH
PHONO OUT
L
R
B
IN IN OUT
A
RLR
L
R
LRLR
L
PHONO PHONO
B
A
PHONO
R
L
R
L
PHONO
Amplifier (not included)
AC power
supply cord
Back of main unit
Back of main unit
Audio mixer
Back of main unit
To a household
mains socket
PHONO cable/
PHONO earth lead
PHONO
earth lead
Refer to the operating instructions of
the audio mixer sold separately.
PHONO
cable
PHONO
cable
Attention
Tighten the PHONO earth terminal using a Phillips head screwdriver.
Although the AC power switch is in the "OFF" position, the unit is not completely disconnected
from the mains. Remove the plug from the main electrical outlet if you will not be using the unit for
an extended period of time. Place the unit so the plug can be easily removed.
SL-1200MK7PPPS201218.indb12SL-1200MK7PPPS201218.indb12 2020/12/1819:22:382020/12/1819:22:38
