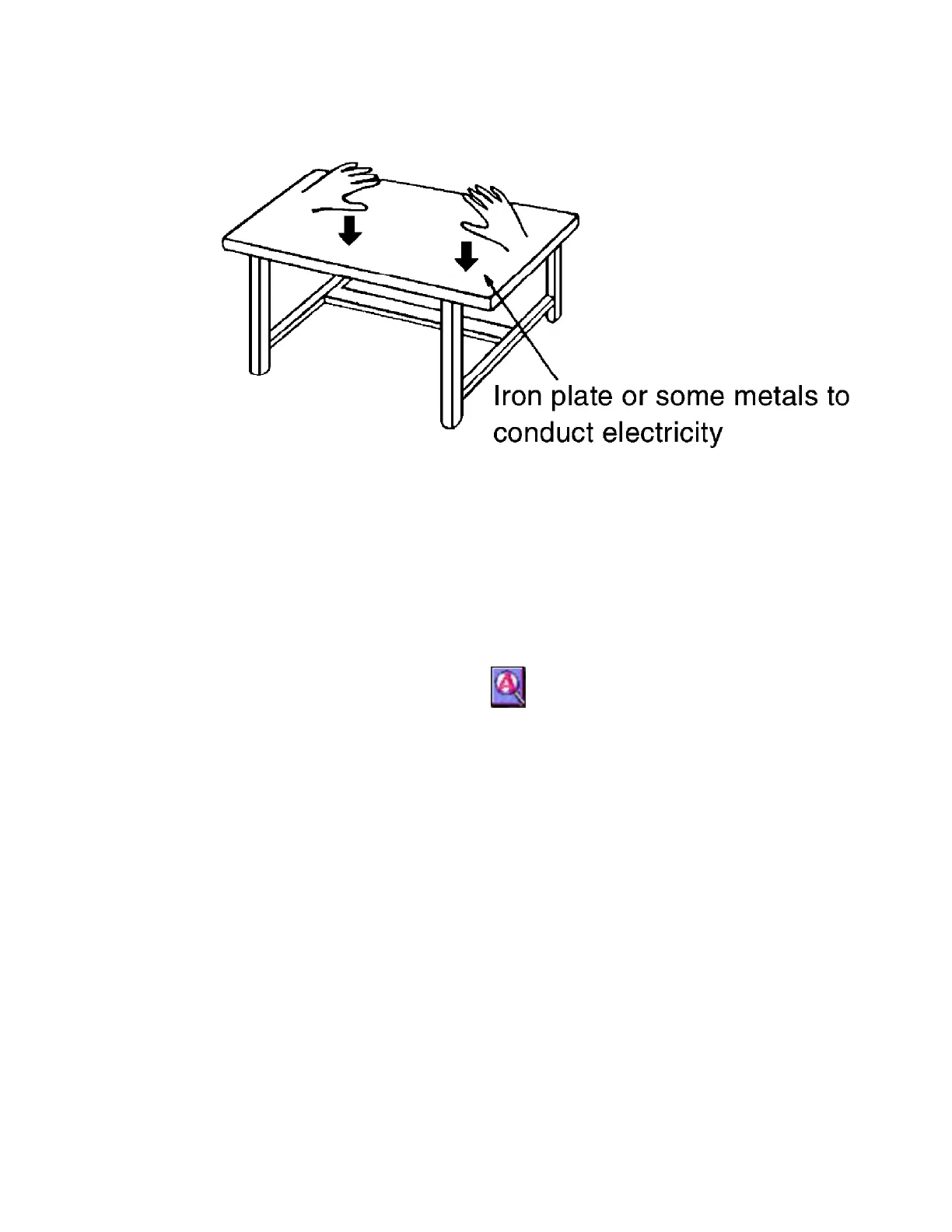

Caution:
The static electricity of your clothes will not be grounded through the wrist strap.
So take care not to let your clothes touch the traverse deck (optical pick-up).
8. Type Illustration of IC’s, Transistors and Diods
9. Measurements and Adjustments
9.1. The state of set and the use apparatus
- Make the following adjustments after replacing parts as IC’s, Transistors, Diodes,
etc.
- Condition of the set.
1. Power switch: ON
2. Pitch control: Center position
3. Speed selector switch: 33-1/3 r/min
- Instruments to be used
41
