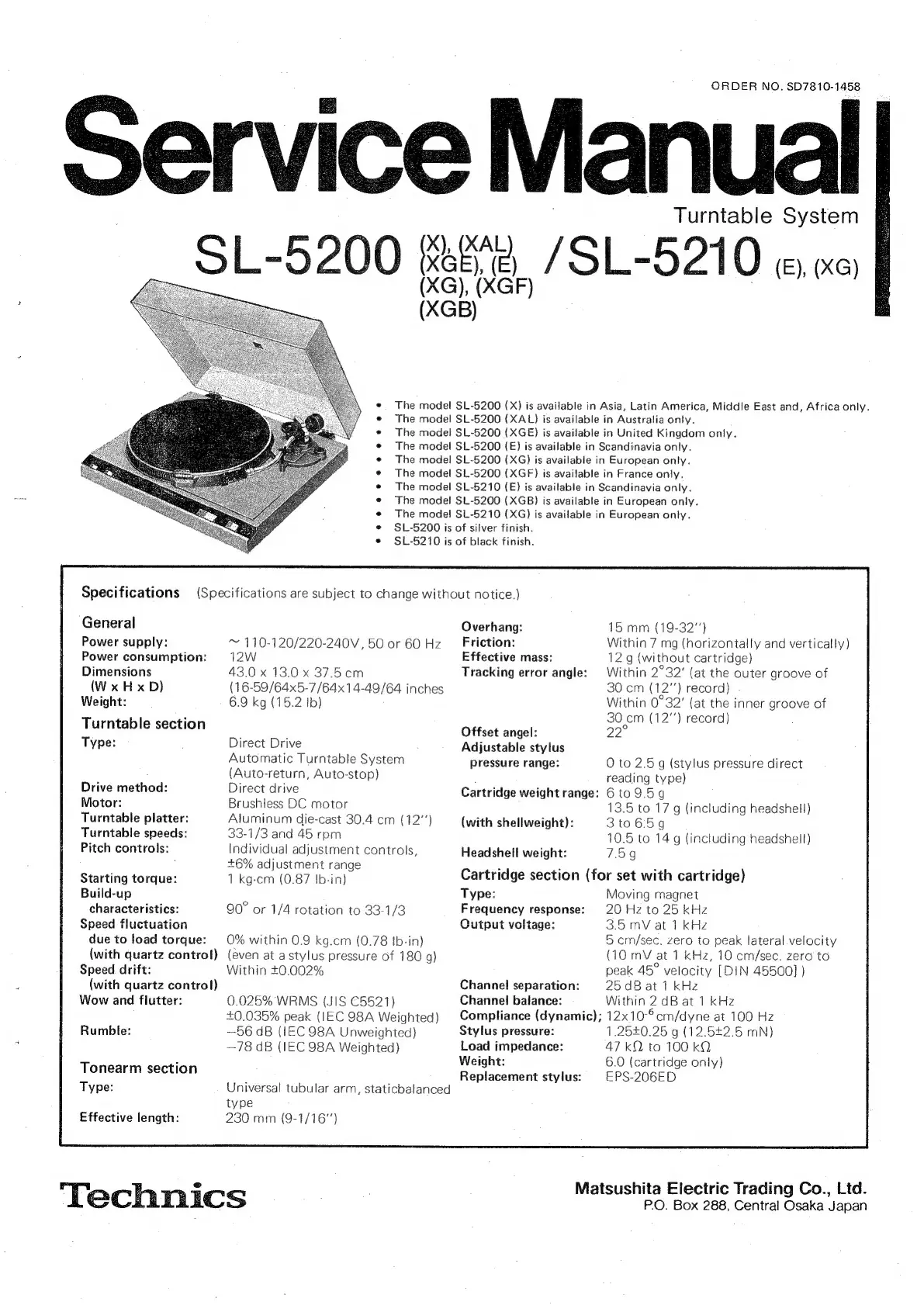

Technics SL-5200ES User Manual

SL-5200
BM
/SL-5210
te,
(XGB)
Manual
ORDER NO. SD7810-1458
Turntable System
The model SL-5200 (X) is available in Asia, Latin America, Middle East and, Africa only.
The model SL-5200 (XAL) is available in Australia only.
The mode! SL-5200 {XGE) is available in United Kingdom only.
The model SL-5200 (E) is available in Scandinavia only.
The mode! SL-5200 (XG) is available in European only.
The model SL-5200 (XGF) is available in France only.
The model SL-5210 (E) is available in Scandinavia only.
The model SL-5200 (XGB) is available in European only.
The mode! SL-5210 (XG) is available in European only.
SL-5200 is of silver finish.
SL-5210 is of black finish.
Specifications (Specifications are subject to change without notice.)
General
Power supply:
Power consumption:
Dimensions
(WxHxD)
Weight:
Turntable section
Type:
Drive method:
Motor:
Turntable platter:
Turntable speeds:
Pitch controls:
Starting torque:
Build-up
characteristics:
Speed fluctuation
due to load torque:
(with quartz control)
Speed drift:
(with quartz control)
Wow and flutter:
Rumble:
Tonearm section
Type:
Effective length:
~ 110-120/220-240V, 50 or 60 Hz
12W
43.0 x 13.0 x 37.5cem
(16-59/64x5-7/64x14-49/64 inches
6.9 kg (15.2 Ib)
Direct Drive
Automatic Turntable System
(Auto-return, Auto-stop)
Direct drive
Brushless DC motor
Aluminum die-cast 30.4 cm (12)
33-1/3 and 45 rom
Individual adjustment controls,
£6% adjustment range
1 kg-cm (0.87 !b-in)
90° or 1/4 rotation to 33-1/3
0% within 0.9 kg.cm (0.78 Ib-in)
(even
at
astylus
pressure
of
180
g)
Within +0.002%
0.025% WRMS (JIS C5521)
+0.035% peak (IEC 98A Weighted)
—56 dB (IEC 98A Unweighted)
—78 dB (IEC 98A Weighted)
Universal tubular arm, staticbalanced
type
230 mm (9-1/16")
‘Technics
Overhang: 15 mm (19-32')
Friction: Within 7 mg (horizontally and vertically)
Effective mass: 12 g {without cartridge)
Tracking error angle: Within 2°32’ (at the outer groove of
30 cm (12") record}
Within 0°32" (at the inner groove of
30 cm (12"’) record)
Offset angel: 22
Adjustable stylus
Pressure range: O to 2.5 g (stylus pressure direct
: reading type)
Cartridge weight range: 6 to 9.5g
13.5 to 17 g (including headshell)
(with shellweight): 3to 65g
10.5 to 14 g (including headshell)
Headshell weight: 7.59
Cartridge section (for set with cartridge)
Type: Moving magnet
Frequency response: 20 Hz to 25 kHz
Output voltage: 3.5 mV at 1 kHz
5 cm/sec. zero to peak lateral velocity
(10 mV at 1 kHz, 10 cm/sec. zero to
peak 45° velocity [DIN 45500] }
Channel separation: 25 dB at 1 kHz
Channel balance: Within 2 dB at 1 kHz
Compliance (dynamic); 12x10- cm/dyne at 100 Hz
Stylus pressure: 1.25£0.25 g (12.542.5 mN)
Load impedance: 47 kQ. to 100 kN
Weight: 6.0 (cartridge only)
Replacement stylus: EPS-206ED
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
