Technics SL-5200ES - Disassembly Procedures; Bottom Board Removal; Panel and Hinge Removal

SL-5200/521ff
Bottom board setscrews (7 pcs)

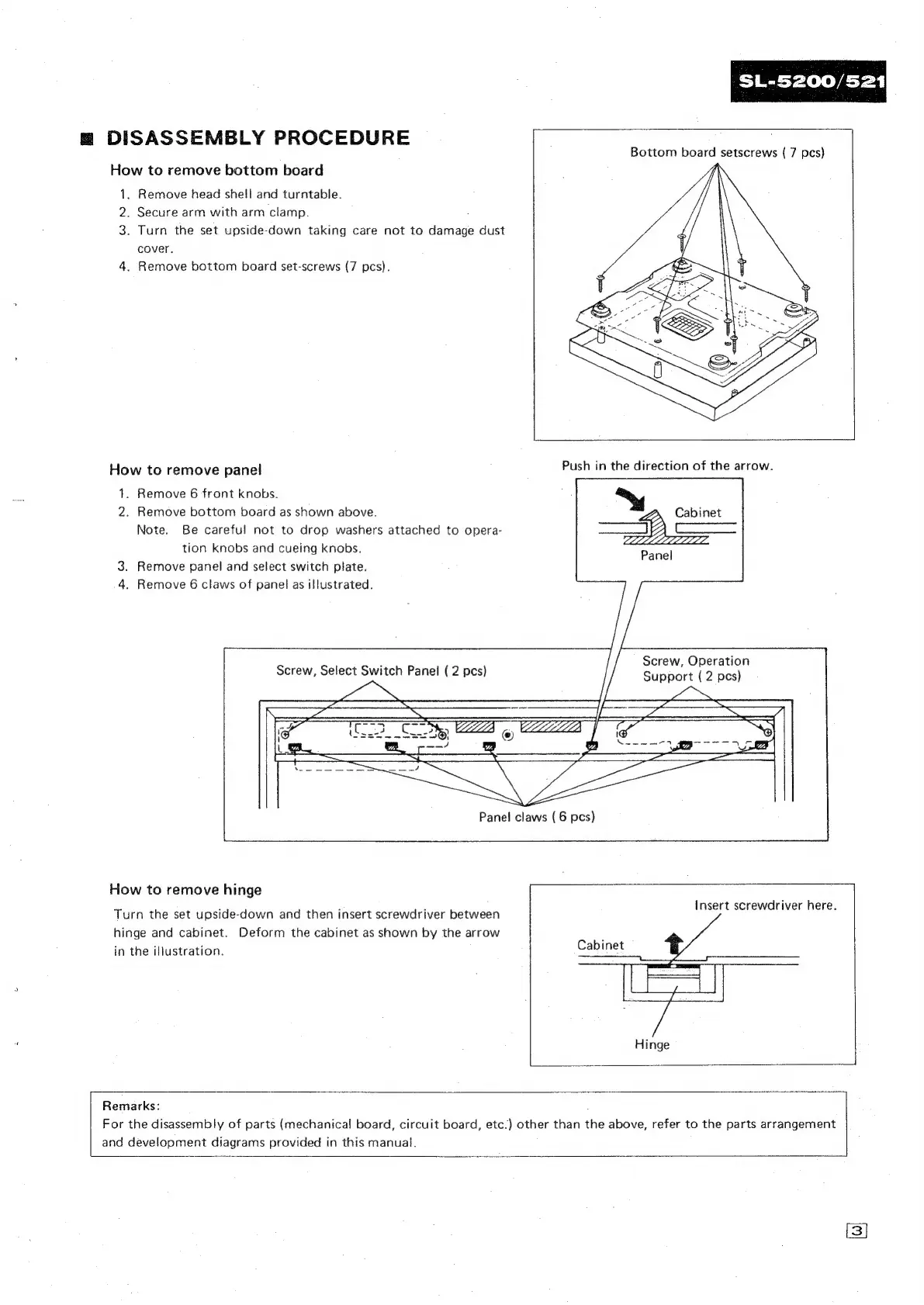

@ DISASSEMBLY PROCEDURE
How to remove bottom board
1. Remove head shell and turntable.
2. Secure arm with arm clamp. :
3. Turn the set upside-down taking care not to damage dust
cover.
4. Remove bottom board set-screws (7 pcs).
How
to
remove
panel
Push
in
the
direction
of
the
arrow.
“Ny
Cabinet
=
Gress
Panel
1. Remove 6 front knobs.
2. Remove bottom board as shown above.
Note. Be careful not to drop washers attached to opera-
tion knobs and cueing knobs.
3. Remove panel and select switch plate.
4. Remove 6 claws of panel as illustrated.
Screw, Operation
Support (2 pcs)
Screw, Select Switch Panel (2 pcs)
Panel claws (6 pcs)
How
to
remove
hinge
]
: F : Insert screwdriver here.
Turn the set upside-down and then insert screwdriver between
hinge and cabinet. Deform the cabinet as shown by the arrow :
in
the
illustration.
Cabinet
Hinge
Remarks:
For the disassembly of parts (mechanical board, circuit board, etc.) other than the above, refer to the parts arrangement
and development diagrams provided in this manual.
