7 To Supply Power Source
TOP PREVIOUS NEXT
This unit is designed to operate on power supplied from system connected./When a component requires
service, use the system connections to supply power source. /For system connections, refer to
Fig.7-1.

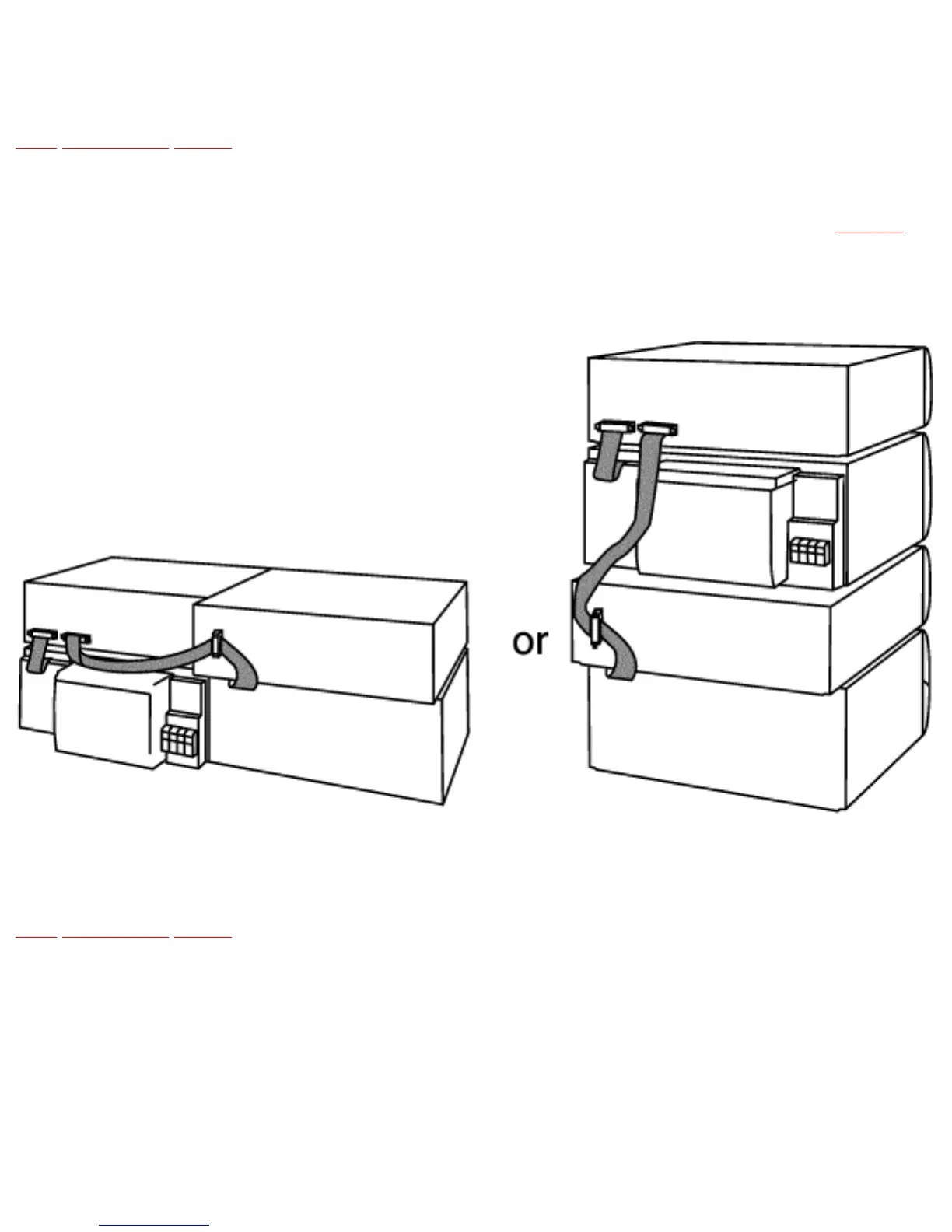

Fig. 7-1.
•@
