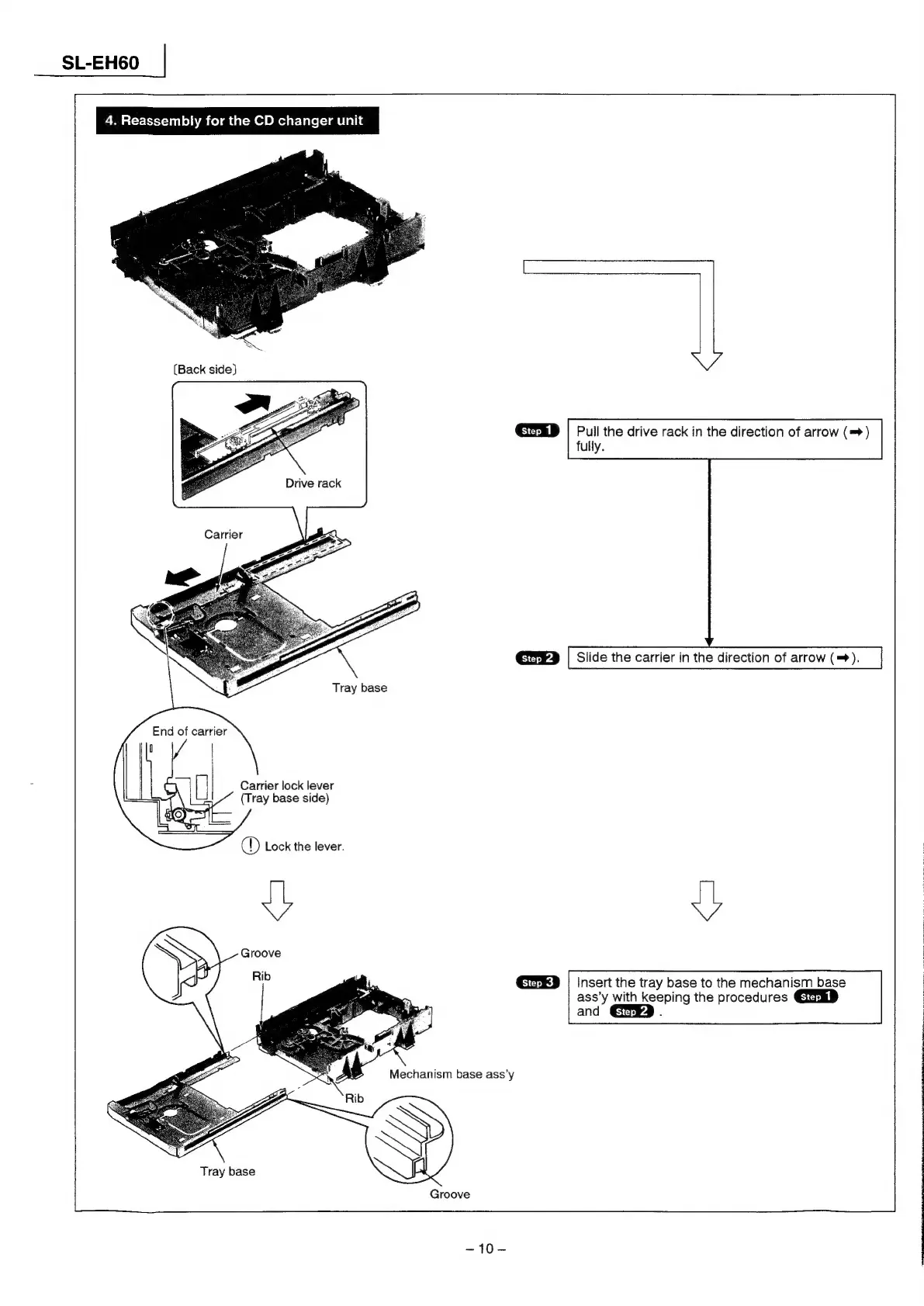

SL-EH60
|
4.
Reassembly
for
the
CD
changer
unit
(Back
side)
GERD
|
Pull
the
drive
rack
in
the
direction
of
arrow
(=>)
Drive
rack
Slide
the
carrier
in
the
direction
of
arrow
(=).
Tray
base
End
of
carrier
Carrier
lock
lever
(Tray
base
side)
O
Lock
the
lever.
Insert
the
tray
base
to
the
mechanism
base
ass’y
with
keeping
the
procedures
and
Ge.
Tray
base
