Technics SL-EH60 Service Manual

|_ steno
Vv Vv

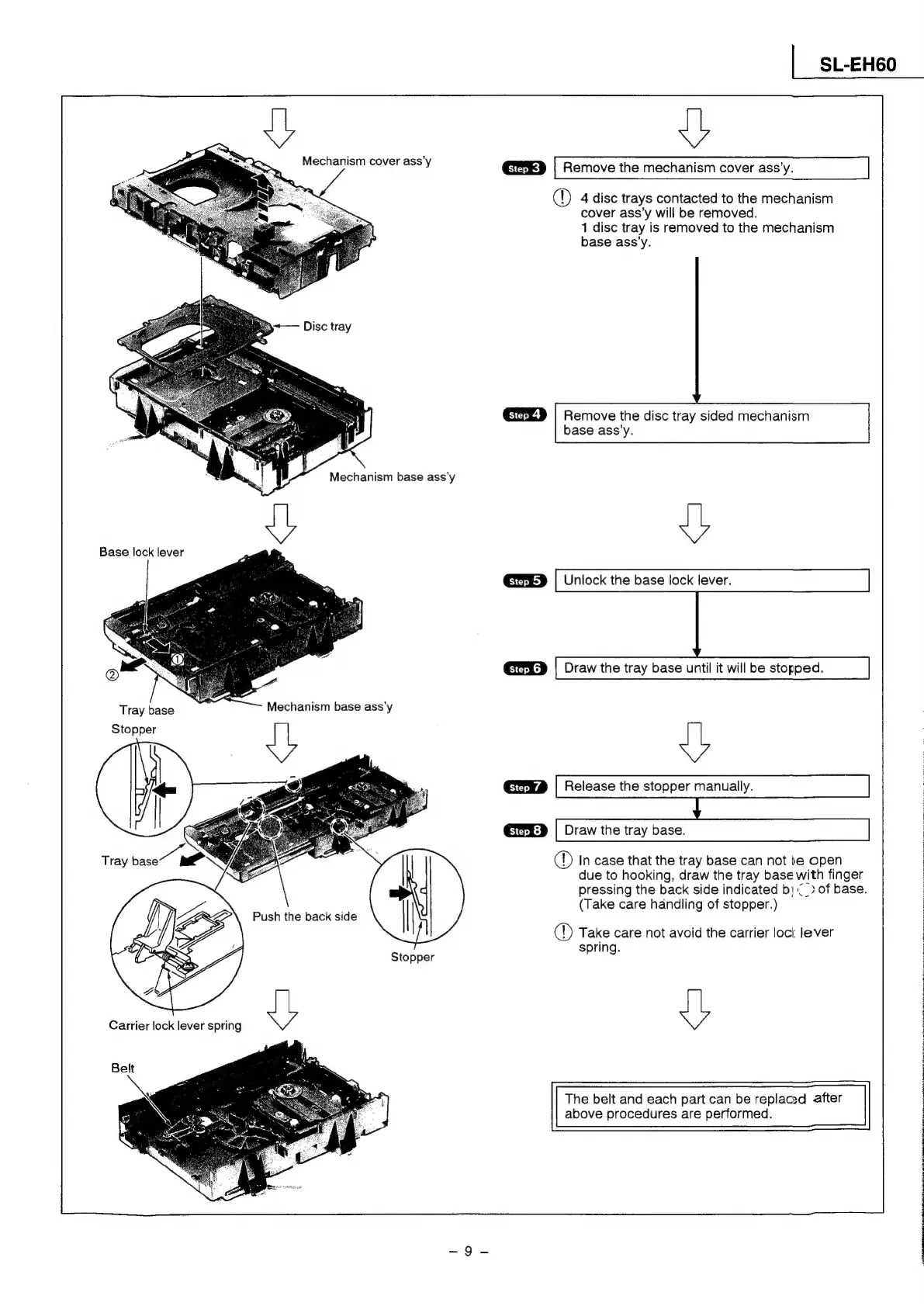

Mechanism cavercssy @SED | Remove the mechanism cover ass’y.
DO 4 disc trays contacted to the mechanism
cover ass’y will be removed.
1 disc tray is removed to the mechanism
base ass’y.
GEEZ) | Remove the disc tray sided mechanism
base ass’y.
Mechanism base ass'y
Base lock lever
GED | Unlock the base lock lever.
Tray
base
Mechanism
base
ass'y
Stopper
Release the stopper manually.
Draw the tray base.
D In case that the tray base can not be open
due to hooking, draw the tray base with finger
pressing the back side indicated by ("> of base.
(Take care handling of stopper.)
@ Take care not avoid the carrier lock lever
spring.
The belt and each part can be replaced after
Stopper
above procedures are performed.
