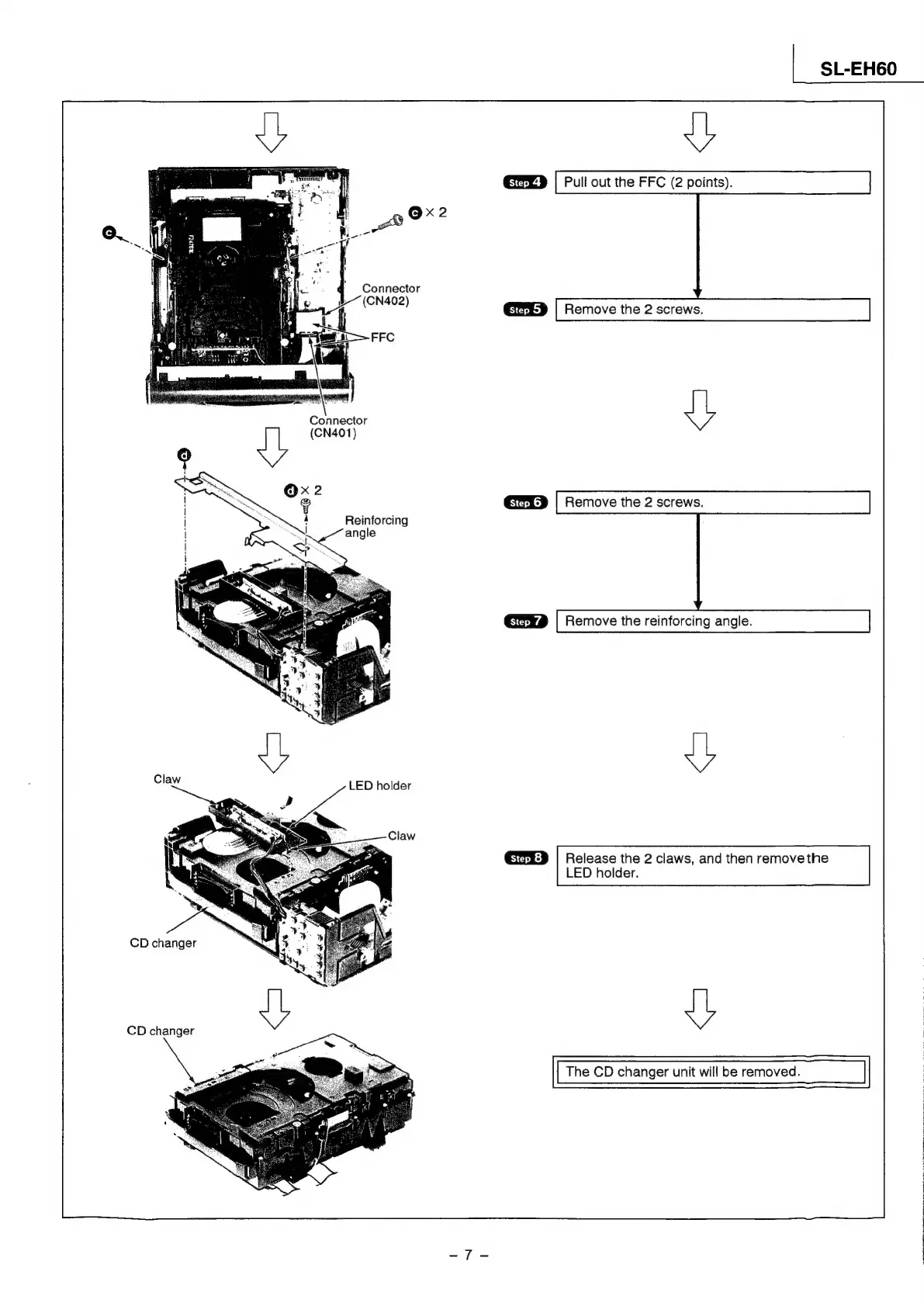

SL-EH60
Pull
out
the
FFC
(2
points).
Remove
the
2
screws.
Connector
4
(CN401)
2
Remove
the
2
screws.
Reinforcing
angle
Remove
the
reinforcing
angle.
vy
LED
holder
Release
the
2
claws,
and
then
removethe
LED
holder.
CD
changer
vy
The
CD
changer
unit
will
be
removed.
CD
changer
