Technics SL-PS900 Service Manual

SL-PS900 |
Procedure
1-2--9-10
12-13-14
—15

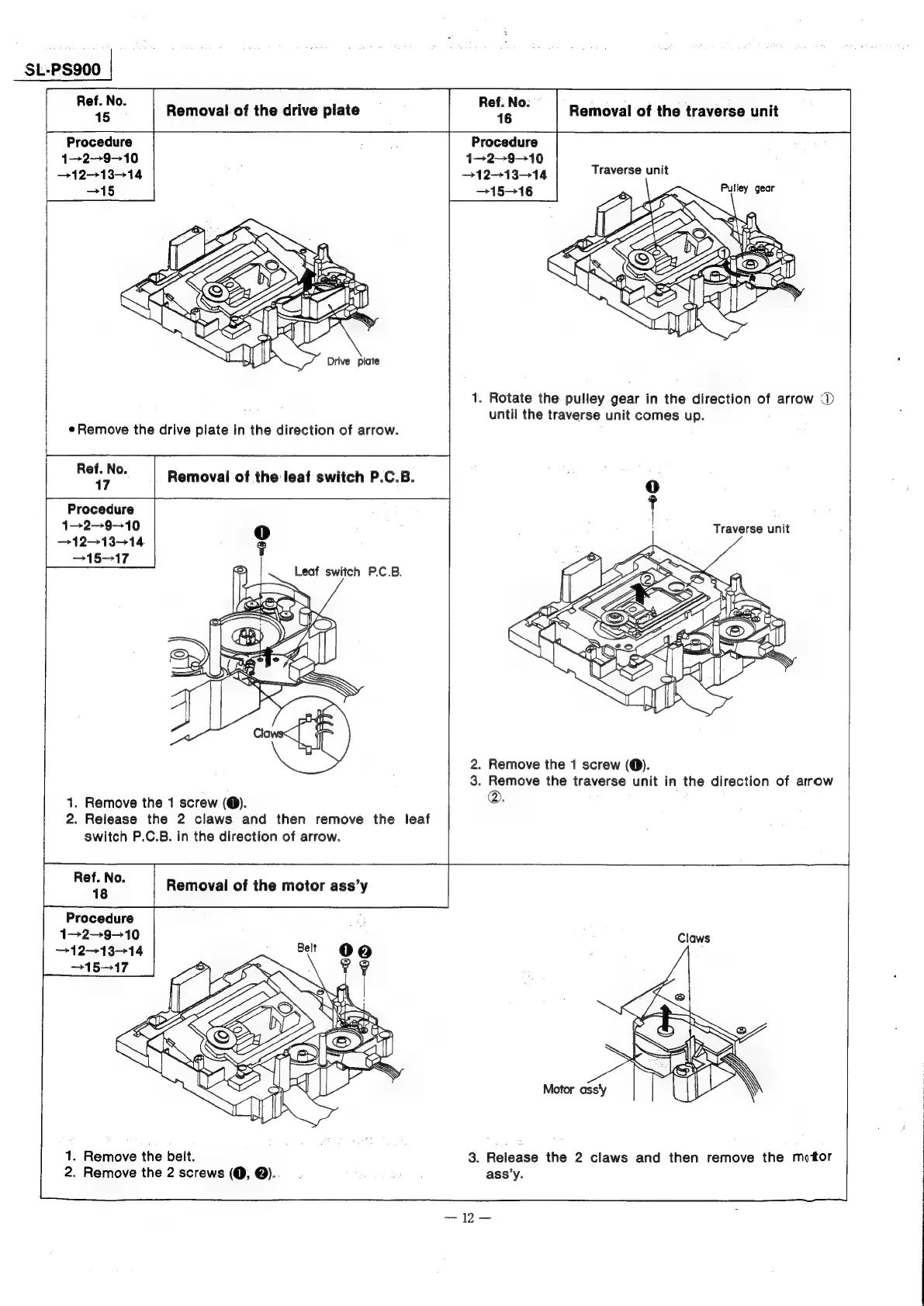

¢ Remove the drive plate in the direction of arrow.
Removal of the leaf switch P.C.B.
Procedure
12-910
12-13-14
15-17
1. Remove the 1 screw (@).
2. Release the 2 claws and then remove the leaf
switch P.C.B. in the direction of arrow.
Ref. No.
18 Removal of the motor ass’y
Procedure
1—2-—-9—10
12-13-14
715-17
1. Remove the beit.
2. Remove the 2 screws (@, @)..
ee
Removal
of
the
drive
plate
sas
Removal
of
the
traverse
unit
Procedure
1—-2—9-—10
12-13-14 Traverse unit
Pulley gear
1. Rotate the pulley gear in the direction of arrow @
until the traverse unit comes up.
2. Remove the 1 screw (@).
3. Remove the traverse unit in the direction of arrow
@.
Motor assy
3. Release the 2 claws and then remove the motor
ass’y.
