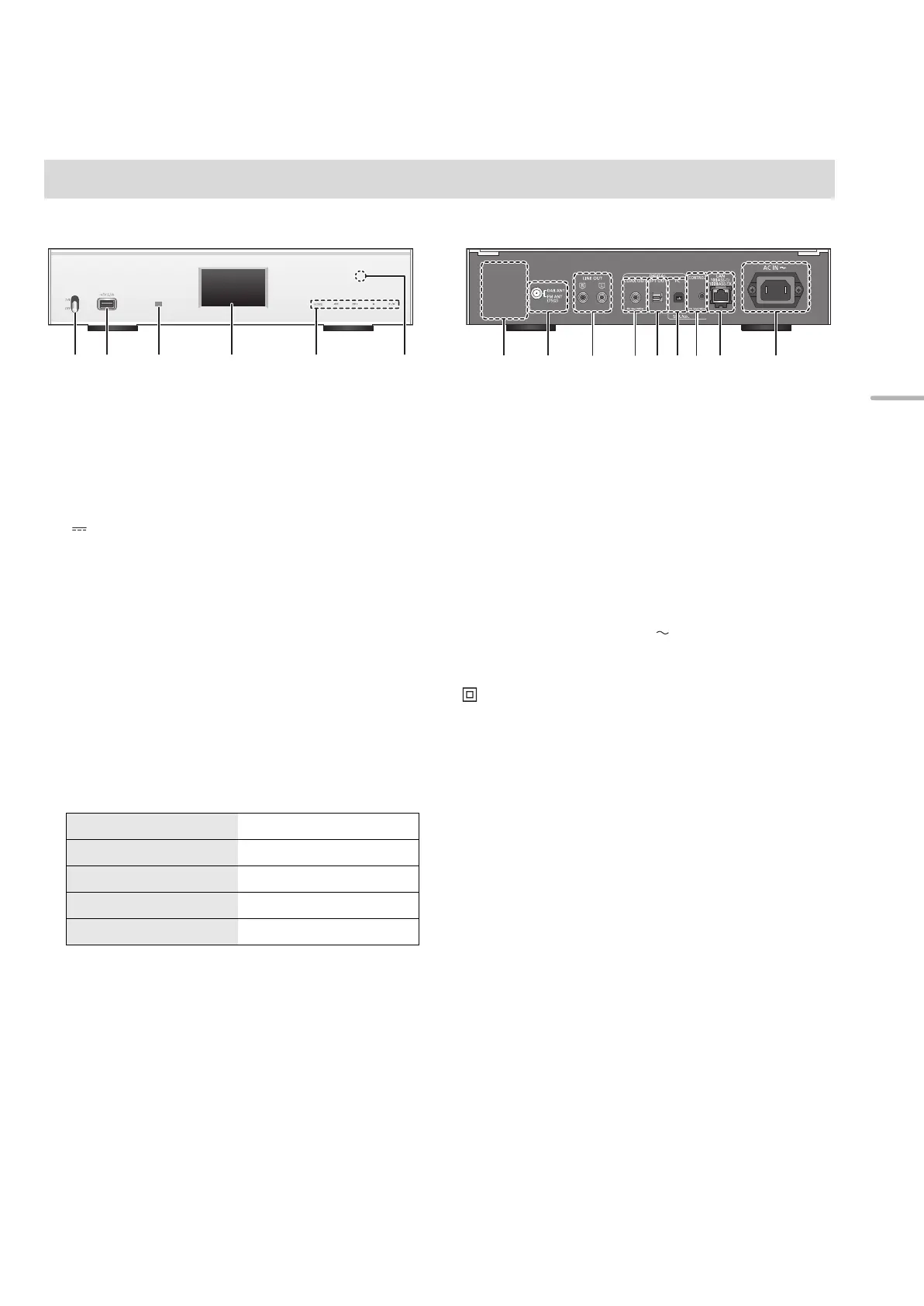

Control reference guide
∫ Front
1 Power switch lever [Í/I (Standby/on)]/[OFF]
Turn on/off this unit.
≥ The remote control do not operate when the power switch
lever is in the lowered position.
≥ You can switch the unit from on to standby mode or vice versa
when the power switch lever is in the raised position. (> 8)
2 Port for iPhone/iPad/iPod and USB devices
( DC 5 V 2.1 A) (> 17, 18)
3 Remote control signal sensor
Distance: Within approx. 7 m directly in front
Angle: Approx. 30o left and right
4 Display
≥The input source, playback status and other information
are displayed. For more details, check the support site
below as well as these operating instructions.
www.technics.com/support/
5 Basic control switches
These switches work just by touching the marks. Each
time you touch the switch, there will be a beep sound.
(> 11)
≥ When playback information is not shown on the display
(except in NFC registration standby mode (> 21)), you can
perform the following operations on the touch panel:
6 NFC touch area (> 21)
The NFC touch area sheet is attached to this area at the
time of purchase.
∫ Rear
7 Product identification marking
The model number is indicated.
8 DAB/FM terminal (> 10)
9 Analogue audio output terminal [LINE OUT] (> 9)
: Digital audio output terminal [COAX OUT] (> 9)
; Digital audio output terminal [OPT OUT] (> 9)
< Digital audio input terminal [PC] (> 20)
For connecting to a PC, etc.
= System terminal [CONTROL] (> 9)
> LAN port [LAN] (> 12)
? AC IN terminal [AC IN T]( ) (> 10)
This unit
:3 (Up)
94 (Down)
1/; OK (OK)
∫ RETURN (Return)
HOME (Touch and hold) MENU (Enter menu)
Class II equipment
(The construction of the product is double-insulated.)
(7)
