Technics SU-G700M2 Owner's Manual

20
Operations

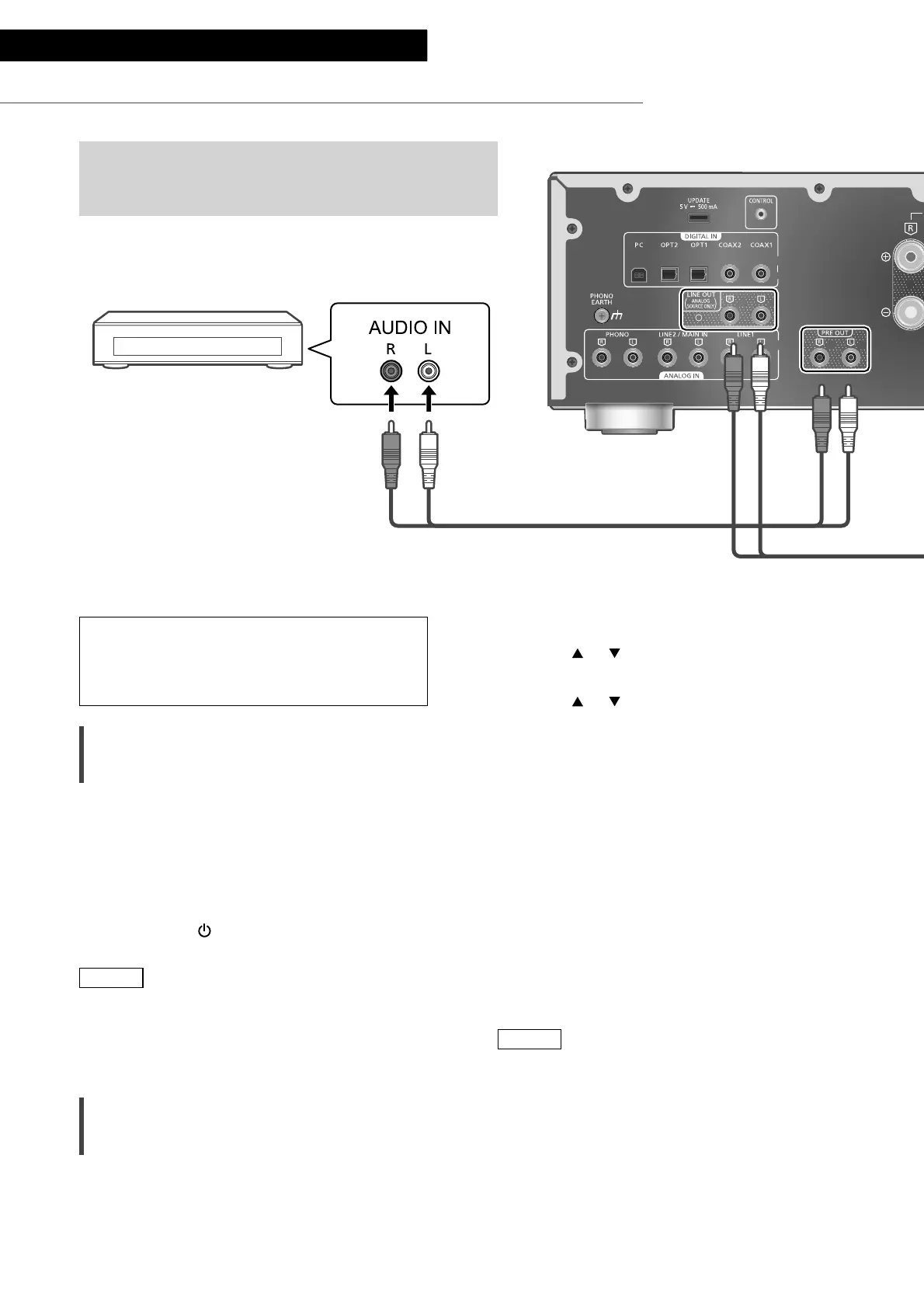

Connecting a power amplifier, subwoofer, etc.
(20)
Analog audio cable (not supplied)
Power amplifier,
Subwoofer, etc.
You can connect the power amplifier, subwoofer, etc.
with analog audio cable (not supplied) to output the
analog audio signals.
Do not input the audio signal from PRE
OUT/LINE OUT terminals to the analog
audio input terminals of this unit. Doing so
may cause malfunction.
Using analog audio cable
1 Disconnect the AC power supply cord.
2 Connect this unit and a power
amplifier, subwoofer, etc.
3 Connect the AC power supply cord to
this unit. ( 13)
4 Press [AMP
] to turn this unit on.
Note
• For details, refer to the operating instructions of
the connected device.
• Sound is not output from PRE OUT terminals
when using this unit as main amplifier. ( 18)
Setting the audio output (PRE OUT)
You can set the audio output of the speaker
output terminals and PRE OUT terminals.
1 Press [AMP].
2 Press [SETUP].
3 Press [
], [ ] repeatedly to select
“PRE OUT” and then press [OK].
4 Press [
], [ ] to select the output
setting and then press [OK].
• The factory default is “Off”.
• Not available when using this unit as main
amplifier. ( 18)
On:
Sound is output from the speaker output
terminals and PRE OUT terminals.
On (Speaker:Off):
Sound is not output from the speaker output
terminals. Sound is output from PRE OUT
terminals.
Off:
Sound is not output from PRE OUT terminals.
Sound is output from the speaker output
terminals.
Note
• It is recommended to set to “On (Speaker:Off)”
(rated output: 1 V) when connecting a power
amplifier.
• Set to “Off” when using output correction
function for the connected speakers because
the correction function (LAPC) effects on the
audio output from PRE OUT terminal. ( 24)

Technics SU-G700M2 Specifications

General

Output Power (8 Ohms)	70 W + 70 W
Output Power (4 Ohms)	140 W + 140 W
Analog Outputs	1 x Line
USB-B Input	Yes
Coaxial Digital Input	1
Headphone Output	Yes
Input Sensitivity	200 mV
Input Impedance	47 kOhms
Load Impedance	4 Ω - 16 Ω
Digital Inputs	Coaxial, Optical, USB-B
Analog Inputs	2 x Line
Phono Input	Yes
DAC	Yes
Bluetooth	Yes
Dimensions (W x H x D)	430 x 148 x 428 mm
