Technics SU-G95 Service Manual

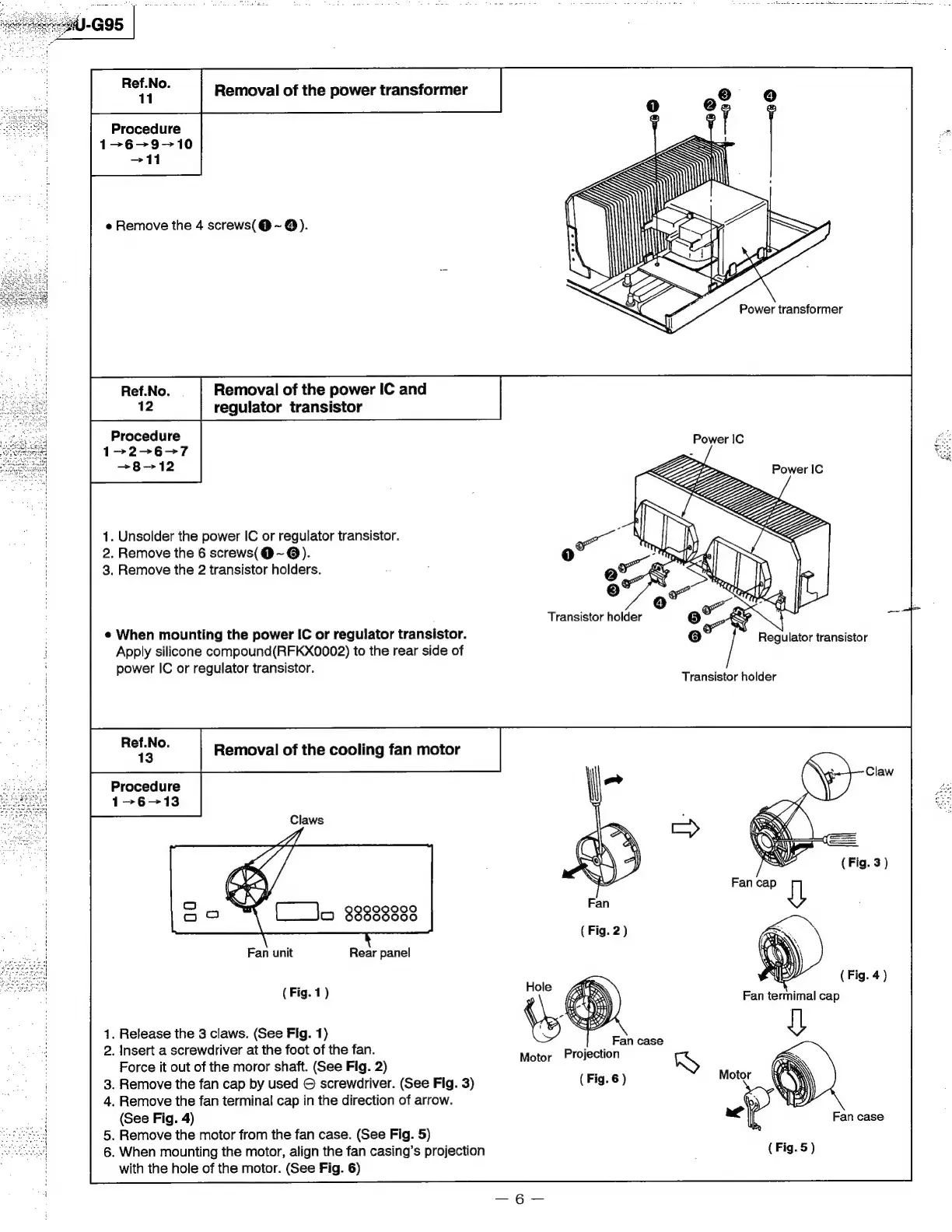

Removal of the power transformer
Procedure
1—-6—-9-10
>11
e Remove the 4 screws(@~@).
Removal of the power IC and
regulator transistor
Procedure
1-2-6-—-7
—-8-—-12
1. Unsolder the power IC or regulator transistor.
2. Remove the 6 screws(@~ @).
3. Remove the 2 transistor holders.
¢ When mounting the power IC or regulator transistor.
Apply silicone compound(RFKX0002) to the rear side of
power IC or regulator transistor.
peer | Removal of the cooling fan motor
Procedure
(Fig. 1)
. Release the 3 claws. (See Fig. 1)
. Insert a screwdriver at the foot of the fan. Motor Projection
Force it out of the moror shaft. (See Fig. 2)
. Remove the fan cap by used © screwdriver. (See Fig. 3)
. Remove the fan terminal cap in the direction of arrow.
(See Fig. 4)
. Remove the motor from the fan case. (See Fig. 5)
. When mounting the motor, align the fan casing’s projection
with the hole of the motor. (See Fig. 6)
( Fig. 6 )
Regulator transistor
Transistor holder
Fan case
