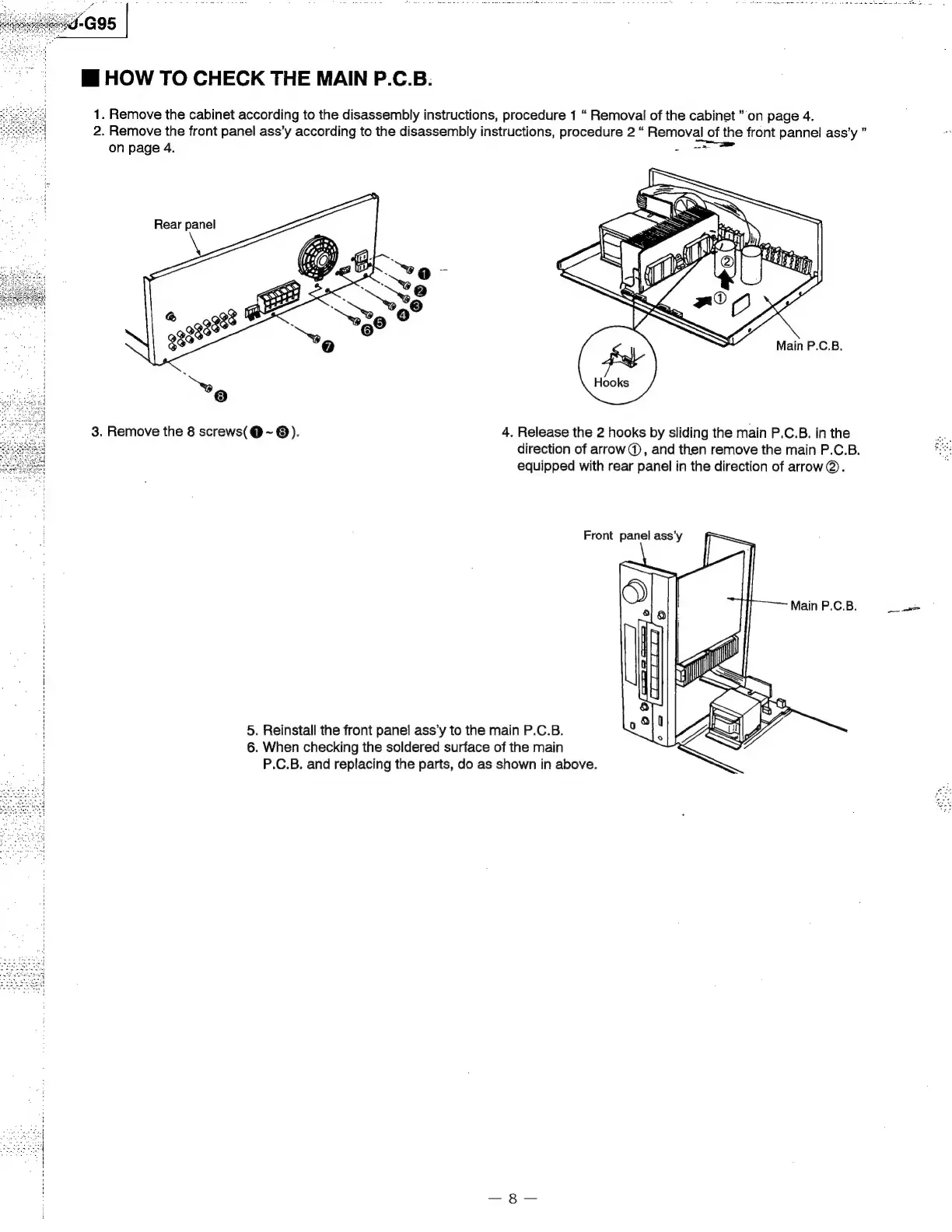

Mi
HOW
TO
CHECK
THE
MAIN
P.C.B.
1.
Remove
the
cabinet
according
to
the
disassembly
instructions,
procedure
1
“
Removal
of
the
cabinet
”'on
page
4.
2.
Remove
the
front
panel
ass’y
according
to
the
disassembly
instructions,
procedure
2
“
Removal
of
the
front
pannel
ass’y
”
on
page
4.
a:
Rear
panel
3.
Remove
the
8
screws(@~
@).
4.
Release
the
2
hooks
by
sliding
the
main
P.C.B.
in
the
direction
of
arrow
@,
and
then
remove
the
main
P.C.B.
equipped
with
rear
panel
in
the
direction
of
arrow®.
a
5.
Reinstall
the
front
panel
ass’y
to
the
main
P.C.B.
6.
When
checking
the
soldered
surface
of
the
main
P.C.B.
and
replacing
the
parts,
do
as
shown
in
above.
