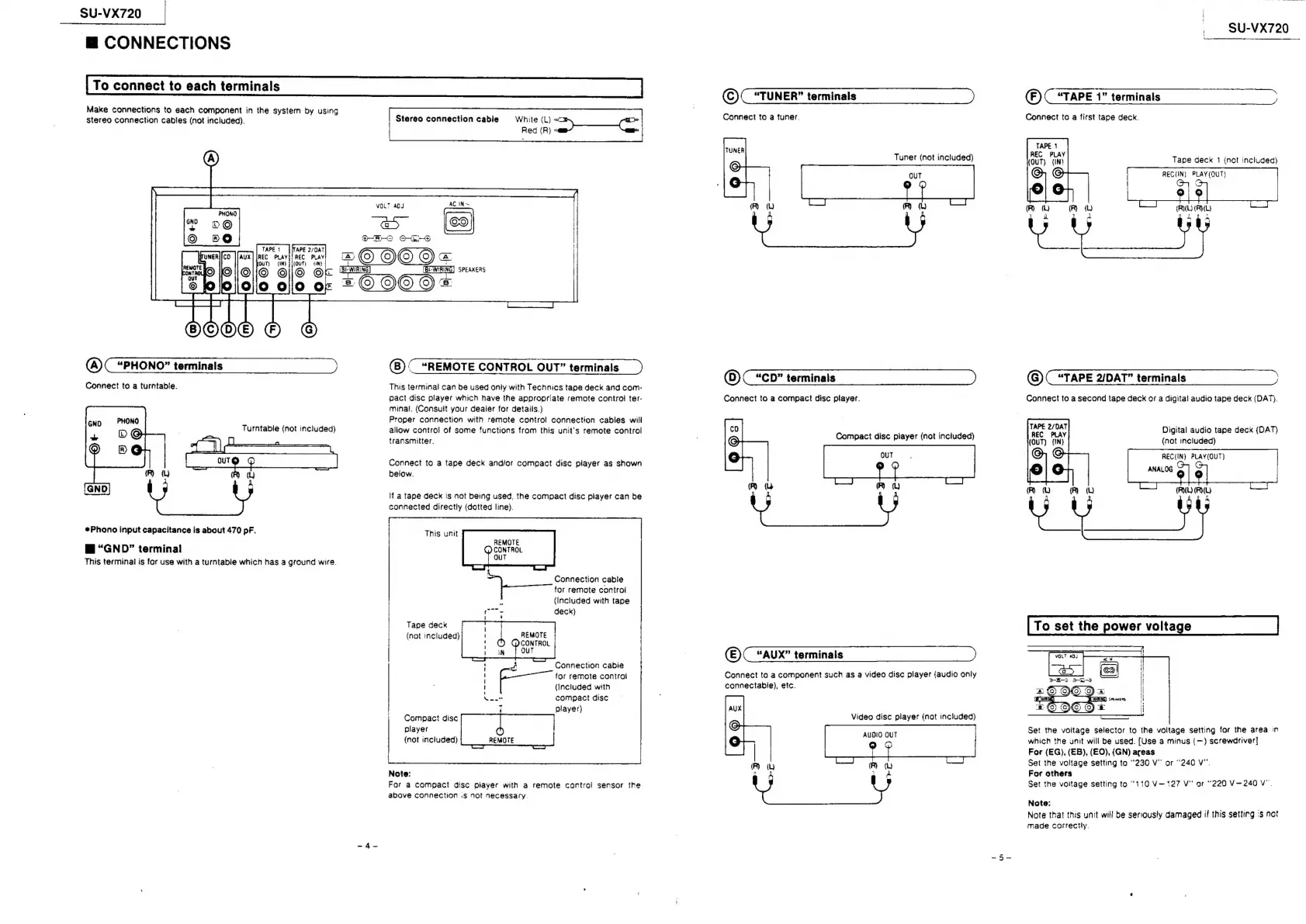

CONNECTIONS
To connect to each terminals
Make connections to each component in the system by using :
stereo connection cabies (not included). Stereo connection cable = White (L) =2— ©.
Red (R}
VOL? ADJ
k=
(a)( “PHONO” terminals )
Connect to a turntable.
(B)( “REMOTE CONTROL OUT” terminals
This terminal can be used only with Technics tape deck and com-
pact disc player which have the appropriate remote control ter-
minal. (Consult your dealer for details.)
Proper connection with remote control connection cables will
allow control of some functions from this unit's remote control
transmitter.
Turntable (not included)
Connect to a tape deck and/or compact disc player as shown
below.
lf a tape deck is not being used, the compact disc player can be
connected directly (dotted line).
Phono input capacitance is about 470 pF.
This unit
REMOTE
B “GND” terminal @ CONTROL
This terminal is for use with a turntabie which has a ground wire. pal
am
, Connection cable
for remote control
(Included with tape
deck}
Tape deck
(not included} REMOTE
Connection cabie
a for remote controt
I (Included with
er compact disc —
player)
Compact disc
player
(not inciuded)
O
REMOTE
Note:
For a compact disc piayer with a remote cortrol sensor the
above connection .s not necessary.
(C)C “TUNER” terminals
Connect to a tuner.
Tuner (not included)
Rw
A
@C“co" terminals
Connect to a compact disc player.
© Compact disc player (not included)
(©)( “AUX” terminals
Connect to a component such as a video disc player (audio only
connectable), etc.
Video disc player (not included)
AUDIO OUT
9
{____
(Rib aa (F) .
_ SU-VX720
)( “TAPE 1” terminals ;
Connect to a first tape deck.
Tape deck 1 (not included)
REC{IN) PLAY(QUT)
'e
(PR) wy (Ry (u
: a ml
G) C “TAPE 2/DAT” terminals
Connect to a second tape deck or a digital audio tape deck (DAT),
Digital audio tape deck (DAT)
(not included)
REC(IN} PLAY(QUT)
G
(Ry (Ry th)
To set the power voltage
Set the voltage selector to the voltage setting for the area in
which the unit will be used. [Use a minus (—) screwdriver]
For (EG), (EB), (EO), (GN) areas
Set the voltage setting to 230 V" or ‘240 Vv".
For others
Set the voitage setting to ‘110 V-—127 V" or “220 V—240 V".
Note:
Note that this unit will be seriously damaged if this settirg 's not
made correctly.
