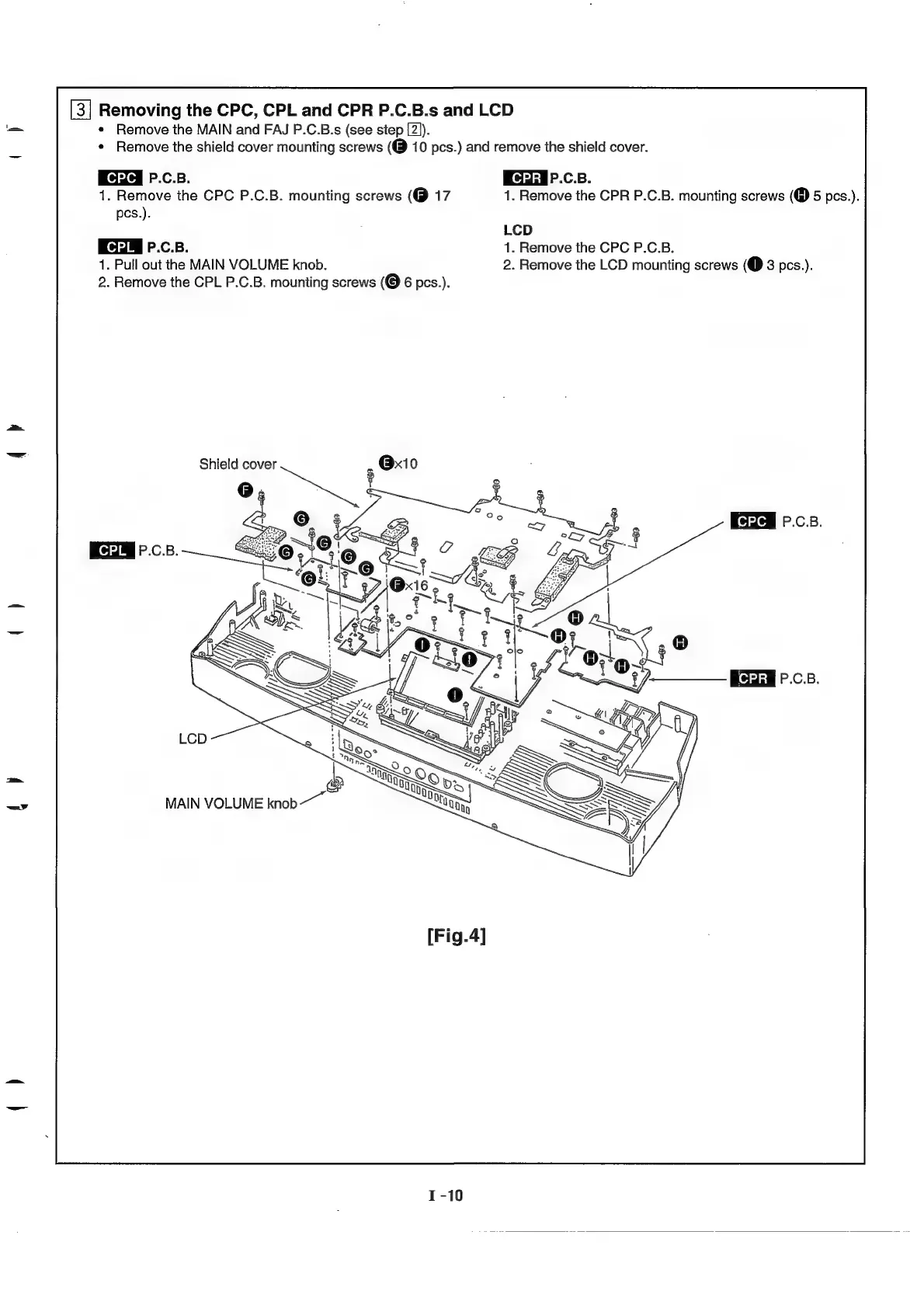

Removing the CPC, CPL and CPR P.C.B.s and LCD
* Remove the MAIN and FAJ P.C.B.s (see step [2]).
* Remove the shield cover mounting screws (@ 10 pcs.) and remove the shield cover.
P.C.B. Kena P.c.B.
1. Remove the CPC P.C.B. mounting screws (@ 17 1. Remove the CPR P.C.B. mounting screws (@ 5 pes.).
pes.).
; LCD
P.C.B. 1. Remove the CPC P.C.B.
1. Pull out the MAIN VOLUME knob. 2. Remove the LCD mounting screws (@ 3 pcs.).
2. Remove the CPL P.C.B. mounting screws (@ 6 pcs.).
Shield cover
P.C.B.
P.C.B.
P.C.B.
MAIN VOLUME knob ~
[Fig.4]
