Technics SX-KN7000P User Manual

Keyboard unit

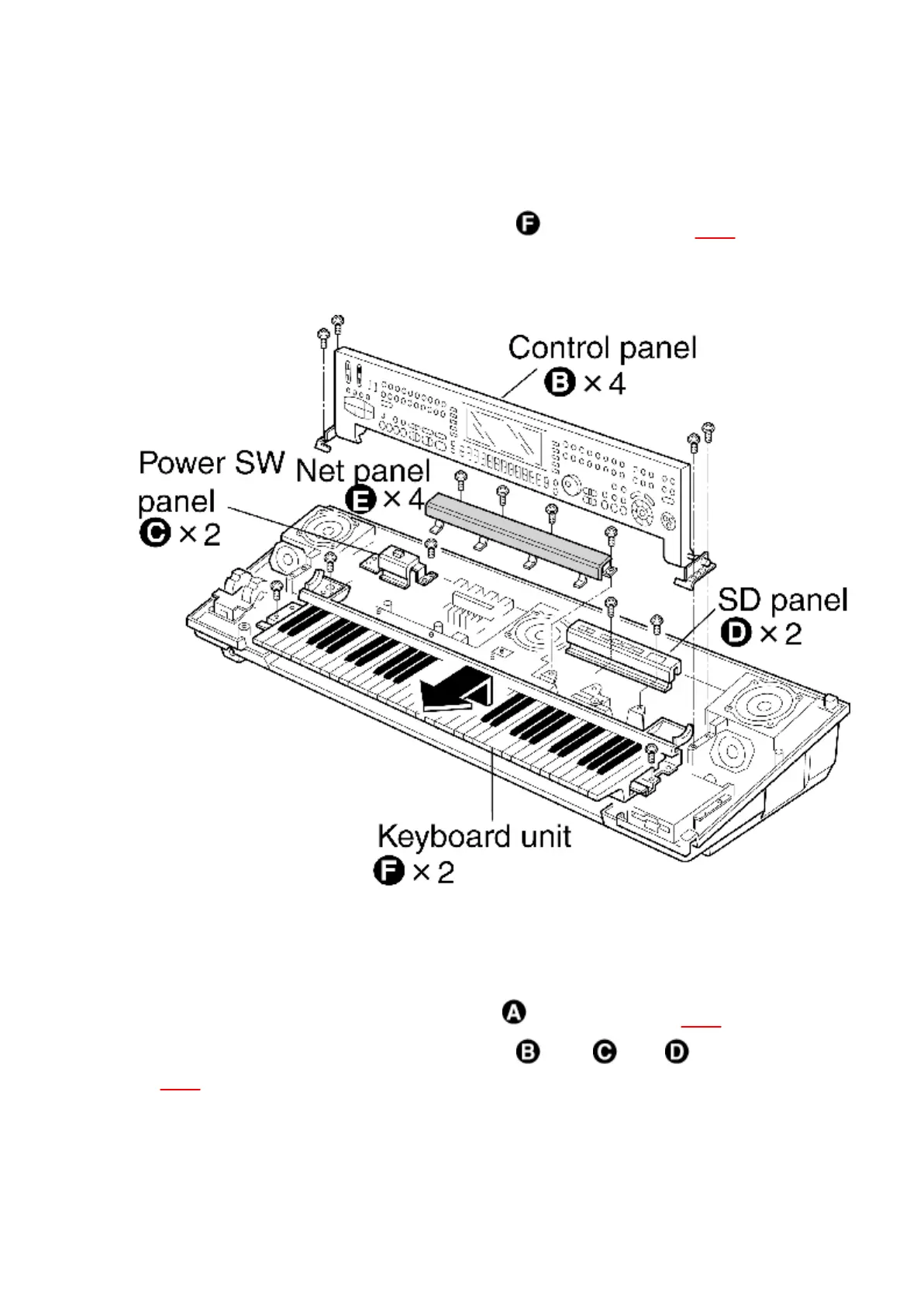

- Remove the keyboard unit holding screws ( 2pcs.) as shown in Fig.7 .
Fig.5
7.3. Removing the JACK and MAIN printed circuit boards
JACK P.C.B.
1. Remove the jack panel mounting screws ( 5pcs.) as shown in Fig.6 .
2. Remove the JACK P.C.B. mounting screws ( 3 pcs., 3pcs, 3pcs.)as shown in
Fig.6 .
Fig.6
14
