Technics SX-KN7000P

2. After the service diagnostic screen is displayed on the LCD, release the three keys.
(refer to Fig.21 )
3. Use the corresponding buttons below the “page select” display to select the
respective test.

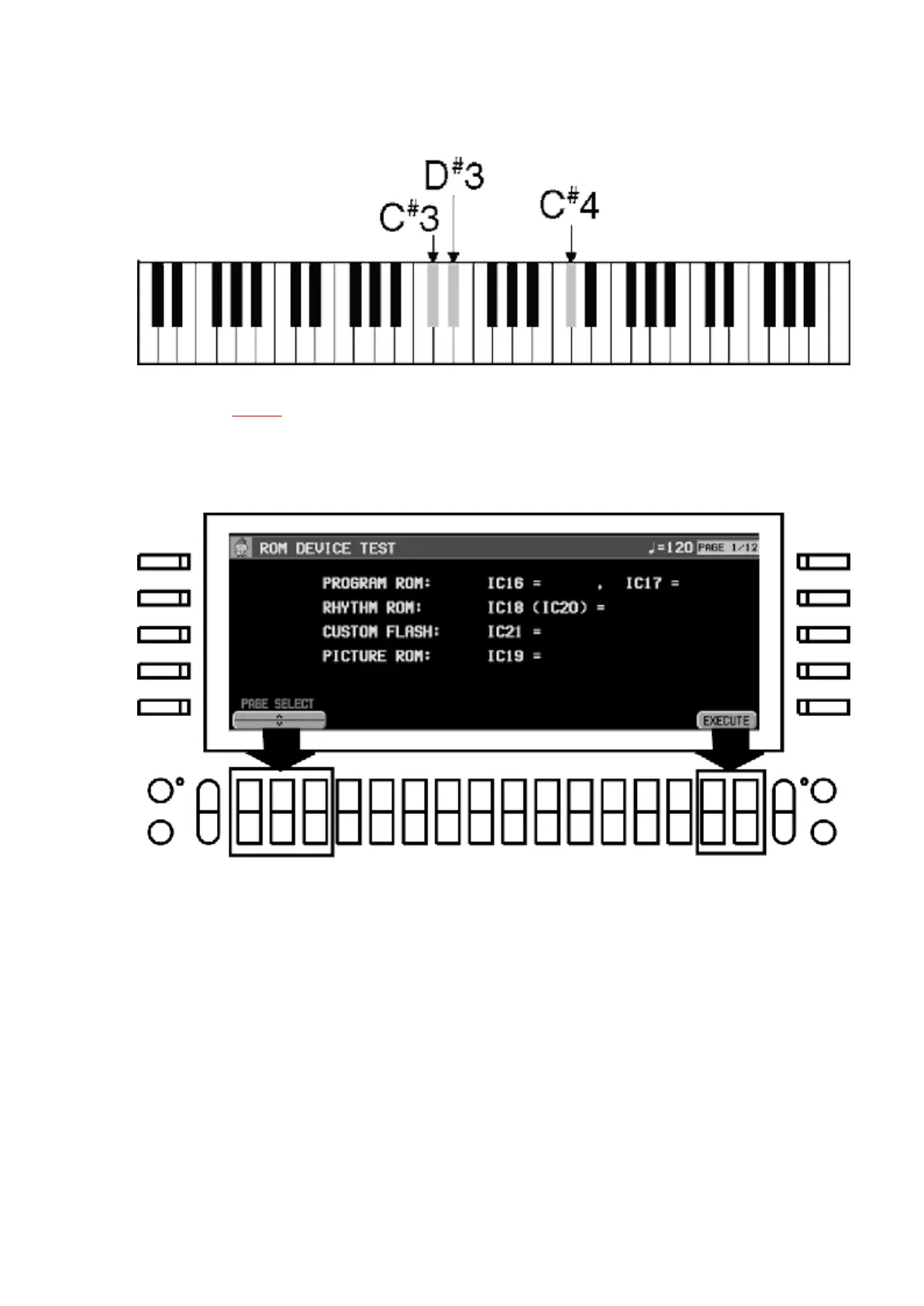

Fig.21
8.1. ROM device test
Fig.22
28
