PEDAL IN
Connect the cord from the included stand to this terminal.
AUX IN (input level 0.5 Vrms, 6 kW)
Other instruments such as a rhythm machine or sound
module can be connected to the piano so that the sound
is output from the piano. To receive monaural sound, con-
nect instruments to the R/MONO terminal.
LINE OUT (output level 1.5 Vrms, 600 W)
By plugging into a high-power amplifier, the sound can
be reproduced at high volume. (Use the R/MONO termi-
nal when outputting monaural sound. However, there are
some cases where the sound quality may deteriorate de-
pending on the sound.)
HEADPHONES (phones) 2
(Beneath the keyboard, on the left side)
For silent practice headphones may be used. When
plugged in, the speaker system is automatically switched
off, and sound is heard only through the headphones.
R
L
LINE OUT
AUX IN
PEDAL IN
OUT IN
MIDI
R
L
/ MONO / MONO

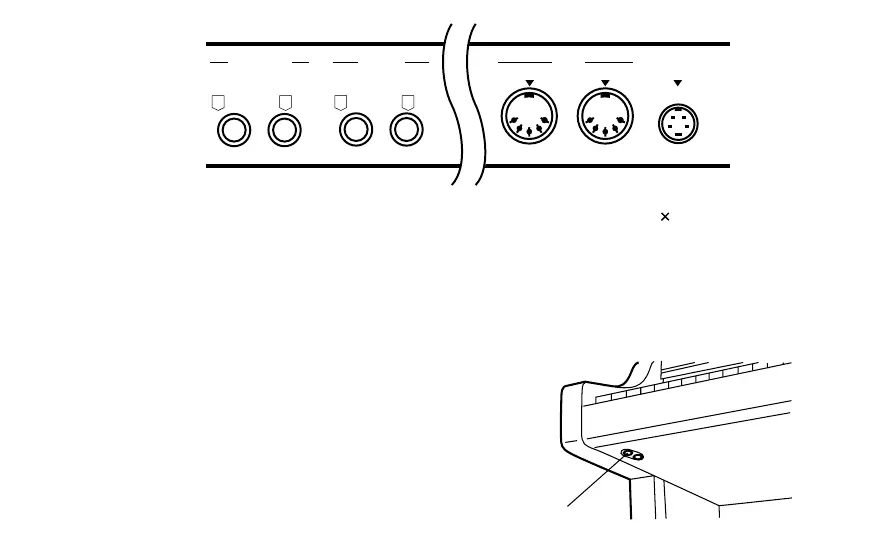

(On the back of piano)
phones
