Technify Motors TAE 125-02-114 User Manual

AFM Supplement DA 40 D
Page 7-2
Issue 2
Revision -, Aug. 2015
7.9.6 COOLING SYSTEM
The cooling system of the TAE 125-02-114 installation consists
of 1 large and 1 small water-cooler. The engine oil is cooled
using an oil/water-heat exchanger as part of engine. A Cabin
Heat heat-exchanger is part of the liquid cooling system as well
as a gearbox oil heat-exchanger. The gearbox oil heat-
exchanger is part of the TAE 125-02-114 engine, but connected
to the aircraft liquid cooling system. Refer to Figure 7-1 for a
schematic.

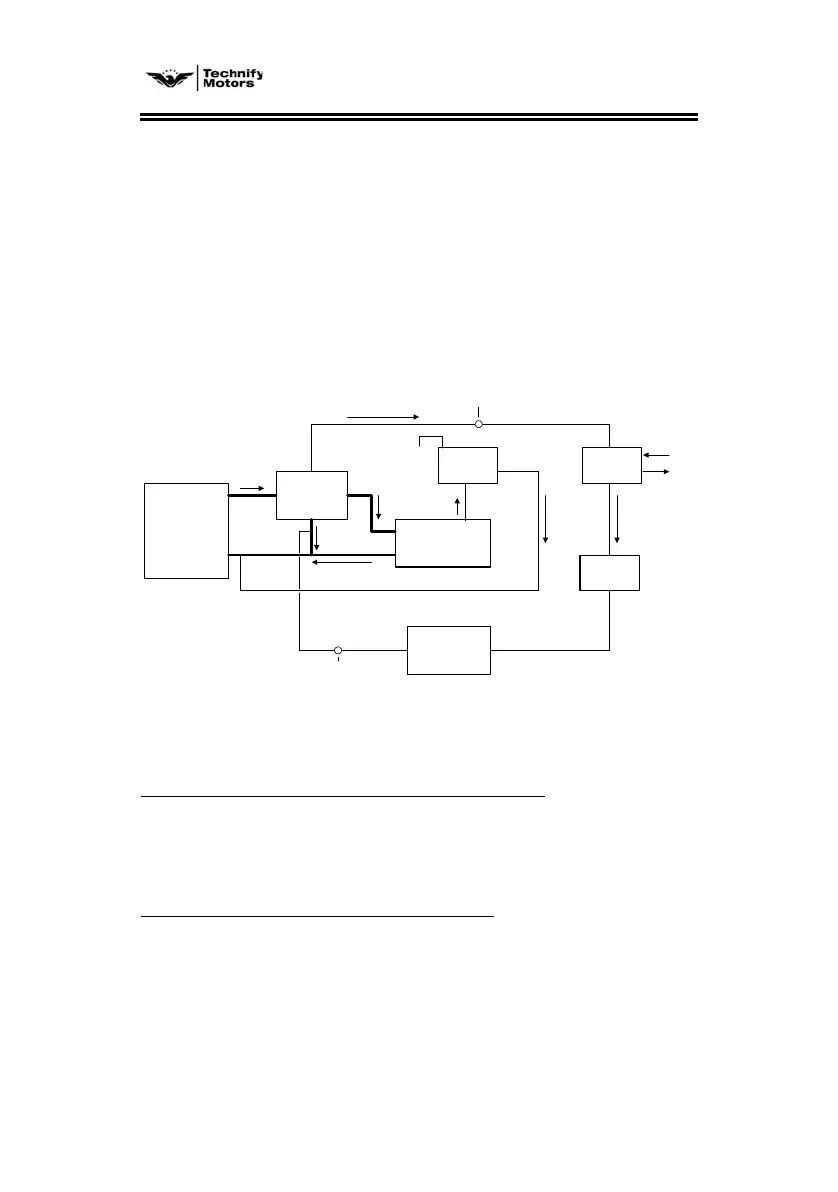

Figure 7-1 Liquid Cooling System
7.9.8 OIL SYSTEMS
Lubrication system (engine and turbocharger)
The engine oil is cooled using a oil/water heat exchange which
is part of the engine. There is no separate oil cooler as provided
in the unmodified engine installation.
Gearbox and propeller governor system
This oil system is independent of the engine lubrication system.
To cool the gearbox a heat exchanger is connected the liquid
cooling system.
Refer to Figure 7-1.
TAE 125-02-114
engine
Thermostat
Valve
Coolant Radiator
Expansion
Tank
Cabin Heat
Heat-Exchanger
Coolant
Radiator
Gear Oil
Cooler
Overflow line to
exterior
Bleed Screw
Bleed Screw
Bypass
Circuit
Main Circuit
Gearbox oil
