Technika BELLISSIMO - Cabinet Details for Bottom Hinged Doors

Installation
23
400*
590
547
594
589
543
25
596
590
90*
* V
entilation: provide cut out at
rear for wall oven installation only
90mm x 400mm
Ventilation cutout in
cavity base
380mm x 380mm
in all cases
596
V
entilation cutout in
cavity base 380mm x 380mm
in all cases
25
A
A
25
A: Fixing Cleet
590mm(H) x 100mm(W)
x 22mm(D)
T
echnika recommends that our
600mm electric ovens be installed
as flush fit only
568
min
568
min
IMPORTANT: Installation, assembly and electrical
connections must be carried out by authorised personnel.

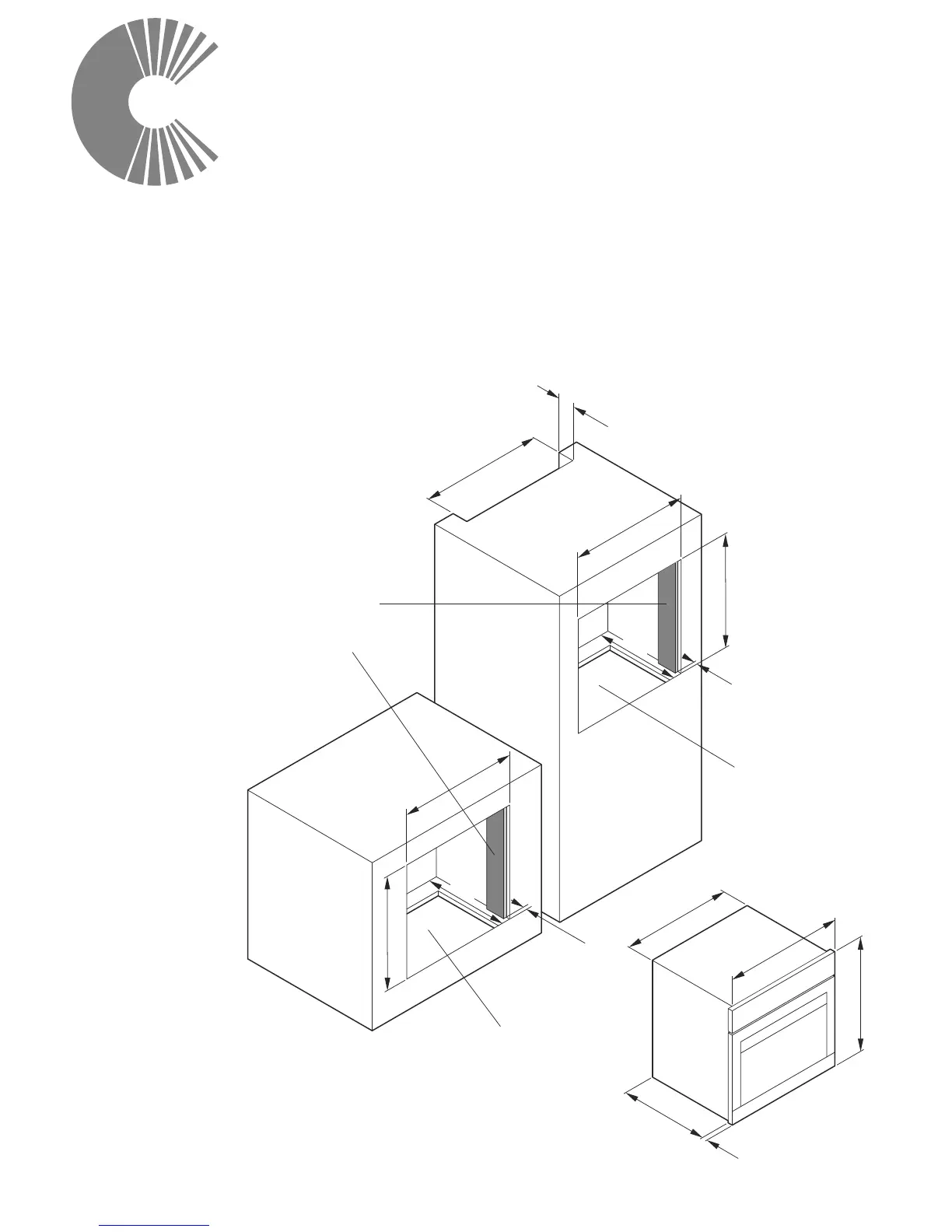

Cabinet details (models with bottom hinged doors)
In order to ensure that the built-in appliance functions properly, the
cabinet containing it must be appropriate. The figure below gives
the dimensions of the cut-out for installation under the counter or
in a wall cabinet unit for models with bottom hinged doors.
