Technika BELLISSIMO User Manual

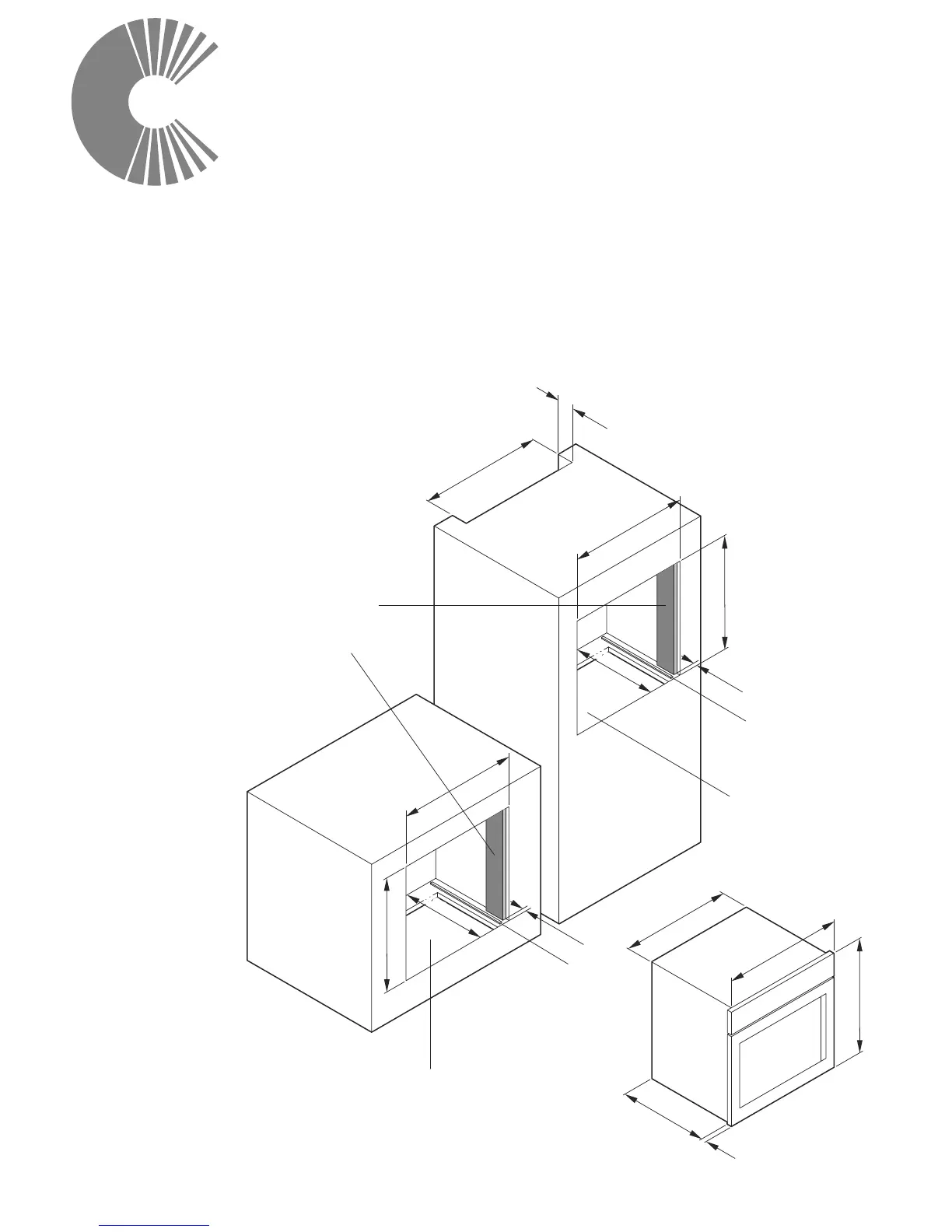

Installation
22
400*
596
596
596
90*
* V
entilation: provide cut out at
rear for wall oven installation
only 90mm x 400mm
Ventilation cutout in
cavity base
380mm x 380mm
in all cases
596
Ventilation cutout in
cavity base 380mm x 380mm
in all cases
Packer used for
levelling (if required)
4 to 6mm thick
Packer used for
levelling (if required)
4 to 6mm thick
T
echnika recommends that
our 600mm electric ovens be
installed as flush fit only
25
A
25
A
A: Fixing Cleet
596mm(H) x 100mm(W)
x 22mm(D)
547
594
594
543
25
IMPORTANT: Installation, assembly and electrical
connections must be carried out by authorised personnel.
Cabinet details (models with side hinged doors)
In order to ensure that the built-in appliance functions properly, the
cabinet containing it must be appropriate. The figure below gives
the dimensions of the cut-out for installation under the counter or
in a wall cabinet unit for models with side hinged doors.
568
min
568
min

Technika BELLISSIMO Specifications

General

Fuel Type	Electric
Thermostat range	50 - 250°C
Voltage	220-240 V
Frequency	50 Hz
Lighting	Yes
Door glass	Double glass
Dimensions (HxWxD)	595 x 595 mm
