Technika KR07 User Manual

CONNECTING POWER
Plug the DC power jack of the adapter into the DC socket in the DPF.
Plug the power adapter into the mains point. Switch on at the mains.
SwitchtheON/OFFswitchontheframetoON.
• Youcanleavethepowerswitchon,andusethe button on the
handset to turn the frame on or set it to Standby mode.
• Toturnothepowerocompletely,slidetheswitchtoOFF.

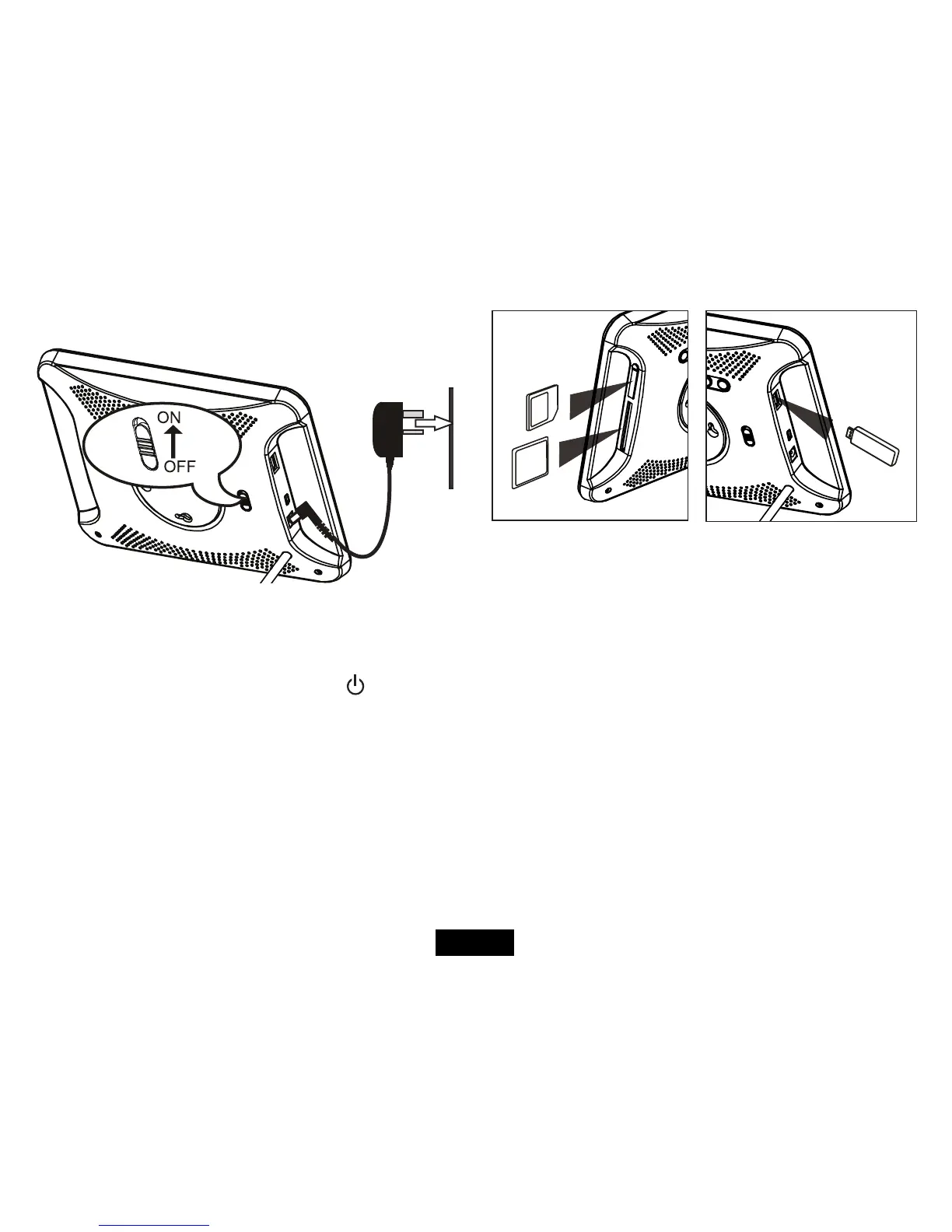

INSERTING MEDIA (Refer to the drawings opposite).
Insert the SD/MMC/MS/ card into the 3-in-1 card slot with the
metal contacts facing the display.
Insert the CF card with the front label facing away from the screen.
When inserting a card: Align the card carefully with the slot and
gently push it all the way in.
• NEVERforceamemorycardintotheslot.
• Toremoveacard,pullitoutslowly.
Insert the USB drive as shown in the above drawing.
Notes:
• If only one device (one card or USB drive) is connected before
the frame is switched on: when the Frame is switched on , connect-
ing a second device has no eect.
• If a USB drive and either a SD card or a CF card are connected:
when the Frame is powered up the USB drive will be selected.
• If a USB drive, a CF card and a SD card are all connected: when
the Frame is powered up the CF card will be selected.
USB DRIVE
SD/MMC/MS
CARDS
CF CARD
Page 8

Technika KR07 Specifications

Power

power supply	DC 9V
power adaptor	DC 9V1.5A/AC100-240V

Display

screen resolution	800x480 pixels
picture format	JPEG, ≤ 8000*8000 pxl

Weight and Dimensions

weight	451 grams
