PG 28
IMPORTANT: Installation, assembly and electrical connections must be carried out by
authorised personnel.
Cabinet details

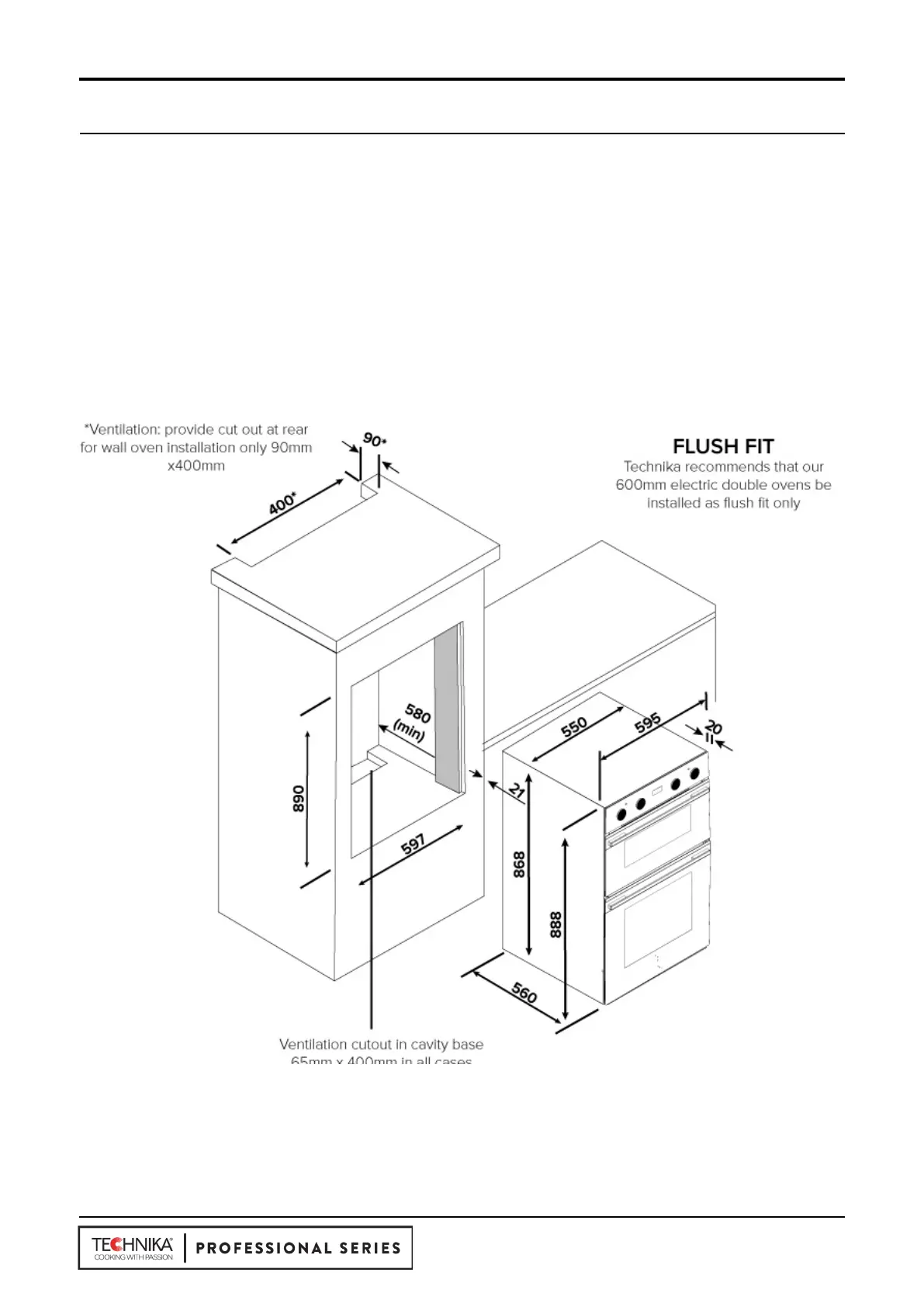

In order to ensure that the built-in appliance functions properly, the cabinet containing it must
be appropriate. The figure below gives the dimensions of the cut-out for installation under the
counter or in a wall cabinet unit.
INSTALLATIONS
The panels of the adjacent cabinets must be made of heatresistant material. In particular, cabinets
with a veneer exterior must be assembled with glues which can withstand temperatures of up
to 100°C. In compliance with the current safety standards, contact with the electrical parts of the
oven must not be possible once it has been installed. The oven must be secured by 4 screws to
the cabinet.
