Technische Alternative ESR 31 Series

13

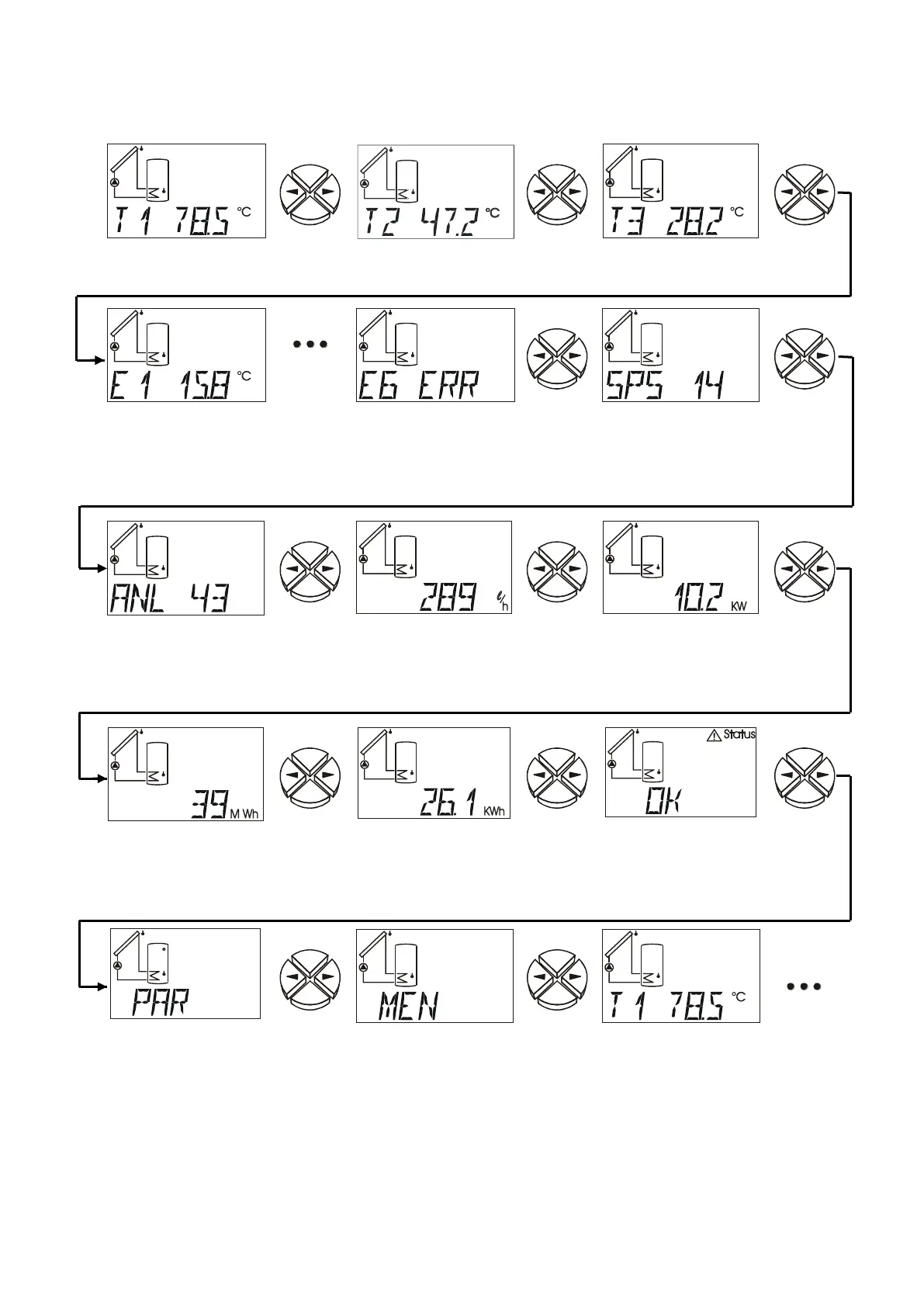

The main level
Temperature
Sensor 1
Temperature
Sensor 2
Temperature
Sensor 3
External value 1
Only displayed if
external DL is
activated
External value 6
Only displayed if
external DL is
activated
Speed stage
ESR31-D only
and active PSC
Analogue stage
only if control out-
put activated
Volume flow
only displayed if
heat counter is
activated
Current power
only displayed if
heat counter is
activated
MWh only dis-
played if heat coun-
ter is activated
kWh only displayed
if heat counter is
activated
Status display
"OK" only displays
if active
function control
Parameter
menu PAR
Menu MEN
Temperature
Sensor 1
