The following settings are only possible in 0-10V and PWM modes.
Warning! The values in the following description are by way of example only; they must, in
all cases, be matched to the system!

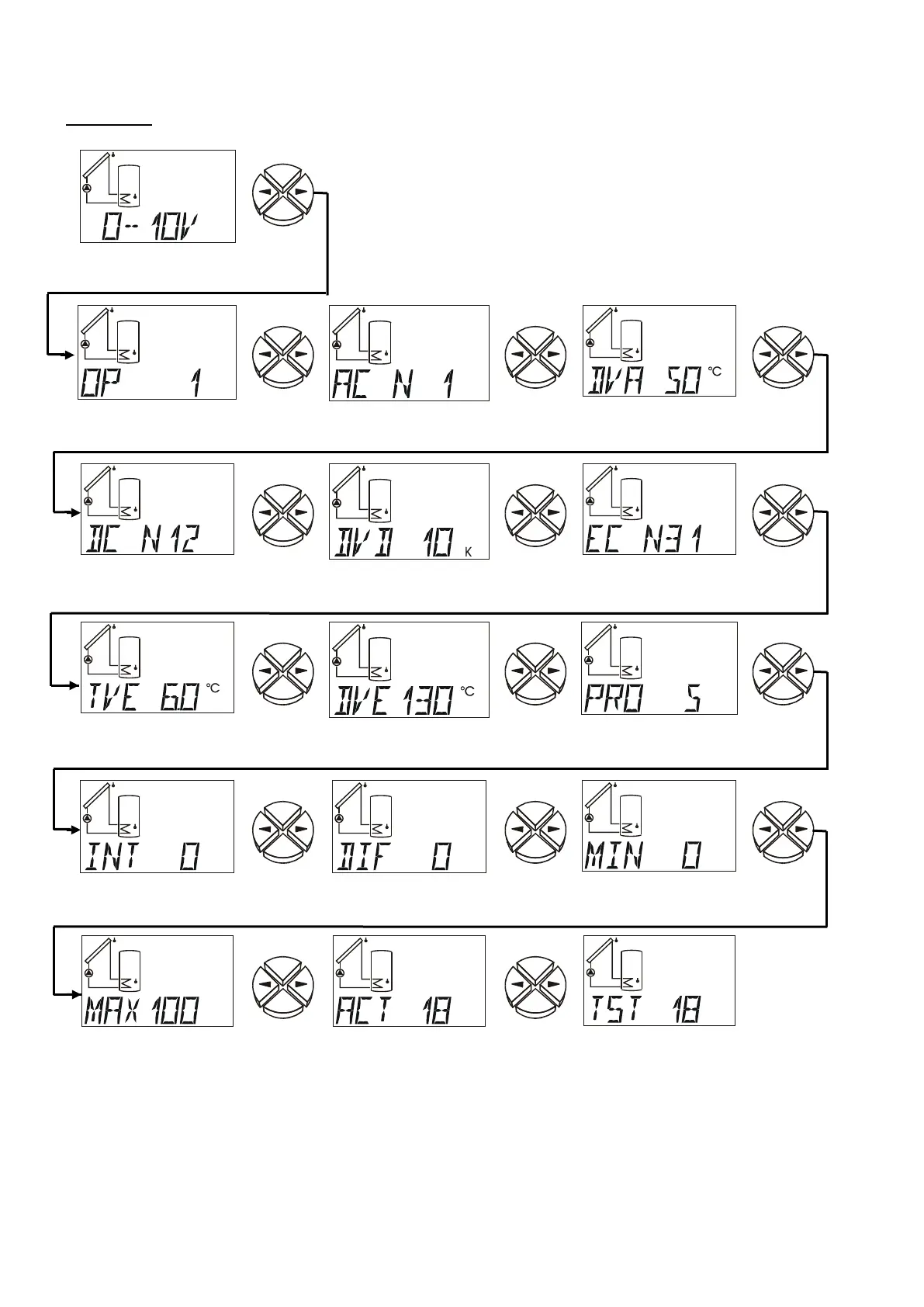

Control output
Output for release
Absolute value
control
Desired value for
abs. value control
Differential control
system
Desired value for
Differential control
Event
control system
Desired value of
the event
Desired value of the
control system
Proportional part
Integral part
Differential part
Minimum
Analogue stage
Maximum
Analogue stage
Current
Analogue stage
Setting of test
analogue stage
In this menu the parameters for the control output are specified. As analogue output it can
put out a voltage of 0 to10V in 0.1V increments. As PWM a digital signal with a frequency of
500 Hz (level approx.10 V) and a variable duty cycle from 0 to 100% is created.
The behaviour of the control circuit is equal to that of the pump speed control (PSC) how-
ever instead of 30 (PSC) a maximum of 100 increments is available.
The description of the parameter values follows therefore in the menu "PSC".
