Technische Alternative ESR31-D User Manual

22

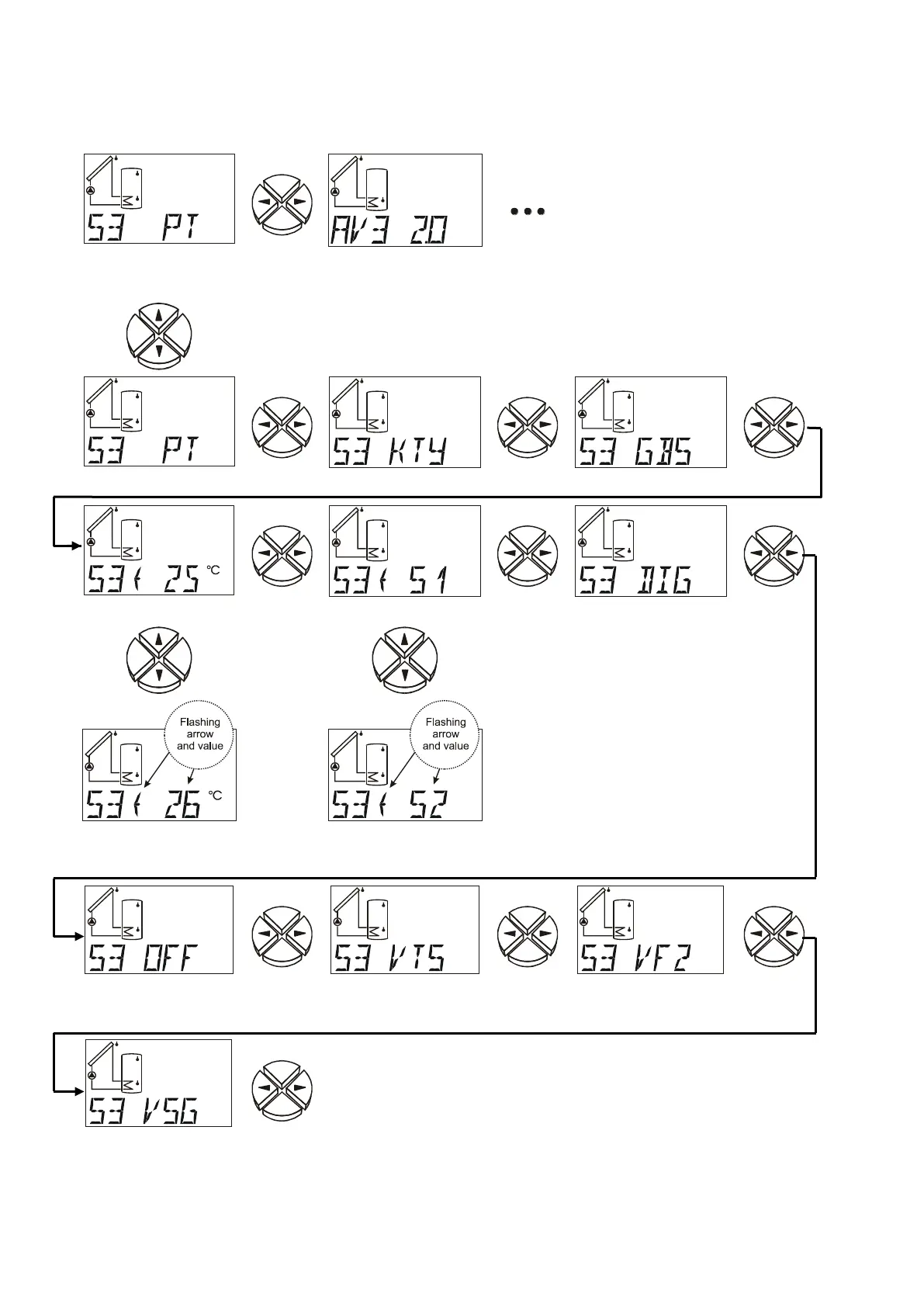

Sensor settings
Sensor S3 has been used as example for the sensor settings, since this sensor has the most
setting options.
Sensor (3x)
Determination of
average
PT1000
KTY
Radiation sensor
Fixed value
Transfer of values
Digital input
Fixed value entry
setting
Transfer of values
setting
Sensor OFF
Vortex sensor
temperature
Vortex sensor
Volume 2-40l/min
Connection of
sensors for the
flow measurement
(VF2, VSG) is only
possible to input 3.
Vol. flow encoder
(pulse encoder)
