14 TECHNICAL SPECIFICATIONS
x Power supply: 24 Vdc r 20%.
x Consumption: 10W max (with both TX and RX connected).
x Emission: infrared Leds.
x Reception: Photodiode.
x Number of emitters/receivers: according to model (see table in section
6.4).
x Wavelength of emitters: 950 nm.
x RX indicators: - 2 green leds
- 2 yellow leds
- 1 red led
x TX indicators: - 1 green led
- 1 yellow led
x Response time: according to model (see table in section 6.4).
x Resolution: 35 mm for SBx models.
14 mm for SBx-HR.
Variable for SBx-K models according to amount of rays
and height protected.
x Operating temperature: -10 to + 55 °C.
x Humidity: 15% to 95% (non condensing).
x Safety outputs: Two 500mA PNP outputs protected against short
circuit.
x Operating distance: SBx: 0.2-15m SBxHR 0.2-6m SBx-K 0.5-40 m
x External controls: start/test/override button, muting inputs
x RX connector: M12 8-pin + insulation
x TX connector: M12 5-pin + insulation
x Metal housing (aluminium) painted yellow (Ral 1303 F14).
x Grade of protection: IP 65.
x Muting indicator: LMS
SB series User’s manual
34

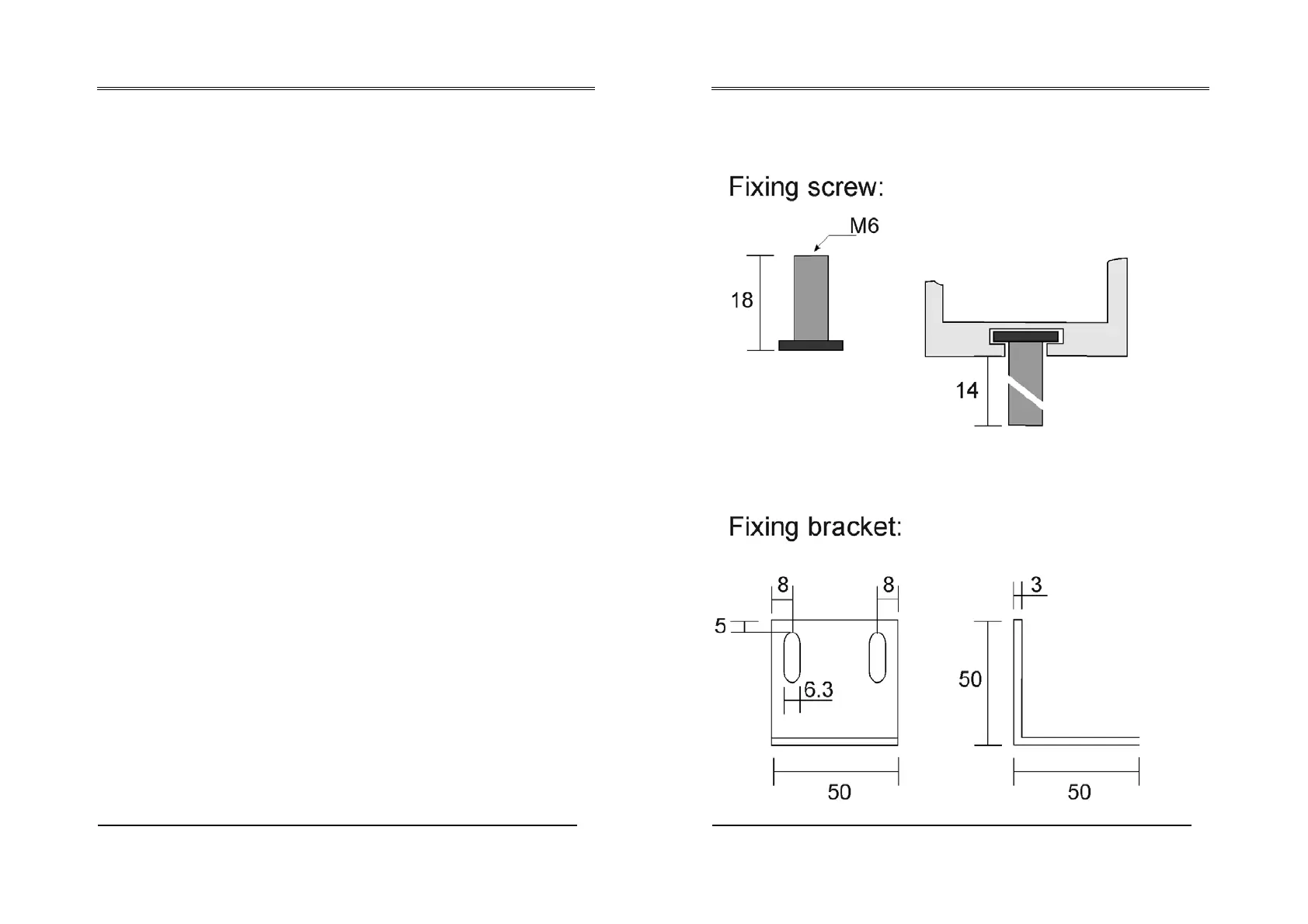

15 DIMENSIONS
All dimensions are shown in millimeters
