Replacing the cables
Side 4, high pulley
The cable is fixed to connector (C) with three screws (B), which must be
loosened, and with adjuster (E), from which it has to be withdrawn.
- Remove any accessories;
- raise rubber gaiter (A);
- unscrew the screws (B) and pull the cable out of connector (C);
- loosen lock nut (D) and unscrew adjuster (E);
- pull the cable out from the weight stack side;

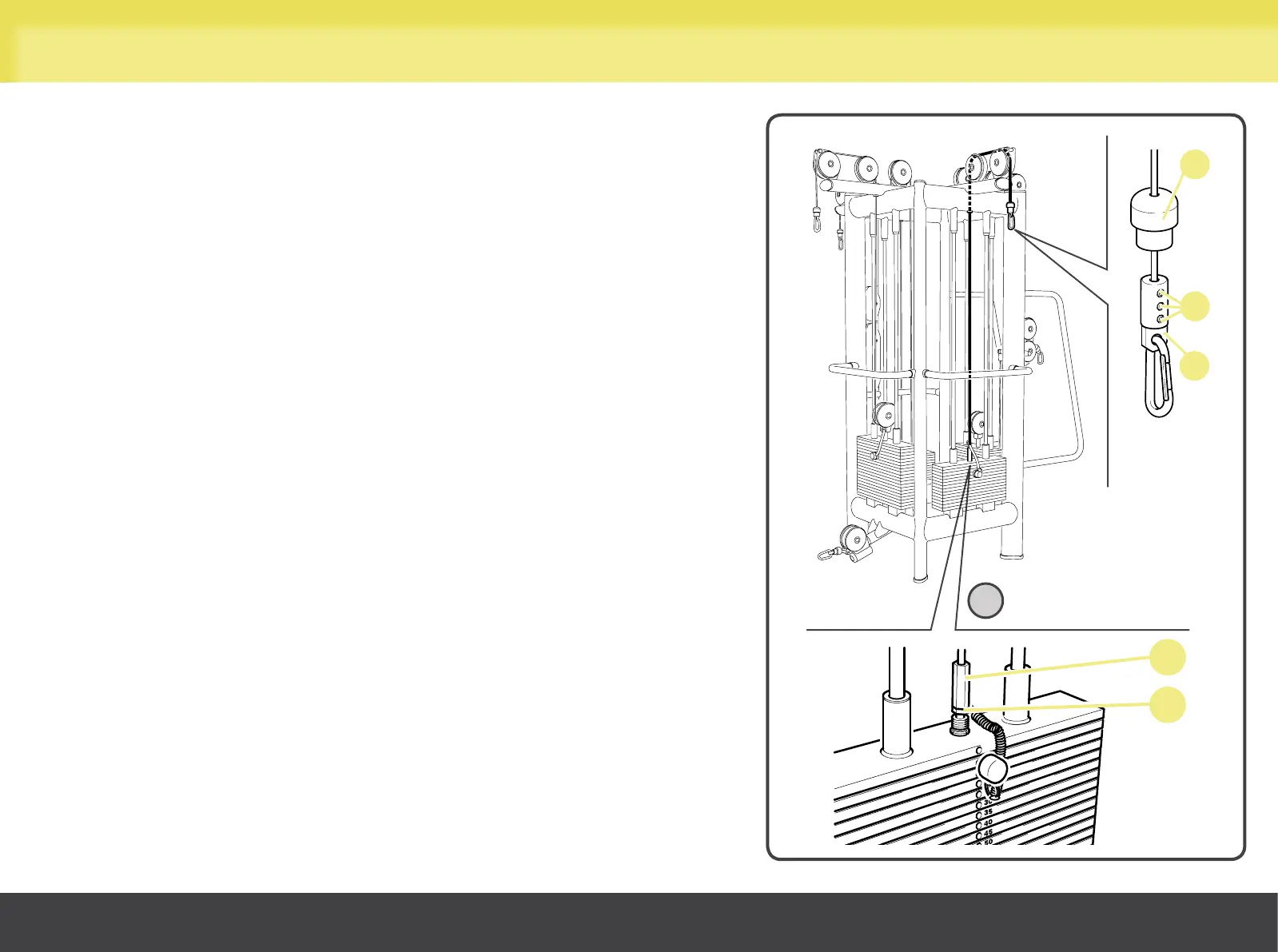

- insert the new cable from the adjuster side (ensuring that it follows the
same route as the original cable, as shown in the illustration); tighten
the adjuster;
- insert rubber gaiter (A) and connector (C); then tighten the screws (B);
- lower the rubber gaiter (A).
