STEP EXCITE: Service & maintenance manual - rev. 1.4
Page 8.4
8.4. ALIGN THE CHAIN CONNECTING THE PRIMARY AND
SECONDARY SHAFTS

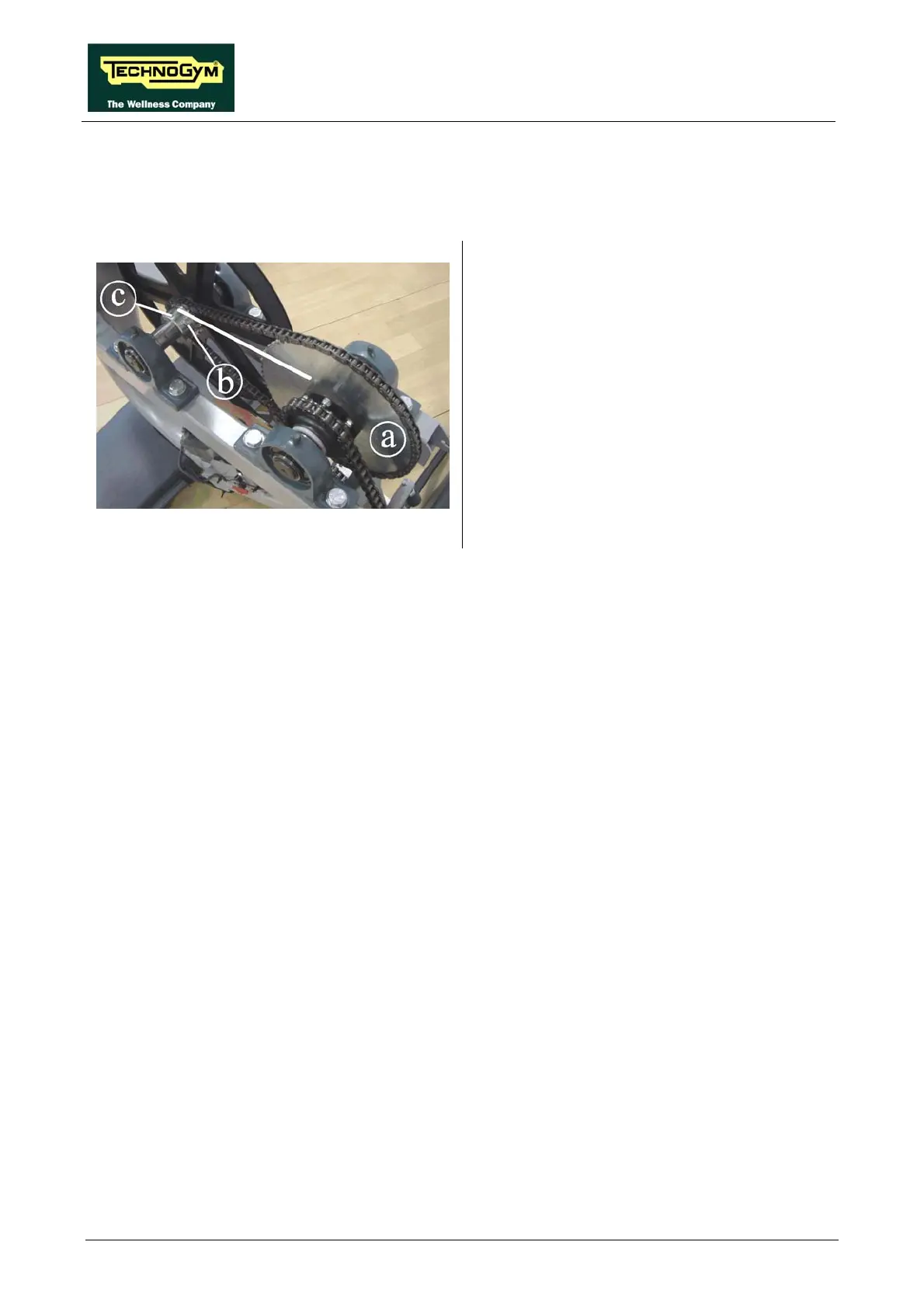

Figure 8.4-1
Carry out the operations described in paragraph
7.7. “Disassembling the guards”.
1. Back off the screw b, using a 5-mm hex
wrench.
2. Align the sprocket c with the sprocket a
using a straight reference rod.
3. Lock the screws b back down.
