Standard connections - Port 4:
Universal eight signal connection (continued)

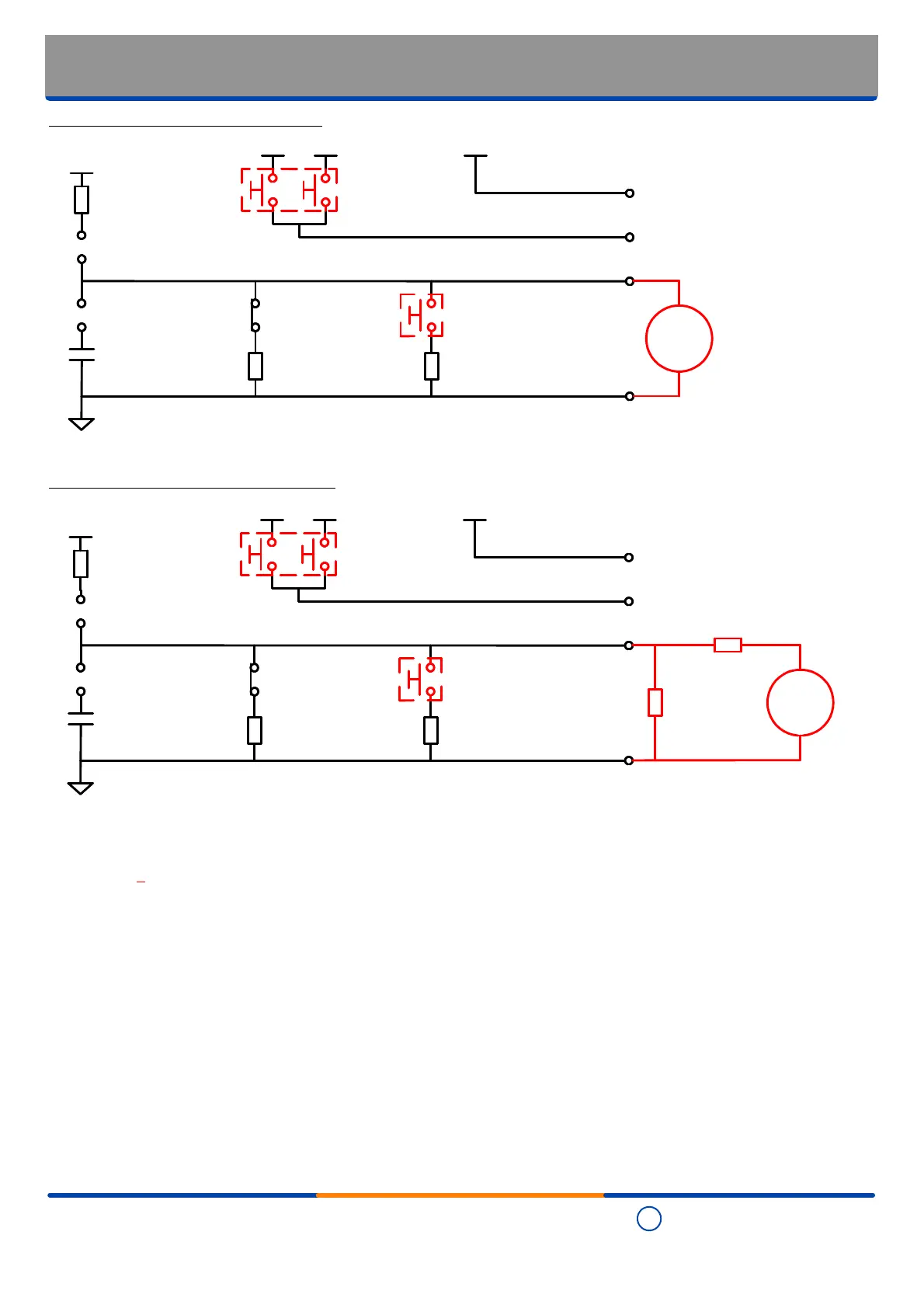

Input = Analogue, voltage (0 to 2.5Vdc):
Input = Analogue, voltage (0 to > 2.5Vdc):
Calculation of R1 and R2 for analogue voltage inputs > 2.5Vdc:
Rule 1: R2 < 330R (i.e. 0.1% of 330K)
Rule 2: R1 = R2(2.5V / Maximum applied voltage) - R2
Example 1, for an input voltage of 0 to 18V:
Applying Rule 1, let R2 = 330R
Applying Rule 2, R1 = 330(2.5 / 18) - 330 = 2k5, 0.1% precision (2k1 is the closest precision value)
Applying these rules may take some practice.
Example 2, for an input voltage of 0 to 10V:
Applying Rule 1, let R2 = 330R
Applying Rule 2, R1 = 1k3 0.1% precision
•
•
•
•
•
•
•
0 to 2.5Vdc
+V
GPi1 to GPi8
GND (0V)
+3V3
Output 1 or 2 (12V or 3V3)
VO+ (3V3)
+3V3+12V
V
+V
GPi1 to GPi8
GND (0V)
Internal pull-up
resistor(s) disabled
in configuration file
Internal debounce
capacitor(s) disabled
in configuration file
Internal pull-down
resistor(s) enabled
in configuration file
330kΩ
Internal JP2-x manual
'DIP' switch = OFF
Internal 100Ω ± 0.1%
precision resistor
disabled
+3V3
Output 1 or 2 (12V or 3V3)
VO+ (3V3)
+3V3
+12V
Internal JP5
manual 'DIP'
switch = OFF
V
+
R1 - precision
resistor ( ± 0.1%)
R2 -
precision
resistor
( ± 0.1%)
0 to >
2.5Vdc
Internal pull-up
resistor(s) disabled
in configuration file
Internal debounce
capacitor(s) disabled
in configuration file
Internal pull-down
resistor(s) enabled
in configuration file
330kΩ
Internal JP5
manual 'DIP'
switch = OFF
Internal JP2-x manual
'DIP' switch = OFF
Internal 100Ω ± 0.1%
precision resistor
disabled
